Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Zhenhua
-
Dimension(L*W*H):
-
6 meters lenght
-
Weight:
-
1500 KG
-
Name:
-
Automatic Carton Box Stacker For Printing slotting die cutter
-
Machine speed:
-
60-250 sheet/min
-
Max paperboard Legth:
-
2400mm
-
Max Paper width:
-
1200 1400 1600 1800mm
-
Max paperboard height:
-
1600 mm
-
Usage:
-
combinated with printer slotter die cutter
-
Function:
-
Automatic Corrugated Paper board Carton box sheet collector
-
Diver type:
-
Motor or hydraulic optional
-
Conveyor belt Lift Type:
-
pallet Self Lift
-
Applicable Product:
-
Printer slotter die cutter
Quick Details
-
Application:
-
Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles, Cigarettes, Tobacco
-
Packaging Material:
-
Plastic, Paper, Metal
-
Voltage:
-
220-440V
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Zhenhua
-
Dimension(L*W*H):
-
6 meters lenght
-
Weight:
-
1500 KG
-
Name:
-
Automatic Carton Box Stacker For Printing slotting die cutter
-
Machine speed:
-
60-250 sheet/min
-
Max paperboard Legth:
-
2400mm
-
Max Paper width:
-
1200 1400 1600 1800mm
-
Max paperboard height:
-
1600 mm
-
Usage:
-
combinated with printer slotter die cutter
-
Function:
-
Automatic Corrugated Paper board Carton box sheet collector
-
Diver type:
-
Motor or hydraulic optional
-
Conveyor belt Lift Type:
-
pallet Self Lift
-
Applicable Product:
-
Printer slotter die cutter

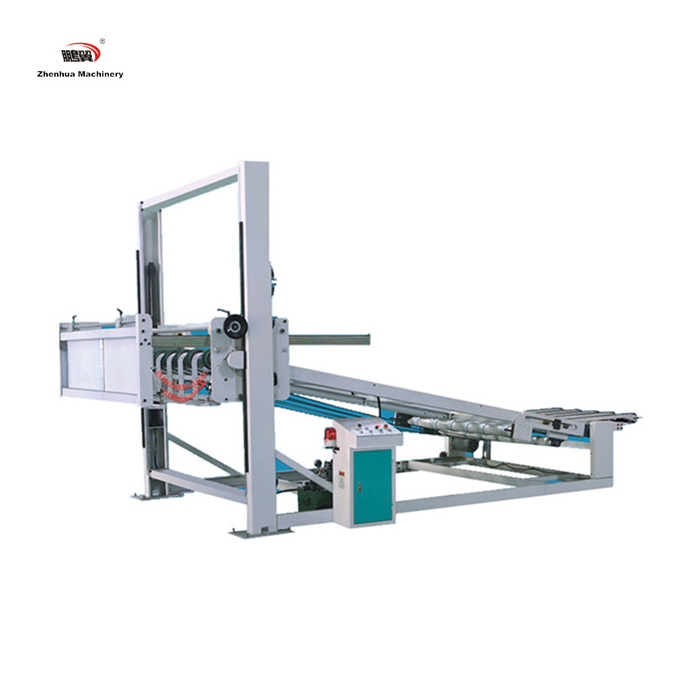

Automatic Corrugated Paper board Carton box sheet stacker machine
3200 type Corrugated Paper board Carton box sheet Vabritor stacker machine
1, Paperboard collection arm
1) Operation by manual or automatic.
2) For belt of paperboard collection arm, the tightness is saperated adjustment,
3) The speed of stacking paper is adjusted in a cetain range.
2, The bed platform lift
1) Strong chain drives
2) The stacking height is 1600mm
3) The drive motor of bed platform lifting is with brake function, it can make the bed flatform staying in fixed position and not fall.
3, Paper collection board
1) The paperboard collection board is with pneumatic action, when the cardboard is piled up to the predetermined height, the paper tray automatically sticks out and holds the cardboard.
2) The backboard position is adjusted manually.
3) The surface with wrinkle belt, to prevent the cardboard slide.
It is used for flexo printer slotter die cutter machine.
