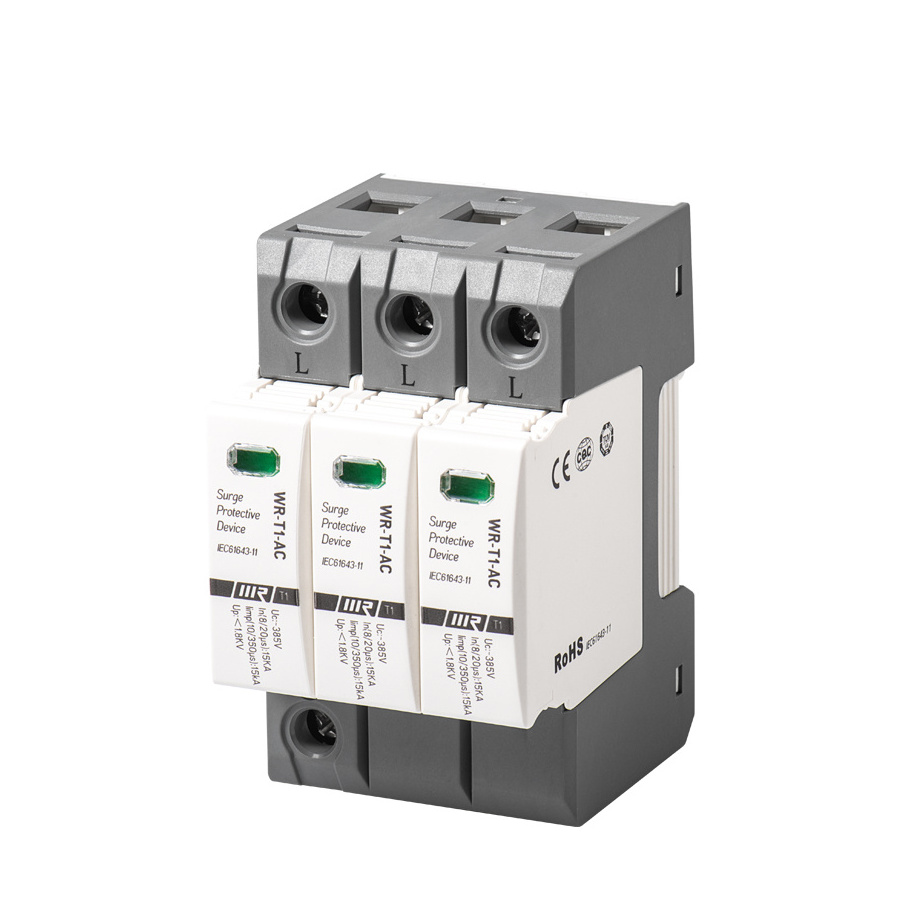

Designed according to IEC 61643-1/GB 18802.1
Development of MOV technology by ourselves
Suitable for almost all network configurations
Din rail mountable (35 mm)
Applied in PSD Class I (ClassB) for various power supply systems
Consistent pluggability(even for N/PE spark gap)
Thermal disconnect device for each individual connector
Optical, mechanical status indication for the individual arresters
With or without floating remote indication contact
- Product Details
- {{item.text}}
Quick Details
-
Max Discharge current:
-
15
-
Place of Origin:
-
Zhejiang, China, Zhejiang, China
-
Brand Name:
-
SENTE, SENTE
-
Model Number:
-
T1-AC
-
Nominal Discharge current:
-
15
-
Uc:
-
275V/385V/
-
Limp:
-
12.5KA
-
In:
-
15KA
-
Up:
-
1.8kV
-
Test standard:
-
IEC 61643-1/GB 18802.1
-
Degree of Protection:
-
IP20
-
Warranty:
-
2 Years
Quick Details
-
Type:
-
T1
-
Number of Pole:
-
3
-
Rated Voltage:
-
275V/385V
-
Max Discharge current:
-
15
-
Place of Origin:
-
Zhejiang, China, Zhejiang, China
-
Brand Name:
-
SENTE, SENTE
-
Model Number:
-
T1-AC
-
Nominal Discharge current:
-
15
-
Uc:
-
275V/385V/
-
Limp:
-
12.5KA
-
In:
-
15KA
-
Up:
-
1.8kV
-
Test standard:
-
IEC 61643-1/GB 18802.1
-
Degree of Protection:
-
IP20
-
Warranty:
-
2 Years
Solar System SPD
Certifications
Product Description
|
Rated voltage(max.continuous a.c.voltage)
|
Uc
|
275V or 385V
|
|
Lightning impulse current(10/350)
|
Imp
|
12.5kA
|
|
Nominal discharge current(8/20μs)
|
ln
|
15kA
|
|
Voltage protection level
|
Up
|
≤1.8kV
|
|
Follow current extinguishing capability at Uc
|
If
|
32A fuse will not be triggered at 2kArms 255V
|
|
Response Time
|
tA
|
≤100ns
|
|
Max. backup fuse(L)
|
|
200A gL/Gg
|
|
Max. backup fuse(L-L')
|
|
125A gL/Gg
|
|
TOV voltage
|
|
355V/5sec
|
|
Operating Temperature range(parallel wiring)
|
Tup
|
-40℃...+80℃
|
|
Operating Temperature range(through wiring)
|
Tus
|
-40℃...+60℃
|
|
Cross-sectional area
|
|
35mm² solid/50mm² flexible
|
|
Mounting on
|
|
35mm DIN rail
|
|
Enclosure material
|
|
Purple (module)/light gray(base)thermoplastic,UL94-V0
|
|
Dimension
|
|
3mods
|
|
Test standards
|
|
IEC 61643-1; GB 18802.1; YD/T 1235.1
|
|
Certification
|
|
CE ROHS ISO9001 TUV
|
|
Type of remote signalling contact
|
|
Switching contact
|
|
Switching capacity a.c
|
|
250V/0.5A
|
|
Switching capacity d.c
|
|
250V/0.1A;125V/0.2A;75V/0.5A
|
|
Cross-sectional area for remote signalling contact
|
|
Max. 1.5mm² soild/flexible
|
We are factory
Metal Oxide Varistors(MOV)
The MOV (metal oxide varistor) is an essential component of a surge protector. SENTE produces it independently using methods such as the MOV Sintering Furnace and MOV Automatic Welding Lines.
We offer varistor chips for individual sale.
Independent production of accessories
All accessories are independently produced, including shell, copper parts and varistor chips.
Therefore, the quality and production cycle of each order can be fully guaranteed.
Own test laboratory
SENTE has testing equipment such as 10/350μs 40KA and 8/20μs 120KA Simulated lightning test equipment, High voltage TOV and low voltage TOV.
If necessary, we can provide the parameters of each test for customers' reference.
Automatic Production Line
SENTE has automatic production line, can control the production cycle and product quality of each batch of orders.
1. Spot Welding
2. Pour Glue
3. Product Testing
4. Laser or Pad Printing
5. Heat-Wrapping
6. Packing
Customer case
Product packaging
FAQ
Q: Are you factory or trade company?
A: We are a factory that specializes in providing OEM and ODM services based on your requirements.
Q: What types of surge protectors do you offer?
A: We produce DC and AC SPD. Currently, we offer two types of DC SPDs: T1T2 and T2. The T1T2 type is suitable for the main distribution box of the PV system, while the T2 type is recommended for the distribution box of the home solar system.
Q: Which certification or standard do you have?
A: We have CE and RoHS TUV ISO90001 and related test reports that conform to IEC 61643-11 and national standard GB/T18802.1.
Q: How to control product quality?
A: We use high-quality materials from the chip to the copper part for all our accessories. automatic production process and each step is carefully monitored to ensure quality. All products undergo machine testing to guarantee timely delivery and top-notch quality.
Q: About the MOV/varistor
A: We offer the option to purchase the chip separately, allowing you to select a MOV with various currents and voltages.
Q: What's the payment term?
A: We accept T/T, L/C, D/P, WEST UNION, PAYPAL, CASH.
