Quick Details
-
Warranty:
-
5years
-
Brand Name:
-
Anern
-
Model Number:
-
AN-MONO-500W
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
2148*1020*35mm
-
Power:
-
400w 450w 500w 550w
-
Out Put Cable:
-
4mm2
-
Glass Size:
-
2158*1080*35mm
-
Net Weight:
-
25.6kg
-
Max Power Voltage:
-
41.18V
-
Max Power Curren:
-
12.82A
-
Open Circuit Voltage:
-
49.42V
-
Operating Temp:
-
-45°C+80°C
Quick Details
-
Cell size:
-
2148*1020*35
-
Type:
-
PERC, Half Cell, Bifacial, All Black, HJT, N-TYPE, TOPCON, BIPV, Overlapping
-
Panel Efficiency:
-
98%
-
Warranty:
-
5years
-
Brand Name:
-
Anern
-
Model Number:
-
AN-MONO-500W
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
2148*1020*35mm
-
Power:
-
400w 450w 500w 550w
-
Out Put Cable:
-
4mm2
-
Glass Size:
-
2158*1080*35mm
-
Net Weight:
-
25.6kg
-
Max Power Voltage:
-
41.18V
-
Max Power Curren:
-
12.82A
-
Open Circuit Voltage:
-
49.42V
-
Operating Temp:
-
-45°C+80°C
Products Description

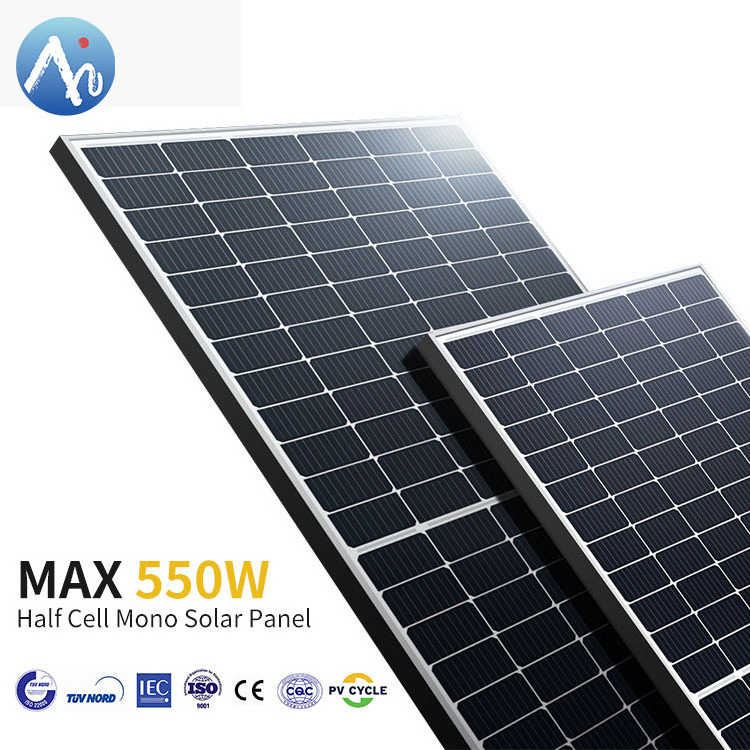

Half Cut Cell Monocrystalline PERC Solar Panel
The photoelectric conversion efficiency of half cut cell monocrystalline silicon perc solar panels is about 19%, and the highest is 21%. This is the highest photoelectric conversion efficiency of all types of solar panels. Monocrystalline perc half cut solar modules are designed for commercial and solar farm grid-tied applications.
|
Item No.
|
AN-HMSP-550W
|
AN-HMSP-450W
|
AN-HMSP-400W
|
|
PM(w)
|
550W
|
450W
|
400W
|
|
Maximum Power Voltage
|
41.96V
|
41.3V
|
40.1V
|
|
Maximum Power Current
|
13.11A
|
10.9A
|
10.1A
|
|
Open Circuit Voltage
|
49.9V
|
49.15V
|
47.72V
|
|
Short Circuit Current
|
14A
|
11.77A
|
10.91A
|
|
Size
|
2278*1134*35mm
|
2094*1038*35mm
|
2008*1002*35mm
|
|
Weight
|
28.6kg
|
23.5kg
|
22.5kg
|
Product Details
The half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading. More panels can be connected in one string, effectively reduce PV cable and number of inverters, boosting the lifetime power yield of the solar system.
Project
Packing & Delivery
Anern has strong supply capacity with a fast delivery time and
the shortest delivery time is 7 days.
Buyer Reviews
One-stop new energy solution provider！we are the one of the most professional solar module manufacturers and whole solar power system supplier.
Information from our customers, if you want to know more information, please feel free to contact us, thank you!
Information from our customers, if you want to know more information, please feel free to contact us, thank you!
Anern Factory
Certifications
Anern products have passed international testing and certification reports including UL, TUV，CE, FCC，ROHS, etc which is sure to meet the import needs of different countries. So far, Anern LED and solar series of products have put into use in many important government projects around the world and won high praise from our customers.
