- Product Details
- {{item.text}}
Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KAIDONG
-
Dimension(L*W*H):
-
1800*1200*1100mm
-
Weight (KG):
-
800 kg
-
Product Name:
-
brick making machine
-
Moulding Period:
-
40-50 Seconds
-
Total Weight:
-
800KGs
-
Worker:
-
1 Person to Operate the Machine
-
Voltage:
-
220/380/415/440V(Customized)
-
Color:
-
Customized
-
Working Method:
-
Vibration
-
Mixer Model:
-
JQ350 or No Need
-
Certification:
-
CE/S G S/ISO9001
-
Brick type:
-
Solid Brick
Quick Details
-
Type:
-
Hollow Block Making Machine
-
Brick Raw Material:
-
Concrete, Cement, Sand, Crushed Stone, Fly Ash
-
Production Capacity (Pieces/8 hours):
-
2500 pcs/8hours, 3400 pcs/8hours, 1920 pcs/8hours, 1500 pcs/8hours, 1280 pcs/8hours, 3000 pcs/8hours, 12000 pcs/8hours, 1000 pcs/8hours, 800 pcs/8hours
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KAIDONG
-
Dimension(L*W*H):
-
1800*1200*1100mm
-
Weight (KG):
-
800 kg
-
Product Name:
-
brick making machine
-
Moulding Period:
-
40-50 Seconds
-
Total Weight:
-
800KGs
-
Worker:
-
1 Person to Operate the Machine
-
Voltage:
-
220/380/415/440V(Customized)
-
Color:
-
Customized
-
Working Method:
-
Vibration
-
Mixer Model:
-
JQ350 or No Need
-
Certification:
-
CE/S G S/ISO9001
-
Brick type:
-
Solid Brick
QTM4-30B Movable Concrete Block Making Machine
240 Pieces/Hour for 400*200*200mm Hollow Block
FOB Qingdao Price: 2999~3499USD
QTM4-40D Movable Diesel Engine Concrete Block Making Machine
240-360 Pieces/Hour for 400*200*200mm Hollow Block
FOB Qingdao Price: 2999~3499USD
QTM4-30A Movable Concrete Block Making Machine
360-480 Pieces/Hour for 400*200*200mm Hollow Block
FOB Qingdao Price: 2999~3499USD
QTM6-24 Movable Concrete Block Making Machine
720-1080 Pieces/Hour for 400*200*200mm Hollow Block
FOB Qingdao Price: 8999~9499USD
QTM10-25 Movable Concrete Block Making Machine
1500-1800 Pieces/Hour for 400*200*200mm Hollow Block
FOB Qingdao Price: 13999~14999USD
Product Description

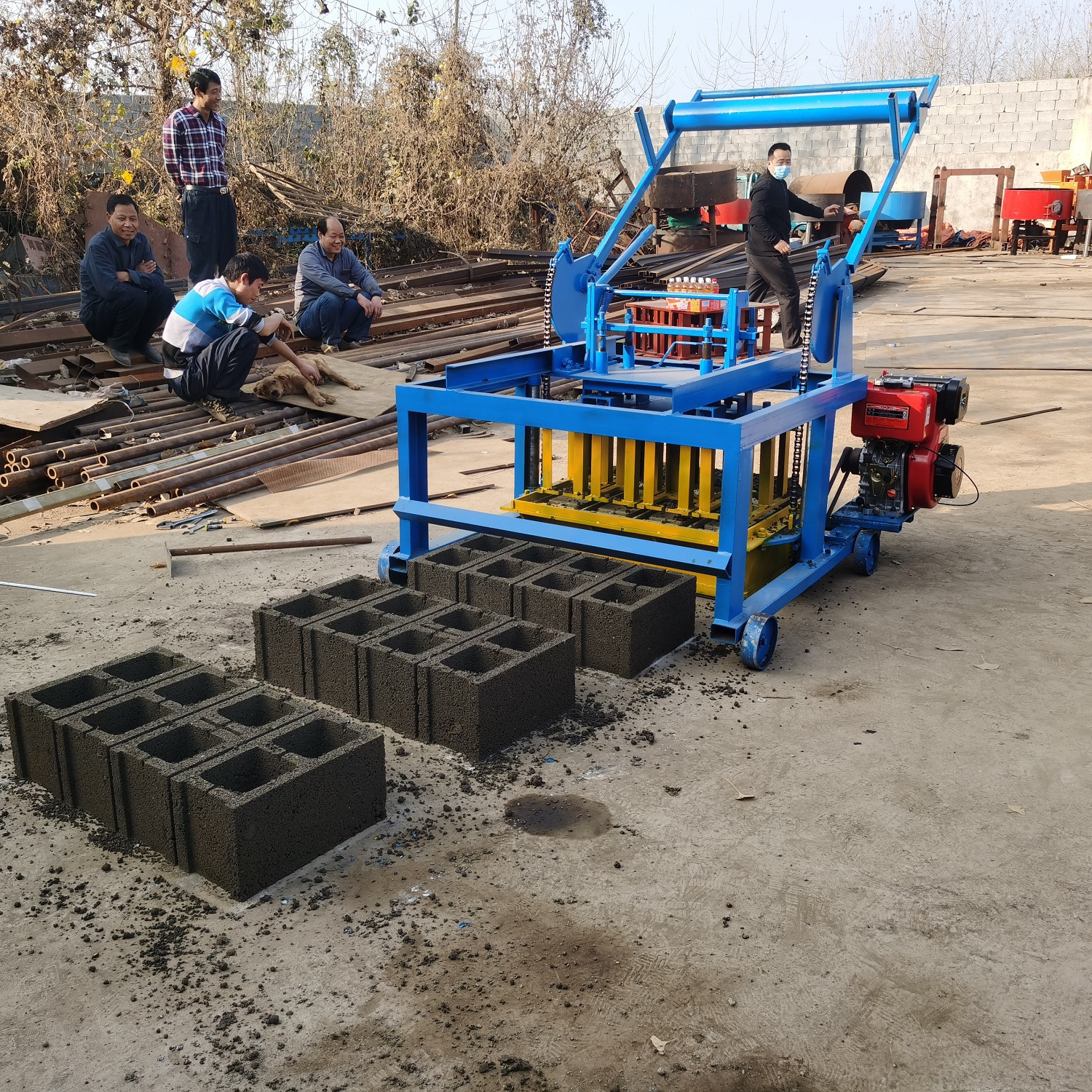

QTM4-40 Movable Egg Laying Concrete Block Making Machine
For this
QTM4-40
, two workers can complete all the work, very economical and practical, very suitable for small factories and families.
QTM4-40 has the advantages of less investment, easy operation, simple structure, moving flexibly and don't need pallet during operation process.
QTM4-40 has the advantages of less investment, easy operation, simple structure, moving flexibly and don't need pallet during operation process.
QTM4-40
canont change mould, so if you want to produce different kinds of bricks or blocks by this type, you will need to buy additional machines.
|
QTM4-40 Movable Egg Laying Concrete Block Making Machine Technical Parameters
|
|
|
|
|
||||
|
No.
|
Size
(L*W*H)
|
Pieces/Mould
|
Pcs/Hour
|
Pcs/Shift
|
||||
|
1
|
400* 200* 200mm
|
4
|
360
|
2880
|
||||
|
2
|
400* 150* 200mm
|
5
|
450
|
3600
|
||||
|
Dimension of host machine
|
|
|
1800* 1200* 1100mm
|
|
||||
|
Vibration Method
|
|
|
Vibration
|
|
||||
|
Moulding Period
|
|
|
40- 50 Seconds
|
|
||||
|
Moving Method
|
|
|
Manual Driving and Steering
|
|
||||
|
Mainframe Motor Power
|
|
|
1.5KW
|
|
||||
|
Pallet
|
|
|
No Need For Pallets
|
|
||||
Main Features
QTM4-40 movable egg laying concrete block making machine is one of our best selling egg laying block making machine.
1. High quality. All raw materials are good quality steel 45HR.
2. Very convenient, with wheels, can move to everywhere easily.
3. Easy to operate.
4. Can make various of bricks and blocks.
5. Total Mass: 800kgs.
6. Overall dimension 1800*1200*1100mm.
Detailed Images
Mainframe
Name: QTM4-40 Movable Egg Laying Concrete Block Making Machine
Brand: KAIDONG
Original: China
The production capacity depends on this forming machine and it is also the essential part of the whole production line. You can change moulds on this parts to make different shapes of blocks, bricks, pavers and curbstone.
Mixer
Name: JQ350 Vertical Concrete Mixer
Brand: KAIDONG
Original: China
Before using, connecting to the power source (according to the local power source requirement). Put 8kgs machine oil into gear case. Then, make the machine work for 5minutes without anything. The next step, put the material (granules and glue) into the container. It takes 5-6minutes to finish the mixing. After using, please clean the container.
Name: JQ350 Vertical Concrete Mixer
Brand: KAIDONG
Original: China
Before using, connecting to the power source (according to the local power source requirement). Put 8kgs machine oil into gear case. Then, make the machine work for 5minutes without anything. The next step, put the material (granules and glue) into the container. It takes 5-6minutes to finish the mixing. After using, please clean the container.
Global Vision
Clients from Abroad
Certifications
Our Factory
KAIDONG MACHINERY
SHANDONG KAIDONG CONSTRUCTION MACHINERY CO.,LTD(SHANDONG KAIQIAN IMPORT & EXPORT CO.,LTD) are professional building materials machinery and equipment research, manufacture and export company. Company business started in 1998, year turnover is more than 50 million USD. The company's main products are concrete block making machine, AAC block machine, concrete pole pipe making machine, concrete roof tile machine and mixer.
The company passed ISO9001 management system and the European Union CE certification, the products absorb the German mechanical design and manufacturing experience, focus on quality design, high-quality material, exquisite welding and strict inspection process to ensure high-quality equipment and maximize service life. Company products are exported to Southeast Asia, Africa, South America, Eastern Europe, the Middle East, Australia and more than 90 countries and regions.
Company of "integrity first, win-win cooperation", the positive development of quality products, improve the quality of service. We are not only the machinery products supplier, most important is that we are best program and service supplier according to clients real conditions. Welcome all customers to cooperate with us.
