* For MB diagnostic software and hardware connection

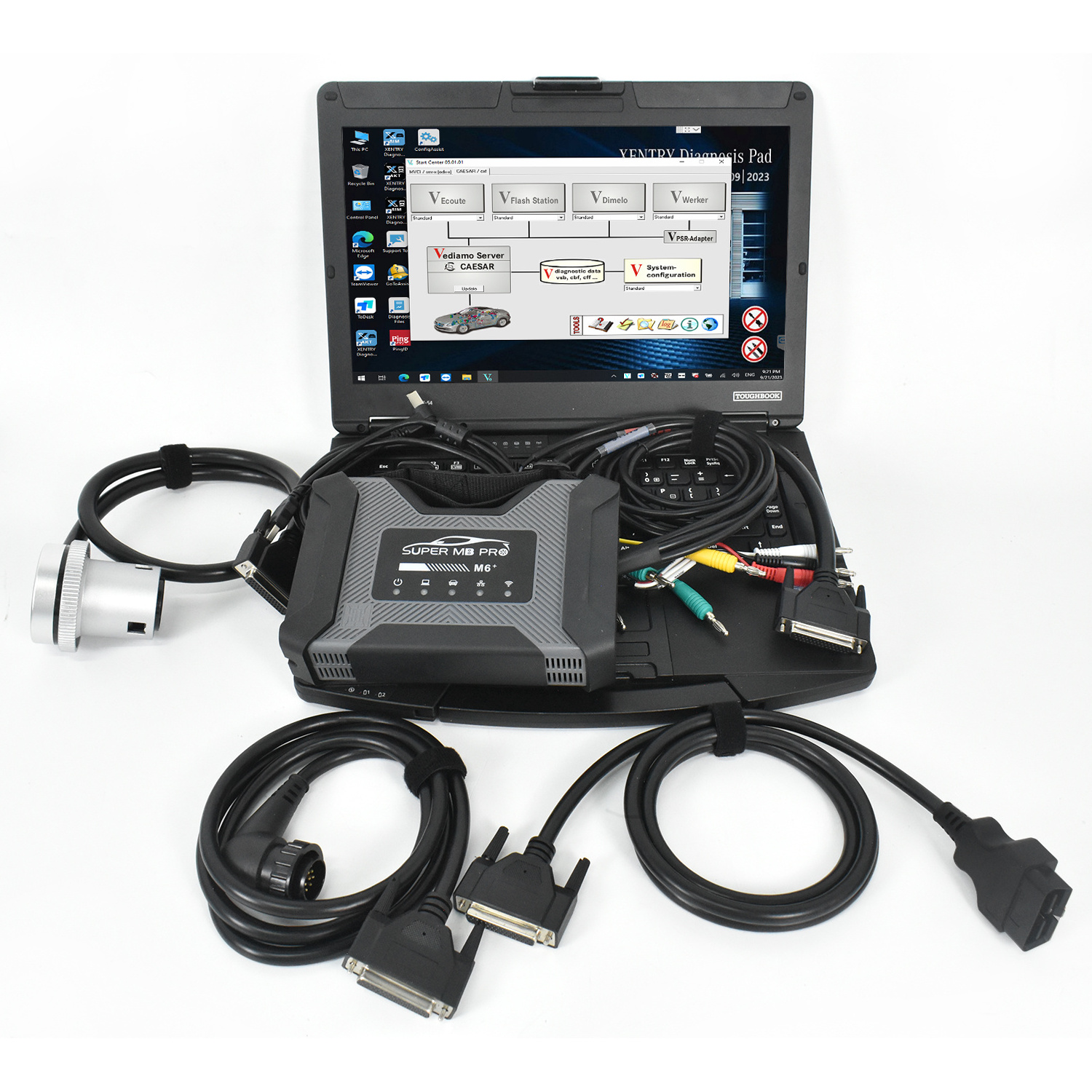

(1) Connect the M6+hardware box with the vehicle diagnosis interface through the test line. The red indicator on the host computer
is always on, the system indicator is flashing and starting. After starting, is always on and beeps and beeps, indicating that the
start is complete
(2) Wired connection: connect the USB port of the M6+hardware box to the computer or tablet USB port through the USB cable. A new
network connection (WIN10 drive-free) will appear on the computer or tablet network management interface. The IP address of the
network connection attribute will be changed to 172.29.127. 255.255.255.0 Click Advanced and add multiple IP addresses as
169.254.0. 255.255.255.0. After the computer or tablet is connected to the network, indicator will be on.
(3) Wireless connection: You cannot find a wireless network by plugging in the USB cable. Unplug the USB cable of the M6+hardware
box port, and you will find an M6+DOIP - network on the computer or tablet. Connect it. The wireless indicator green light is
always on, and the wired light is not on, without any settings. The password is 123456789
(4) The BEN software lock at the computer end can be opened to use the original diagnostic test software normally.
(5) Consult after-sales service for remote C-terminal operation.
* For B-W-M software and hardware connection
(1) Connect the M6+hardware box with the vehicle diagnosis interface through the test line. The red indicator 1. on the host
computer is always on, the system indicator 2. is flashing and starting. After starting, it is always on and beeps and beeps,
indicating that the start is complete
(2) Wired connection: connect the USB port of the M6+hardware box to the USB port of the computer or tablet through a USB cable. A
new network connection (WIN10 drive-free) will appear on the computer or tablet network management interface. The IP address of
the network connection attribute is changed to 172.29.127. 255.255.255.0 Click Advanced and add multiple IP addresses as
169.254.0. 255.255.255.0. After the computer or tablet is connected to the network, 4. indicator will be on. Press and hold the
5.switch button on the side for 3s, and then release it. You can see that the 4. green indicator light is always on and becomes
flashing, indicating that the test can be conducted normally. The initial state will be restored after power on again.
(3) Wireless connection: You cannot find a wireless network by plugging in the USB cable. If you unplug the USB cable on the port
of the M6+hardware box, you will find an M6+DOIP - network on the computer or tablet. You can connect it without any settings. The
password is 123456789, 5.the wireless indicator green light is always on, 4. the line light is not on Press and hold the 6. switch
button on the side for 3s, and then release it. You can see that the 6. wireless green indicator light is always on and turns into
flashing, indicating that the test is normal. The initial state will be restored after power on again.
(4) The computer end BWM software adopts wired or wireless connection, and the mobile phone BWM APP software adopts wireless
connection.
(5) Consult after-sales service for remote C-terminal operation.
3. For DOIP function and hardware connection of other diagnostic test software, refer to BWM software and hardware connection
usage
Vehicles List: Car Support List:
A(176), A(169), A(168), B(246), B(245), CLC(117), C(204) C(203), C(202), 190(201), E(212), E(211), E(210), 124(124), S(222),
S(221), S(220), S(140), S(126),E(207), CLK(209), CLK(208), CLS(218), CLS(219), CL(216), CL(215), CL(140) SLK(172), SLK(171),
SLK(170), SL(231), SL(230), SL(129), SL(107), SLS(197),M(166), M(164), M(163), G(463), G(461), E(212), E(211), E(210), 124(124),
S(222), S(221),S(220), S(140), CLK(209), CLK(208), CLS(218), CLS(219), CL(216),CL(215), CL(140), SLK(172), SL(231), SL(230),
SL(129), SL(107),SLS(197), M(166), M(164), M(163), G(460), GL(164), GLK(204), R(251)Truck Support List:For Actros963/4, for
Actros2,3, for AtegoIII, for AtegoII, for AxorII, for Eonic, for Zetros, for Actros, for Atego Light, for Atego Heavey, for HPN
M96, for Atron, for HPN M2000, SKL, FSK, Further model seriesBus Support List:for TRAVEGO, for INTOURO, for INTEGRO, for CITARO,
for CAPACITY, CITO, for TOURISMO, O350/O403, for CONECTO, O404, O405-O408, for Minibus, OC500, for TOURO, for TOURINO, MBC, for
MULITEGO, O500, O500/OH, OH, OH368, OF, OF384, LO, O400,for FURTHER MODEL SERIESVan Support List:MB 100(631), T1, for SprinterIII,
for SprinterII, for SprinterI, for Sprinter900, for Citan, for Vito(639), for Vito(638), V(638), for Viano(639), T2, for Vario,
for Vaneo(414)Unimog Support List: U20, UGN, UHN
Support Languages:
English, Croatian, Czech, Danish, Dutch, Finish, French, German, Greek, Hungarian, Italian, Japanese, Korean,Polish, Portuguese, Romanian, Russian; Spanish, Swedish, Turkish, Chinese.
