Quick Details
-
Arc Current:
-
50-630A
-
Pulse Frequency:
-
50/60Hz
-
Rated Duty Cycle:
-
60%
-
Dimensions:
-
641*360*640mm
-
Usage:
-
MIG/MAG/CO2 Welding
-
Weight (KG):
-
56 KG
-
Accessories:
-
MIG Torch,Earth Clamp,Welding Cable,Welding Mask,Brush
-
Wire Feeder:
-
Seperate
-
Model:
-
NBC-630D
-
Input power voltage (V):
-
3 phase 380V±15%
-
Rated input capacity (KVA):
-
37
-
Rated input current (A):
-
66
-
Voltage adjusting range (V):
-
17~50
-
Current adjusting range (A):
-
60~630
-
Protection class:
-
IP21S
-
Insulation class:
-
H
Quick Details
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
HAILI
-
Core Components:
-
IGBT
-
Arc Current:
-
50-630A
-
Pulse Frequency:
-
50/60Hz
-
Rated Duty Cycle:
-
60%
-
Dimensions:
-
641*360*640mm
-
Usage:
-
MIG/MAG/CO2 Welding
-
Weight (KG):
-
56 KG
-
Accessories:
-
MIG Torch,Earth Clamp,Welding Cable,Welding Mask,Brush
-
Wire Feeder:
-
Seperate
-
Model:
-
NBC-630D
-
Input power voltage (V):
-
3 phase 380V±15%
-
Rated input capacity (KVA):
-
37
-
Rated input current (A):
-
66
-
Voltage adjusting range (V):
-
17~50
-
Current adjusting range (A):
-
60~630
-
Protection class:
-
IP21S
-
Insulation class:
-
H

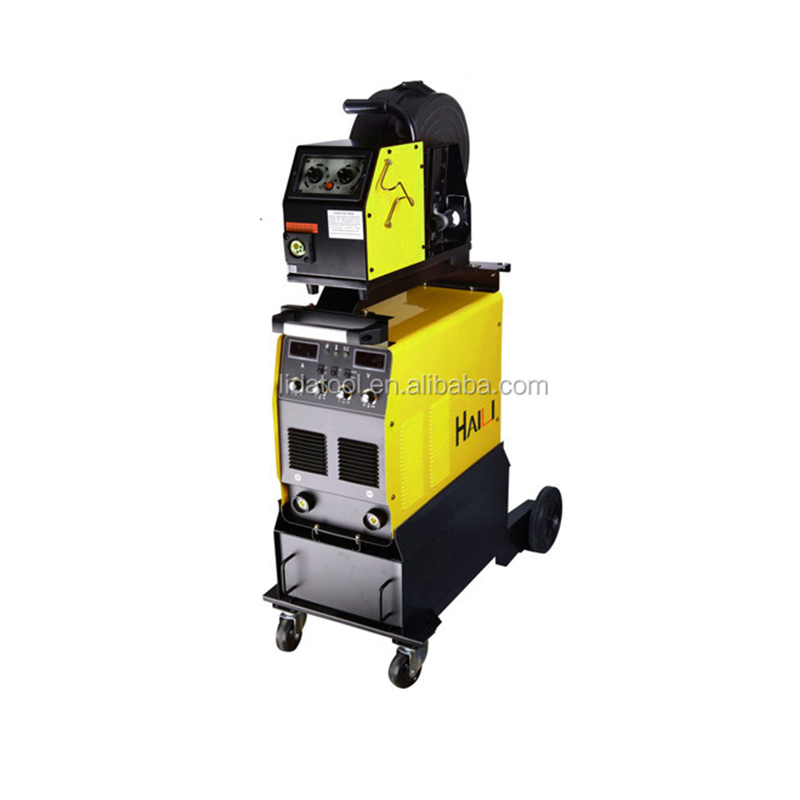

Inverter MIG MAG Welder,Inverter MIG Welder,MIG MAG CO2 Welding Machine
Technical Characteristics
* IGBT inverter technology, current-mode control, reliable quality, stable performance.
* Closed loop feedback control, constant voltage output, workable under network voltage fluctuation within 15%.
* Under the control of electronic reator, stable welding arc, little spattering, deep penetration, beautiful shaping, high welding efficiency.
* Slow wire feeding during arc starting; remove the tip ball after welding, reliable arc starting.
* Small size, light weight, simple operation, economical and practical.
* Great reduction in magnetic loss obviously enhances the welding efficiency and energy saving effect.
* Adjustable welding voltage, precisely matching the welding current, excellent welding characteristics.
* Switching frequency is beyond audiorange, which almost eliminates noise pollution.
|
Model |
NBC - 350D |
NBC-500D |
NBC-630D |
|
Input power voltage (V) |
3 phase 380V±15% |
3 phase 380V±15% |
3 phase 380V±15% |
|
Frequency(Hz) |
50/60 |
50/60 |
50/60 |
|
Rated input capacity (KVA) |
14 |
25 |
37 |
|
Rated input current (A) |
25 |
46 |
66 |
|
Voltage adjusting range (V) |
14~40 |
17~50 |
17~50 |
|
Current adjusting range (A) |
60~350 |
60~500 |
60~630 |
|
Welding wire (φ) |
0.8~1.6 |
1.0~1.6 |
1.0~2.0 |
|
Welding thickness(MM) |
≥1.0 |
≥1.0 |
≥1.2 |
|
Duty cycle (%) |
60% |
60% |
60% |
|
Full load efficiency |
85% |
85% |
85% |
|
Power factor |
0.93 |
0.93 |
0.93 |
|
Insulation class |
H |
H |
H |
|
Protection class |
IP21S |
IP21S |
IP21S |
|
Weight (kg) |
43 |
54 |
56 |
|
Overall dimension (mm) |
607×330×623 |
607×330×623 |
641×360×640 |
