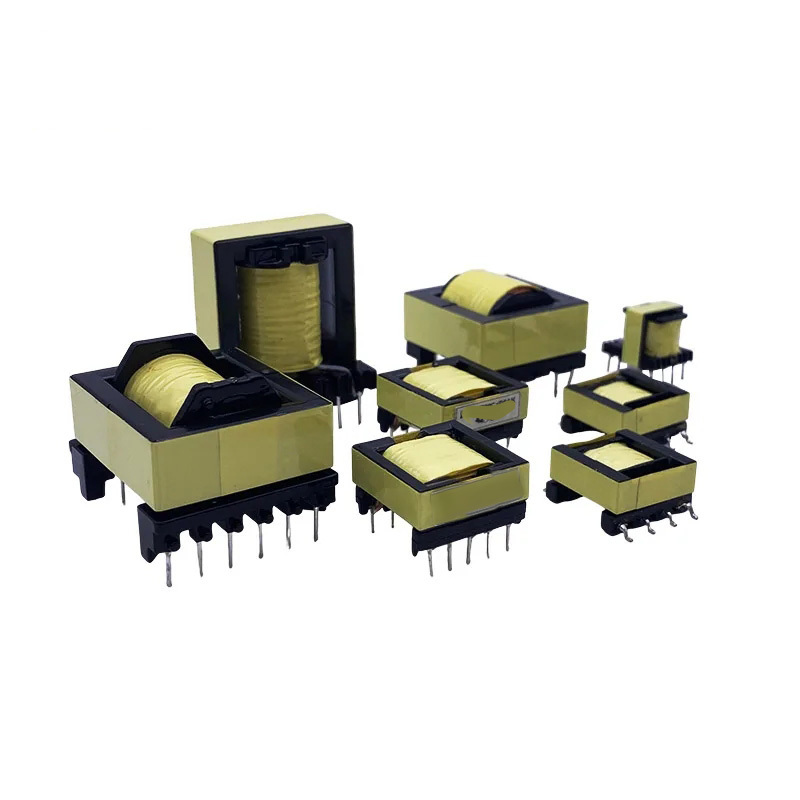

EE Transformer Pad Mounted Transformer mini Step up high-frequency transformer

EE Transformer Pad Mounted Transformer mini Step up high-frequency transformer

FOB Reference Price: Get Latest Price

≥5 Sets

US $0.7

≥1000 Sets

US $0.6

≥10000 Sets

US $0.3

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Coil Number:: AUTOTRANSFORMER

Place of Origin:: Shandong, China

Brand Name:: YAMINGTE

Model Number:: EF EE

Product Name:: Swtiching Power

Warranty:: Within One Year

Application:: Machines

Certification:: ISO9001

Type:: EF25

Protections:: Over Voltage

Packing:: Carton

onput Voltageto:: Other

Quick Details

Use:: High Frequency

Phase:: Single

Coil Structure:: TOROIDAL

Coil Number:: AUTOTRANSFORMER

Place of Origin:: Shandong, China

Brand Name:: YAMINGTE

Model Number:: EF EE

Product Name:: Swtiching Power

Warranty:: Within One Year

Application:: Machines

Certification:: ISO9001

Type:: EF25

Protections:: Over Voltage

Packing:: Carton

onput Voltageto:: Other

EE 220v 12v Power High Frequency Electric Mini Transformer 500w For Mobile Phone Charger

Products Description

High Frequency Transformer

Transformer Performance
1. Working frequency : 20kHz-300KHz 2. Output power : 0.5 to 5 W 3. Working temperature: -40 ℃ to + 125 ℃ 4. Storage temperature :-25 ℃ to + 85 ℃ 5. Storage humidity : 30 to 95% Transformer Features high frequency transformer has the characteristics of small size, cheap price,Large transmission power, low loss, wide frequency range ,low temperature rise,stable performance and so on.

Transformer Application high frequency transformer is often used in mobile phone chargers, DC-DC converters, drive transformers, adapters, power supplies, etc.

Specification

Trasformer Components	bobbin, ferrite core, silicon steel sheet, copper wire, copper foil, insulation tape, margin tape, TFL tube, expoy
Trasformer Bobbin Material	bakelite/ phenolic/ plastics
Trasformer Shape Type	horizontal / vertical / SMD
Inductance Range	1uH-100H
Working Frequency Range	50Hz --300KHZ
Output Power	0.1W-2000W
Output Voltage	0.1V-10000V
Output Current	0.01A-100A
Operating Temperature	-15℃~+80℃
Storage Temperature	-25℃~+85℃
Storage Humidity	30% ~ 90%
Test Items	Ø Turns ratio
		Ø Inductance
		Ø Phase test
		Ø Inductance leakage
		Ø DC resistance test
		Ø Withstand voltage
		Ø Insulation resistance
Certification	ISO9001:2016 ISO9001-2015 UL, ROHS, CE
MOQ	500 pcs
OEM/ODM	acceptable
Sample	free
Sample Time	3-5 working days
Package	EPE foam + export carton, or plastic tray+export carton
Delivery time	15-20 working days against deposit
Features	Large transmission power
		Low loss
		Low temperature rise
		Stable performance

Details Images

Main Features

1. Custom designs available
2. High efficiency of over 95%
3. High frequency range 10kHz-1MHz
4. High isolation strength
5. Lower profile and weight
6. high power density
7. High-temperature resistant
8. Operating temperature -40°C to +125°C
9. Power range 5w-50w

Application

* VCRS, Copy machine , Audio equipment , Game machines
*TV sets, Microcomputer equipment, printers, Terminals
* communications control equipment
*Switching power supply, chargers, alarm system
* UPS, VCD/DVD players, audio and visual equipment
* OA machines, inverters, chargers, alarm system
