Quick Details
-
Application:
-
Access Control
-
Suitable for:
-
Wooden door/ Glass door/Metal door/Fireproof door
-
Work Model:
-
300mA/150mA
-
Holding Force:
-
180kg(350Lbs)
-
Lock Size:
-
170L*42W*21H(mm)
-
Armature Plate Dimension:
-
130L*32W*8H(mm)
-
Operating Temp:
-
-10~+55(14-131F)
-
Humidity:
-
0~90%(non-condensing)
-
Type:
-
Single
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SZEPIN
-
Product name:
-
180kg 350lbs dc 12/24 volts indoor electromagnetic locks for bracelets
-
Application:
-
Access Control
-
Suitable for:
-
Wooden door/ Glass door/Metal door/Fireproof door
-
Work Model:
-
300mA/150mA
-
Holding Force:
-
180kg(350Lbs)
-
Lock Size:
-
170L*42W*21H(mm)
-
Armature Plate Dimension:
-
130L*32W*8H(mm)
-
Operating Temp:
-
-10~+55(14-131F)
-
Humidity:
-
0~90%(non-condensing)
-
Type:
-
Single
Product Description
Product Paramenters
|
Model Name
|
EP-M180
|
|
Product Name
|

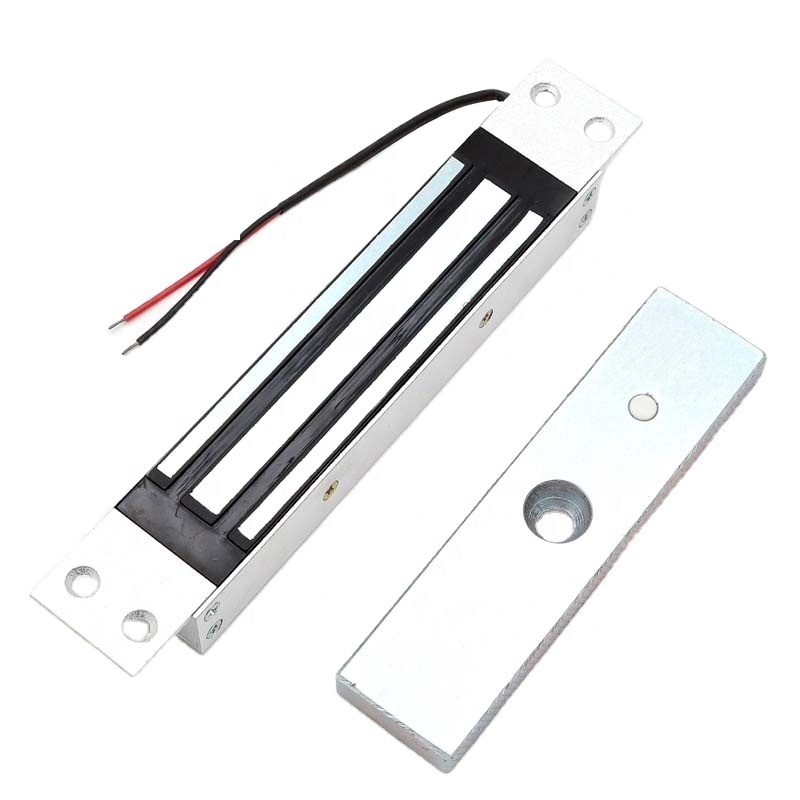

180kg hidden magnetic door lock system 350lbs dc 12/24 volts indoor electromagnetic locks for bracelets
|
|
Dimensions
|
194L*34W*23H(mm)
|
|
Armature Plate Dimension
|
134L*34W*12H(mm)
|
|
Holding Force
|
180kg(350Lbs)
|
|
Input Voltage
|
12 or 24 VDC(The default is 12 vdc)
|
|
Current
|
12V/480mA 24V/240mA
|
|
Suitable
|
Wooden door , Glass door ,Metal door , Fireproof door
|
|
Surface Temp
|
≤+20℃
|
|
Operating Temp
|
-10~+55℃(14-131F)
|
|
Humidity
|
0~90%(non-condensing)
|
|
Cover Finish
|
Anodized aluminum/Stainless Steel
|
|
Lock Finish
|
Zinc
|
|
Armature Plate Finish
|
Zinc
|
|
Weight
|
1KGS
|
|
certification
|
certified frustration-free
|
Q: Are you trading company or manufacturer ?
A: We are a 100% factory, specialized in access control. Factory located in Science and Technology Park, Henglang New Village, Dalang Shang, Longhua District, Shenzhen City, Guangdong Province
Q: How long is your delivery time after placing the order ?
A: 35~40days for first order, 25~30days for the coming order.
Q: Do you provide samples ? Is it free or extra ?
A: You pay charges for sample and freight, we will return sample charges to you when you place formal order.
Q: What is your terms of payment ?
A: TT 30% in advance, 70% balance before shippment.
Q: How about the quality warranty ?
A: We provide one year of quality assurance. If the product has quality problems, please take the photos and send to us .we will deal with as soon as possible. Please note, transport damage or human damage, are not belong the warranty.
Q: What is your terms of delivery?
A: EXW, FOB
