- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Apartment
-
Design Style:
-
Modern
-
Surface Treatment:
-
Brushed, Mirror, PE Coated, PVDF Coated, matt, glossy, wooden, marble/granite, NANO PVDF Coated, FEVE Coated
-
Place of Origin:
-
Shanghai
-
Brand Name:
-
Aludream
-
Model Number:
-
aluminum composite panel
-
Product name:
-
4mm Reynobond or Alucobond aluminum composite panel for trailer
-
Panel thickness:
-
3-15mm
-
Aluminum Thickness:
-
0.3-0.5mm
-
Width:
-
840-2000mm
-
length:
-
max to 11800mm
-
Coating:
-
PVDF,PE, NANO PVDF,FEVE
-
Certificate:
-
CE/SGS/ISO9001
-
MOQ:
-
300 Square Meters
-
Material:
-
PE Core
-
Thickness:
-
2-15mm
Quick Details
-
Warranty:
-
More than 5 years
-
Size:
-
1220*2440mm
-
Project Solution Capability:
-
Others
-
Application:
-
Apartment
-
Design Style:
-
Modern
-
Surface Treatment:
-
Brushed, Mirror, PE Coated, PVDF Coated, matt, glossy, wooden, marble/granite, NANO PVDF Coated, FEVE Coated
-
Place of Origin:
-
Shanghai
-
Brand Name:
-
Aludream
-
Model Number:
-
aluminum composite panel
-
Product name:
-
4mm Reynobond or Alucobond aluminum composite panel for trailer
-
Panel thickness:
-
3-15mm
-
Aluminum Thickness:
-
0.3-0.5mm
-
Width:
-
840-2000mm
-
length:
-
max to 11800mm
-
Coating:
-
PVDF,PE, NANO PVDF,FEVE
-
Certificate:
-
CE/SGS/ISO9001
-
MOQ:
-
300 Square Meters
-
Material:
-
PE Core
-
Thickness:
-
2-15mm

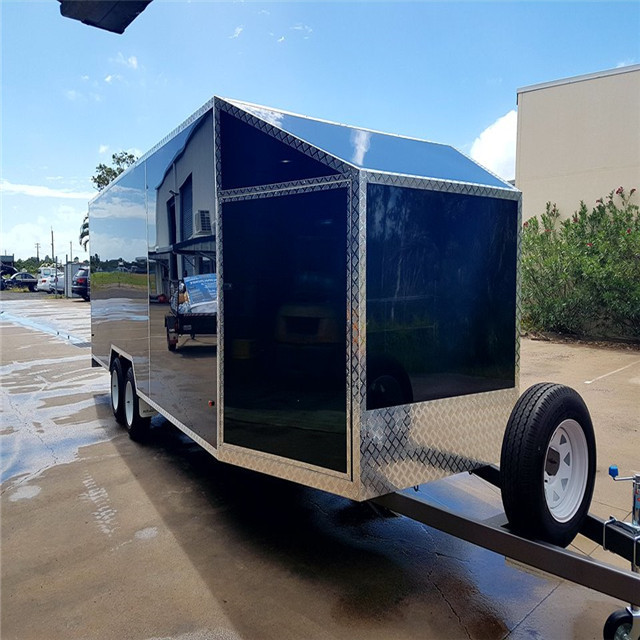

4mm Reynobond or Alucobond aluminum composite panel for trailer side panel
| Panel Thickness: | 2-12mm |
| Panel width: | 840/1000/1220/1250/1300/1500/1550/1570/2000mm |
| Panel Length: | within 11500mm |
| Popular Size: | |
| Surface Coating: | PE, PVDF, NANO, FEVE, Marble, Granite, Wooden, Brushed, Nacreous, Glossy. |
| Core Quality: | LDPE Normal / LDPE Unbroken/ B1 FR/A2 FR/Pure Material |
| Color Request: | Can be customized |
| Protection Film: | Can be customized or Neutral or Aludream |
| Minimum Order Quantity: | 100 sheets for one normal color in one standard or popular size. |
|
PVDF Series |
The surface of PVDF aluminum composite panel is Polyvinylidene Fluoride (pvdf, 70%contents) with good weather resistance, impact resistance, UV resistance, sound and heat resistance, colorful, smooth and beautiful. Its life is about 20 years. It is mainly used for exterior decoration. |
|
PE Series |
PE ACP is a kind of new green composite material which compounded of two layers of aluminum sheets and nontoxic low-density polyethyene (LDPE) by macromolecule adhesive film of American DuPont Company through thermo compression, The coating of the aluminum sheet is polyester coating with UV resistance, Its life is about 15 years. It is mainly used for interior decoration and advertisement board. |
|
Mirror Finish Series |
The surface of the mirror finish ACP is the aluminum sheet that looks like a mirror. The back surface is aluminum sheet with anti-corrosion. The mirror finish ACP has the features of mirror effect, light weight, difficult to break, high strength, can be bent and easy to process. Thanks to those features, mirror finish ACP is increasingly used for interior decoration, especially in ceiling, Cabinet panel, household appliance, furniture. |
|
Nanometer ACP Series |
The coating of surface of nanometer ACP is PVDF coating, and then adds a self-clean layer on the surface of PVDF coating. The self-clean layer can prevent the pollutant such as ash layer and decompose the pollutant in the air to reach self-clean effect. Its features of stain resistance, self-clean, acid resistance, weather resistance of nano is superior to the traditional PVDF ACP. |
|
Fire-resistant Series |
Fire-resistance ACP is a kind of green fire-resistant composite material which is compounded of two layers of aluminum sheet and special low-density polythylene (LDPE) with fire-resistance. The coating of its surface is PE or PVDF coating. The core material is compounded by fire-resistant MGOH, NAOH and PE Polyster, so it has the feature of good fire-resistance which can reach B1 class. |
|
Drawing Finish Series |
Drawing finish ACP is compounded of drawing aluminum sheet, the anti-corrosion aluminum sheet, and nontoxic low-density polyethylene (LDPE). Thanks to the drawing treatment, its appearance is very beautiful. It is widely used for interior decoration, especially in ceiling, Cabinet panel, household appliance, furniture. |
2 Swatch effect case
1. Packing
1) LCL shipping with wooden pallet
2) FCL shipping with wooden pallet into container
3) FCL shipping with bulk into container
2. Delivery time
1) Regular order is 15-25 days after deposit payment
2) Sample order if in stock can be 2-5 days.
WE CAN MATVH COLOR AS BELOW !
1) RAL Number
2) PANTONE Number
3) Your Color Samples.
welcome to contact me for any question.
Q1.What is your MOQ, Delivery Time, Warranty, Payment, Production Capacity?
A1: 1. MOQ (Minimum Order Quantity): 300 m2 PE/PVDF coating common colors.
2. Delivery Time: within 10 to 15 days after contract confirmed and deposite payment received.
3. Warranty: PVDF KY coating - 20 years for outside use; Polyester (PE) coating -8 years for outside use, 10 years for inside use.
4. Payment: 30% TT in advance, 70% see copy of BL.
5. Production Capacity: 20000 PCS per day basic on 1220 * 2440mm 4mm thickness.
Q2.What's the available panel size and thickness?
A2: 1. Width: 1000-1575mm; 1220mm, 1250mm, 1500mm, 1550mm, 2000mm are recommended.
2. Length: accept custom length, all length is available from Aludream.
3. Panel Thickness: 2mm-6mm; recommend 3,4mm.
4.Aluminum thickness: 0.05-0.5mm, such as 0.10mm, 0.21mm, 0.30mm, 0.40mm, 0.50mm.
Q3.Do you have any test certificates?
A3: Yes, stable good quality is key for long time business cooepration.
Factory have passed ISO9001: 2008 QUALITY SYSTEMS; ISO14001: 2004 ENVIRONMENTAL SYSTEMS; OHSAS18001: 2007 HEALTH SYSTEMS; our products have passed SGS, SGS, SGS-FR; A2 FR etc.
Q4.Where have your Aludream aluminum composite panel been export?
A4: Yes, our factory signs 2002; have already exported to USA, Canada, Mexico, Brasil, Chile, Panama, Europe Market, Australia, New Zealand, the Mid-east Countries, Southeast Asia and Africa.
Q5.Do you service OEM?
A4: Yes, OEM accept. Just need to give us yours logo, we will send some protective film design for your choose, and need to pay for 400 usd at the first order, this charge will return back to you at the 2th containers order. Also, we can do match color for you If you have some of your own color.
