Quick Details
-
Name:
-
8x8 HDMI matrix switch
-
warranty:
-
2 years
-
feature:
-
support 3D,4K/60Hz, RS232
-
case:
-
mental
-
color:
-
black
Quick Details
-
Model Number:
-
HDMX8x8-V2.0
-
Brand Name:
-
SFX
-
Place of Origin:
-
Guangdong, China
-
Name:
-
8x8 HDMI matrix switch
-
warranty:
-
2 years
-
feature:
-
support 3D,4K/60Hz, RS232
-
case:
-
mental
-
color:
-
black

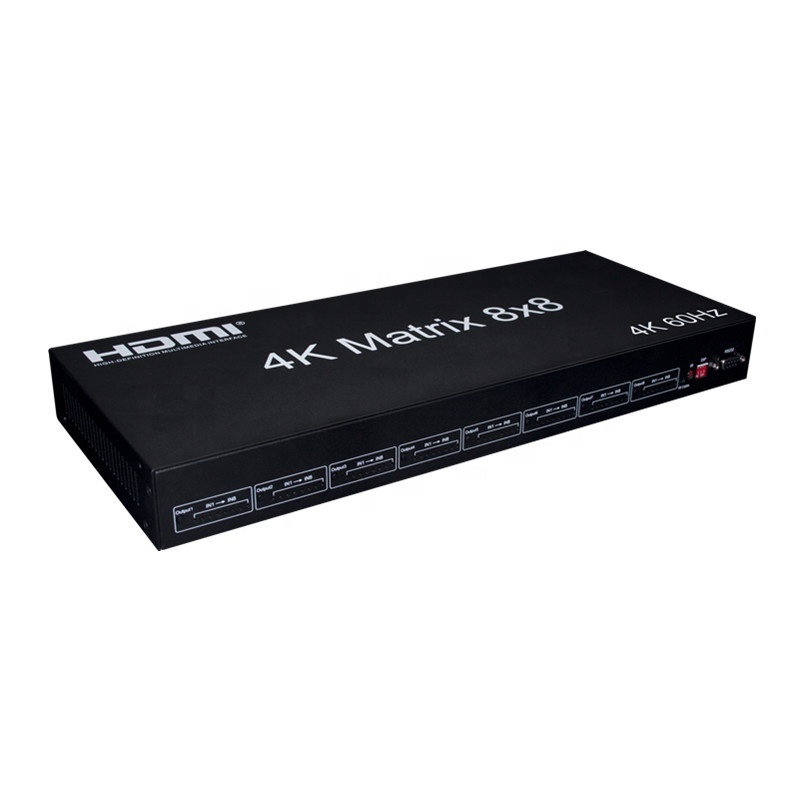

High Technology 8x8 HDMI matrix switch
The HDMI Matrix 8x8 can connect eight HDMI signal sources with the eight displays at
the same time.It can easily and freely split or switch eight hdmi signals on eight displays or
projectors which compatible with hdmi signal. Extra infrared receiver extension, IR emitter,
RS232 are supplied for remote control.
HDMI matrix 8x8 has the ability of equalization and amplification to ensure HDMI signal's
transmission through long cable without quality loss.This HDMI matrix offers solutions for
digital entertainment center, HDTV
,
retail and show site, HDTV, STB, DVD and projector
factory, noise, space and security concerns, data center control, information distribution,
conferencer ntation, school and corporate training environments.
Features
* Very compact structure
* Stable and reliable
* Economical and cost-effective
* Support 3D
;
* Support IR Remote Control
;
* Support RS232 Control;
* The eight outputs could show the same or different source simultaneously
;
* Support 4K (input) resolution 2K (output) (Downscaling);
Specification
HDMI resolution …………………….…....….…....…................................….... up to 4K/60Hz
Support video format ……………........................................…....8/10/12 bit deep color
Support audio format ……................ DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3
Max baud rate ........................................................................................18Gbps
Input cable distance ..…............ ≤5m HDMI AWG26(4K)
;
≤20m HDMI AWG26(1080P)
Output cable distance …............ ≤5m HDMI AWG26(4K)
;
≤20m HDMI AWG26(1080P)
HDMI Input ................................................................................................... 8
HDMI Output ..................................................................................................8
Max working current ...................................................................................2.6A
Power adapter format ......... Input: AC (50HZ, 60HZ) 100V-240V; Output: DC12V/3A
Operating Temperature range ........................................................ (-15 to +45
℃
)
Operating Humidity range........................................5 to 90%RH (No Condensation)
Dimension (L x W x H) .............................................................276x143x26 (mm)
Weight ...................................................................................................720.5g
Application diagrams
Operating and Connecting
1. Connect each HDMI source devices and input of HDMI Matrix with HDMI cable.
2. Connect display devices and output of HDMI Matrix with HDMI cable.
3. Use the switch button or IR remote control to switch the signal source freely.
4. Connect 12V power supply to the HDMI 8x8 Matrix.
5. How to use RS-232 port?
Through RS - 232 port you can update software and monitor the state of the input and
output signals. And can switch signals. When connects the computer, customer can
easily switch the signals via computer.
Package Includes
1. HDMI Matrix 8x8 1PCS
2. IR Remote Control 1PCS
3. IR Receiver cable 1PCS
4.12V DC Power adapter 1PCS
5. User manual 1PCS
with CE ,FCC,ROHS approved
welcome to visit our factory
Shenzhen Suo-Feixiang technology Co., Ltd
ADD: 2nd floor ,8th building , Tian-FuAn industry park , le zhujiao,xixiang ,BaoAn District ,Shenzhen ,Guangdong ,China
Tel : 86--755-29166707-17
Fax: 86-755-29166632
web: www.sfxhd.com
