Quick Details
-
Cooling Mode:
-
WATER COOLING
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LCCN
-
Weight (KG):
-
450 KG
-
Core Components:
-
laser source
-
Laser Power:
-
100w
-
Applicable Material:
-
nonmetal
-
Working area:
-
600*600mm
-
Marking Speed:
-
0-7000mm/s
-
Power supply:
-
110V/ 220V 50Hz/60Hz 2kVA
-
Certification:
-
ce
-
Marketing Type:
-
Other
Quick Details
-
Working Accuracy:
-
0.001mm
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Laser Type:
-
CO2
-
Cooling Mode:
-
WATER COOLING
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LCCN
-
Weight (KG):
-
450 KG
-
Core Components:
-
laser source
-
Laser Power:
-
100w
-
Applicable Material:
-
nonmetal
-
Working area:
-
600*600mm
-
Marking Speed:
-
0-7000mm/s
-
Power supply:
-
110V/ 220V 50Hz/60Hz 2kVA
-
Certification:
-
ce
-
Marketing Type:
-
Other

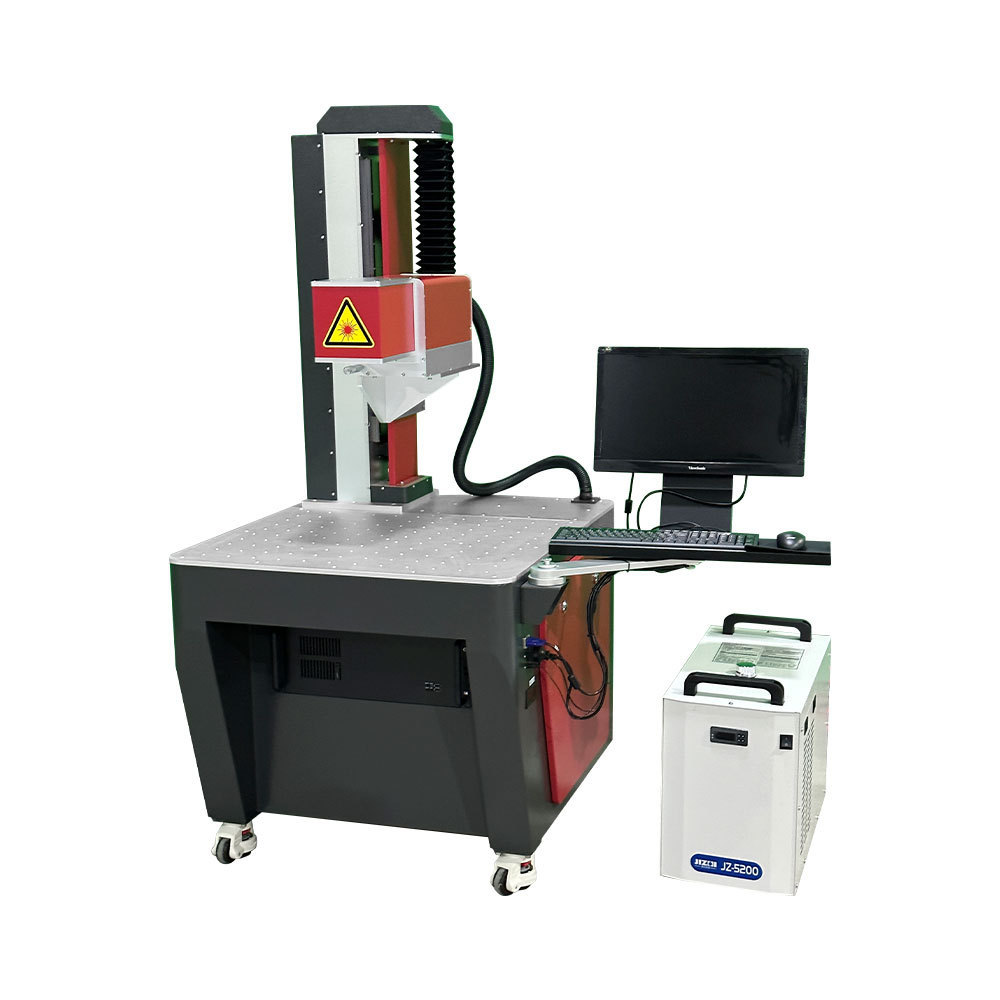

400/500/600*600mm 3d co2 laser marking machine on jeans co2 laser marking machine price for leather paper pet plastic wood
EZCAD 2
3D SCANNER HEAD
Customer design 3D scanner laser head;
highest working speed 7000mm/s;
Water cooling for more stable , longtime work, and longer life.
Working area Adjustable
Humanized design, special knob to adjust different working format, more flexible and convenient.
Z-AIX
Z-aix is for increase the working area but keep the high working space;
also cooling by water for keep machine stable.
Anti-static system
Electric
Lifting
More convenient, faster and more accurate without manual work
Chiller CW5200
S&A good brand chiller.
Good cooling for the laser tube and 3D head.
Machine can run all time without over tempareture.
550W Smoke Fan
Strong power for pump smoke out.
And cutting good result.
|
Laser Type
|
co2 laser
|
|
Laser Power
|
100-130W RECI/CDWJ TUBE
|
|
Model
|
CN-100W
|
|
Laser Wavelength
|
1064nm
|
|
Marking Area
|
400*400/500*500/600*600mm
|
|
Marking Depth
|
≤1.2mm
|
|
Marking Speed
|
7000mm/s
|
|
Minimum Line Width
|
0.012mm
|
|
Minimum Character
|
0.15mm
|
|
Repeated Precision
|
±0.003mm
|
|
Life-span of Fiber Laser Module
|
100 000hours
|
|
Beam Quality
|
M2 <1.5
|
|
Focus Spot Diameter
|
<0.01mm
|
|
Output Power of Laser
|
10%~100% continuously to be adjusted
|
|
System Operation Environment
|
Windows XP /7/8/10 32/64bits
|
|
Temperature of Operation Environment
|
15℃~35℃
|
|
Power Input
|
220/110v single phase
|
|
Power Requirement
|
<400W
|
|
Communication Interface
|
USB
|
|
Machine Dimension/after package
|
2000*850*1360mm
|
|
Optional
|
Rotary Device, Moving Table, other customized Automation
|
Sample show
What is the application area of CO2 laser marking machine ?
The main processing object is non-metal, widely used in food packaging, pharmaceutical packaging, architectural ceramics, clothing accessories, leather, fabric cutting, craft gifts, rubber products, electronic components packaging, shell nameplate and so on. Suitable for paper, wood, glass, leather and other materials.
Packing & Delivery
1.Timely delivery.
Each machine is arranged with precise assembly steps without any delay.
2.After-sales services and Guarantee. We offer 1 years warranty, during the period, any problem happen, we are responsible to solve.
2.After-sales services and Guarantee. We offer 1 years warranty, during the period, any problem happen, we are responsible to solve.
Our Company
Certifications
FAQ
Q1. How to get the most suitable machine and best price
As we may know,the different type of CNC machine apply to the different material,and the different model apply to the different material.Thus,Please tell us what's material you want to cutting or engraving ?And what's MAX size of carved material ?Then we wil recommand the most suitable model and the best price for you.
Q2. If we don't know how to use the machine,can you teach us?
Yes, We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online helpsoftware.Or we can talk by phone, email or skype
Q3.How long is the delivery time?
For standard machines, it would be 3-5 days; For non-standard machines and customized machines according to client's specific requirements, it would be 7 to 10 days.
Q4. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The
complete machine will be tested to make sure they can work very well before being out of factory.
Our machine passed CE Certificate, meet European and American standard, were exported to more than 100 Countries.
Q5. Do you arrange shipment for the machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
