Quick Details
-
Voltage:
-
380v50Hz
-
Power type:
-
Hydraulic
-
Application:
-
Recycling
-
Certification:
-
CE.ISO
-
Material box size:
-
1600x950x800mm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Keshang
-
Product name:
-
metal scrap compactor press
-
Voltage:
-
380v50Hz
-
Power type:
-
Hydraulic
-
Application:
-
Recycling
-
Certification:
-
CE.ISO
-
Material box size:
-
1600x950x800mm
Products Description

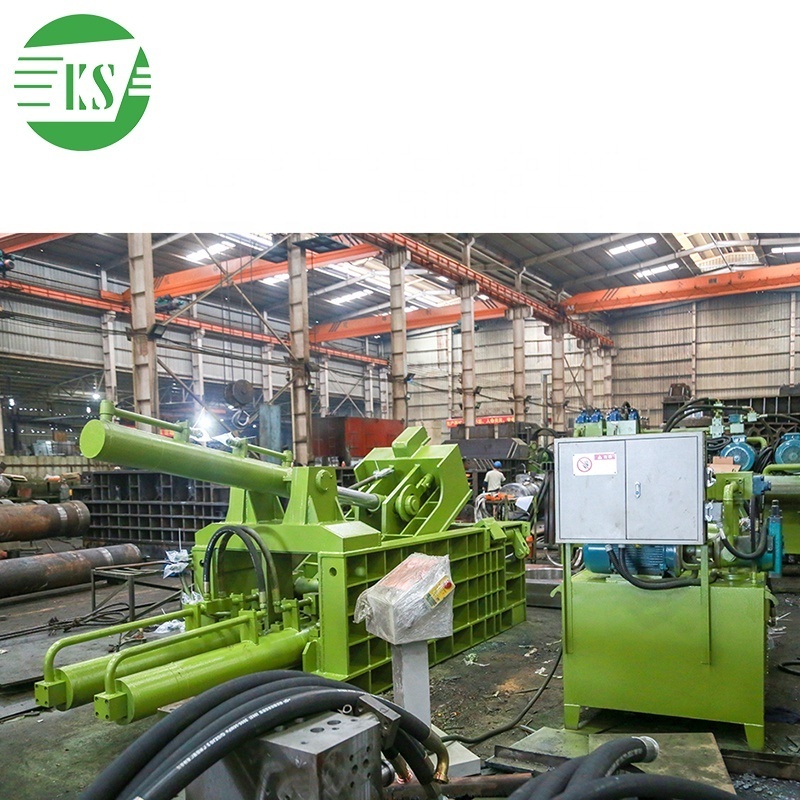

Keshang hydraulic horizontal aluminium metal scrap compactor press 900*700*700mm
1) All types adopt hydraulic driving system, manual or PLC automatic operation.
2) Discharging methods: Turn-out type, Forward-out type, Push-out type
3) Installation without foot screws, diesel engine can be available if there is no power.
4) Press force range from 63 tons to 600 tons, production efficiency from 4 tons -40 tons each shift.
5) Press box size and bale size could be designed and made according to the customers' requirements.
|
Main technical parameters
|
|
|
|
|
||||
|
No.
|
Item
|
|
Unit
|
Y81-160
|
||||
|
|
|
|
|
|
||||
|
1
|
Nominal pressure
|
Main cylinder
|
KN
|
1600
|
||||
|
|
|
Auxiliary cylinder
|
KN
|
1300
|
||||
|
2
|
Maximum working pressure
|
|
Mpa
|
25
|
||||
|
3
|
Processing box size
|
Length
|
mm
|
1600
|
||||
|
|
|
Width
|
mm
|
950
|
||||
|
|
|
Height
|
mm
|
800
|
||||
|
4
|
Bale size
|
Length
|
mm
|
750
|
||||
|
|
|
Width
|
mm
|
400
|
||||
|
|
|
Height
|
mm
|
400
|
||||
|
5
|
Bale density
|
|
kg/m3
|
Zron≥2200
|
||||
|
6
|
Single-cycle time
|
|
S
|
≈50
|
||||
|
7
|
Motor power
|
|
KW
|
15×2
|
||||
|
8
|
Overall dimensions
|
Length
|
mm
|
4200
|
||||
|
|
|
Width
|
mm
|
3200
|
||||
|
|
|
Height
|
mm
|
2500
|
||||
|
9
|
Total weight
|
|
T
|
≈11.5
|
||||
