F3X46 wifi 4g lte mobile dual sim wifi 4g dual sim router 4g lte mobile dual sim

F3C30 LTE&WCDMA/LTE&WCDMA WIFI ROUTER is a kind of cellular terminal device that provides data transfer function by public cellular network. And it supports double link backup between LTE&WCDMA and LTE&WCDMA.

It adopts high-powered industrial 32-bits CPU and embedded real time operating system. It supports RS232 (or RS485/RS422), Ethernet and WIFI port that can conveniently and transparently connect one device to a cellular network, allowing you to connect to your existing serial, Ethernet and WIFI devices with only basic configuration.

It has been widely used on M2M fields, such as intelligent transportation, smart grid, industrial automation, telemetry, finance, POS, water supply, environment protection, post, weather, and so on.

Design for Industrial Application

u High-powered industrial cellular module

u H igh-powered industrial 32bits CPU

u Support low-consumption mode , including sleep mode , scheduled online/offline mode, scheduled power-on/power-off mode ( optional )

u Housing: iron, providing IP30 protection

u Power range: DC 5~35V

S tability and Reliability

u Support hardware and software WDT

u Support auto recovery mechanism, including online detect, auto redial when offline to make router always online

u Ethernet port: 1.5KV magnetic isolation protection

u RS232/RS485/RS422 port: 15KV ESD protection

u SIM/UIM port: 15KV ESD protection

u Power port: reverse-voltage and overvoltage protection

u Antenna port: lightning protection(optional)

Standard and Convenience

u Support standard RS232(or RS485/RS422), Ethernet and WIFI port that can connect to serial, Ethernet and WIFI devices directly

u Support standard WAN port and PPPOE protocol that can connect to ADSL directly

u Support intellectual mode, enter into communication state automatically when powered

u Provide management software for remote management

u Support several work modes

u Convenient configuration and maintenance interface( WEB or CLI)

H igh-performance

u Support double link backup between LTE/WCDMA and LTE/WCDMA

u Support triple link backup among LTE/WCDMA, LTE/WCDMA and WAN(PPPOE, ADSL) (optional)

u Support Load Balancer and Load Shunt

u Support VPN client(PPTP, L2TP, OPENVPN, IPSEC and GRE)(only for VPN version)

u Support VPN server(PPTP, L2TP, OPENVPN, IPSEC and GRE)(only for VPN version)

u Support local and remote firmware upgrade,import and export configure file.

u Support NTP, RTC embedded.

u Support mulitiple DDNS provider service.

u Support VLANs, MAC Address clone, PPPoE Server

u WIFI support 802.11b/g/n. support AP, client, Adhoc, Repeater, Repeater Bridge and WDS(optional) mode.

u WIFI support WEP,WPA,WPA2 encryption,Support RADIUS authentication and MAC address filter.

u Support multi online trigger ways, including SMS, ring and data. Support link disconnection when timeout

u Support APN/VPDN

u Support DHCP server and client, firewall, NAT, DMZ host , URL block, QoS, ttraff,statistics, real time link speed statistics etc.

u Full protocol support , such as TCP/IP, UDP, ICMP, SMTP, HTTP, POP3, OICQ, TELNET, FTP, SNMP, SSHD, etc.

u Schedule Reboot, Schedule Online and Offline,etc.

Cellular Module	Industrial cellular module
Standard and Band	LTE FDD 2600/2100/1800/900/800MHz, 700/1700/2100MHz(optional) HSPA+/HSDPA/HSUPA/WCDMA /UMTS900/2100MHz, 800/850/1900/2100MHz(optional) EDGE/GPRS/GSM 900/1800/1900MHz GPRS CLASS 10 GPRS CLASS 12
Bandwidth	LTE(DL:100 Mbps ,UL:50 Mbps ) HSUPA:5.76Mbps(Upload speed) HSDPA:7.2Mbps(Download speed) UMTS:384Kbps (DL/UL) HSPA+: 21 Mbps(Download speed) 5.76Mbps ( Upload speed )
TX power	< 32 dBm
RX sensitivity	<- 93.3 dBm

Item	Content
Standard	IEEE802.11b/g /n
Bandwidth	IEEE802.11b/g: 54Mbps (max) IEEE802.11n: 15 0Mbps (max)
Security	WEP, WPA, WPA2, etc. WPS (optional)

TX power	21.5dBm( 11g ), 26dBm ( 11b )
RX sensitivity	<-72dBm@54Mpbs

Hardware System

Item	Content
CPU	Industrial 32bits CPU
FLASH	8 MB(Extendable to 64 MB)
SDRAM	64 MB

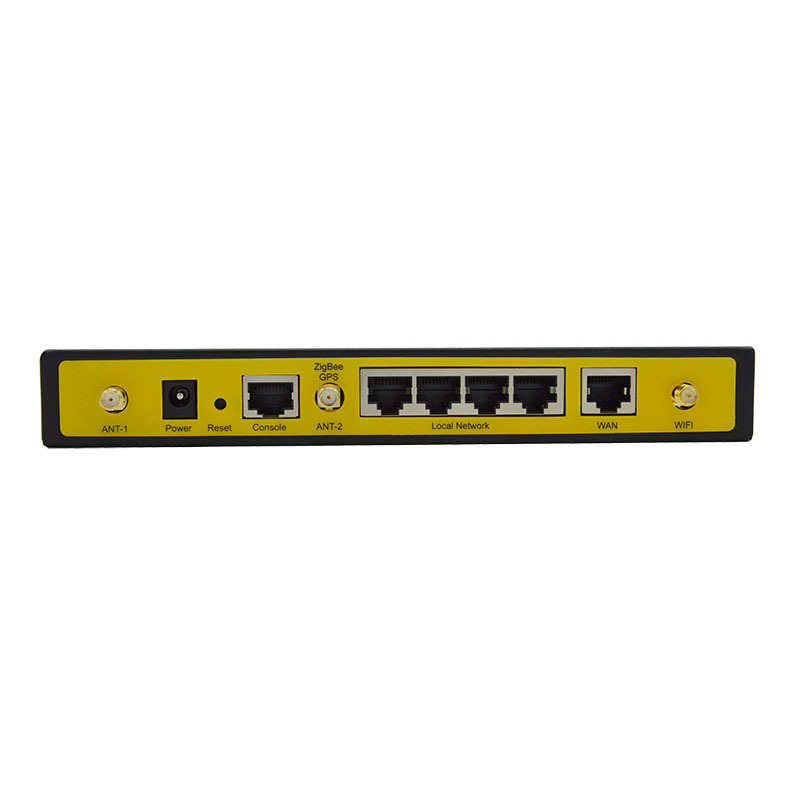

Interface type

Item
Content

WAN  1 10/100 Mbps WAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection

LAN  4 10/100 Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection

Serial 1 RS232(or RS485/RS422) port, 15KV ESD protection

Data bits: 5, 6 ,7, 8

Stop bits: 1, 1.5(optional), 2

Parity: none, even, odd, space(optional), mark(optional)

Baud rate: 2400~115200 bps

Indicator

"Power", "System", "Online-1", "Online-2", " Local Network ", "WAN", "WIFI", ” Signal Strength”.

Antenna

Cellular: 2 standard SMA female interfaces, 50 ohm, lighting protection(optional)

WIFI: Standard SMA male interface, 50 ohm, lighting protection(optional)

SIM/UIM
2 standard 3V/1.8V user card interfaces, 15KV ESD protection

Power
Standard 3-PIN power jack, reverse-voltage and overvoltage protection

Reset
Restore the router to its original factory default settings

Power supply

Standard Power
DC 12V/1.5A

Power range
DC 5~35V

Consumption
<500mA (12V)

Physical Characteristics

Housing

Iron, providing IP30 protection

Dimensions
206x135x28 mm

Weight
805g

Environmental Limits

Item
Content

Operating Temperature
-35~+75ºC(-31~+167°F)

Storage Temperature
-40~+85ºC (-40~+185°F)

Operating Humidity
95% ( unfreezing)
