Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SYNCOTEK
-
Power:
-
86L x 55W mm
-
Card Stacker Capacity:
-
120 pcs (0.76mm embossing card)
-
Capture Box Capacity:
-
25PCS
-
interface:
-
RS232
-
keyword:
-
card dispenser kiosk
-
Power supply:
-
DC 24V+/-5%
-
IC Card:
-
ISO7816
-
support cards:
-
RFID/IC/Magnetic card
-
recording method:
-
Dual-frequency phase-coherent method
-
IC contact:
-
500,000 passes min
Quick Details
-
Type:
-
Vending Machines
-
Dimension:
-
347L x 100W x 200H mm (with shutter)
-
After-sales Service Provided:
-
Video technical support, Online support
-
Warranty:
-
1 Year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SYNCOTEK
-
Power:
-
86L x 55W mm
-
Card Stacker Capacity:
-
120 pcs (0.76mm embossing card)
-
Capture Box Capacity:
-
25PCS
-
interface:
-
RS232
-
keyword:
-
card dispenser kiosk
-
Power supply:
-
DC 24V+/-5%
-
IC Card:
-
ISO7816
-
support cards:
-
RFID/IC/Magnetic card
-
recording method:
-
Dual-frequency phase-coherent method
-
IC contact:
-
500,000 passes min
What is the Overview of Interactive bank debit card vending dispenser Kiosk terminal/ticket vending card issuing dispernser Kiosk machine system ?

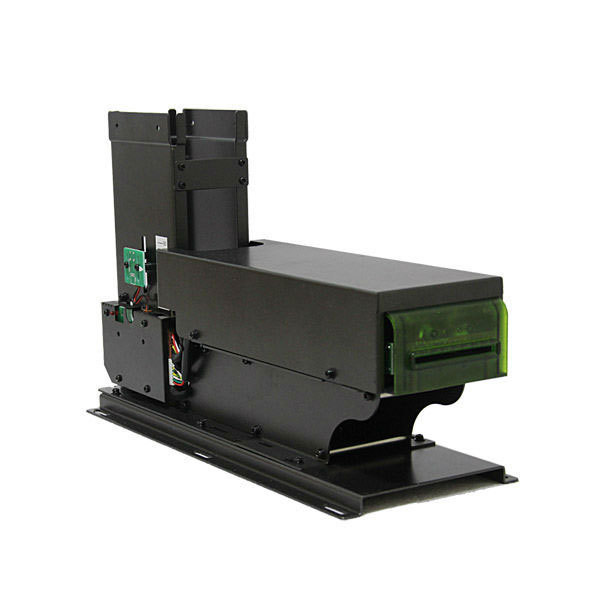

SK-AD6 series card issuing machine is a 3-in-1 card issuing and reading/writing device, which supports ISO14443 RF card and ISO7816 IC card R/W as well as ISO 7810/7811 magnetic card R. Therefore, it is widely used for the self-service terminals for membership card issuing and card issuing in electronic medical sector, transportation sector and that for account opening in banks.
What is the key features of Interactive bank debit card vending dispenser Kiosk terminal/ticket vending card issuing dispernser Kiosk machine system?
*Supports ISO7810/7811 magnetic card reading only
*Supports ISO7816-2 contact IC card reading/writing
*Supports ISO14443-A Type A/B card reading/writing
*Unique dispensing wheel design: is capable of issuing various embossing cards accurately
*Convenient and simple card adjustment design: is stable and accurate to dispense cards with various thicknesses
*Compact structure design: effectively saves space for the complete machine
*Rear card capture box: provides convenience for card management
*Simple collection channel design: satisfies user requirement for large collection amount
*Multiple sensors: are able to judge the card position and indicate the card status
*Protruding bezel: for anti-theft is available
*Bezel with LED light: provides card insertion indication and/or lighting and prevents the card being left inside
*Supports multiple communications (max. 16 C/Ds)
*Supports online upgrade program
What is the detailed specification of Interactive bank debit card vending dispenser Kiosk terminal/ticket vending card issuing dispernser Kiosk machine system?
|
Physical Characteristics |
In conformity with ISO 7810 /7811 |
||
|
Card Size |
In conformity with ISO 7810ID-1 |
||
|
Embossing Card |
In conformity with ISO 7811-1 /-3 |
||
|
Recording Format |
In conformity with ISO 7811-2 /-4 /-5 /-6 |
||
|
Recording Capacity |
Track 1 (IATA) |
Max. of 79 characters (6 bits + 1 parity) |
|
|
Track 2 (ABA) |
Max. of 40 characters (4 bits + 1 parity) |
||
|
Track 3 (MINTS) |
Max. of 107 characters (4 bits + 1 parity) |
||
|
Recording Method |
Dual-frequency phase-coherent method |
||
|
Height of Warped Card |
≤ 2mm |
||
|
Magnetic Coercivity |
24k~320k A/m (300~4000 Oe)+/-10% |
||
|
Card Supported |
86L x 55W mm (0.2~1.2mm thickness; factory standard: 0.8mm) |
||
|
Communication Method |
RS232 (optional) |
||
|
Anti-theft Function |
By protruding bezel and jitter card-in pattern. |
||
|
Operating Conditions |
Power Supply |
DC24V±5%, 3.0A |
|
|
Quiescent Current |
200mA |
||
|
Default Baud Rate |
9600BPS/sec. |
||
|
Card Stacker Capacity |
150 pcs (0.76mm standard card) |
||
|
120 pcs (0.76mm embossing card) |
|||
|
300 pcs (0.4mm thickness) |
|||
|
Capture Box Capacity |
25 pcs (0.76mm standard card) |
||
|
Service Life |
Issuing Life |
1,000,000 passes min. |
|
|
Magnetic Head |
500,000 passes min. |
||
|
IC Contact |
500,000 passes min. |
||
|
Operation Temperature / Humidity |
0°C to 50°C, 0 to 90% RH without condensation |
||
|
Storage Temperature / Humidity |
-20°C to 70°C, 0 to 90% RH without condensation |
||
|
Net Weight |
Approx. 2.8KG (excluding accessories and package) |
||
|
Dimension |
326L x 103W x 220H mm (without shutter) |
||
|
347L x 100W x 200H mm (with shutter) |
|||
1. Payment:
T/T, Western Union, MoneyGram, PayPal, D/A, D/P.
2. MOQ:
1pcs
3. Warranty :
1 years
Our products have acquired CE, FCC certification and RoHS compliance and NCC, KCC, EK improvement via Taiwan, Korea companies. Our products are with stability, conformity, high performance and competitive price. SYNCO has super excellent and experienced R&D team and sales engineer team which are the guarantee to provide our clients with superior products and service as well as OEM/ODM business.
We expect to cooperate with system integrators, strategic partners and product distributors.
