Quick Details
-
Place of Origin:
-
ZHE
-
Brand Name:
-
XXW
-
Model Number:
-
PCB or SMD
-

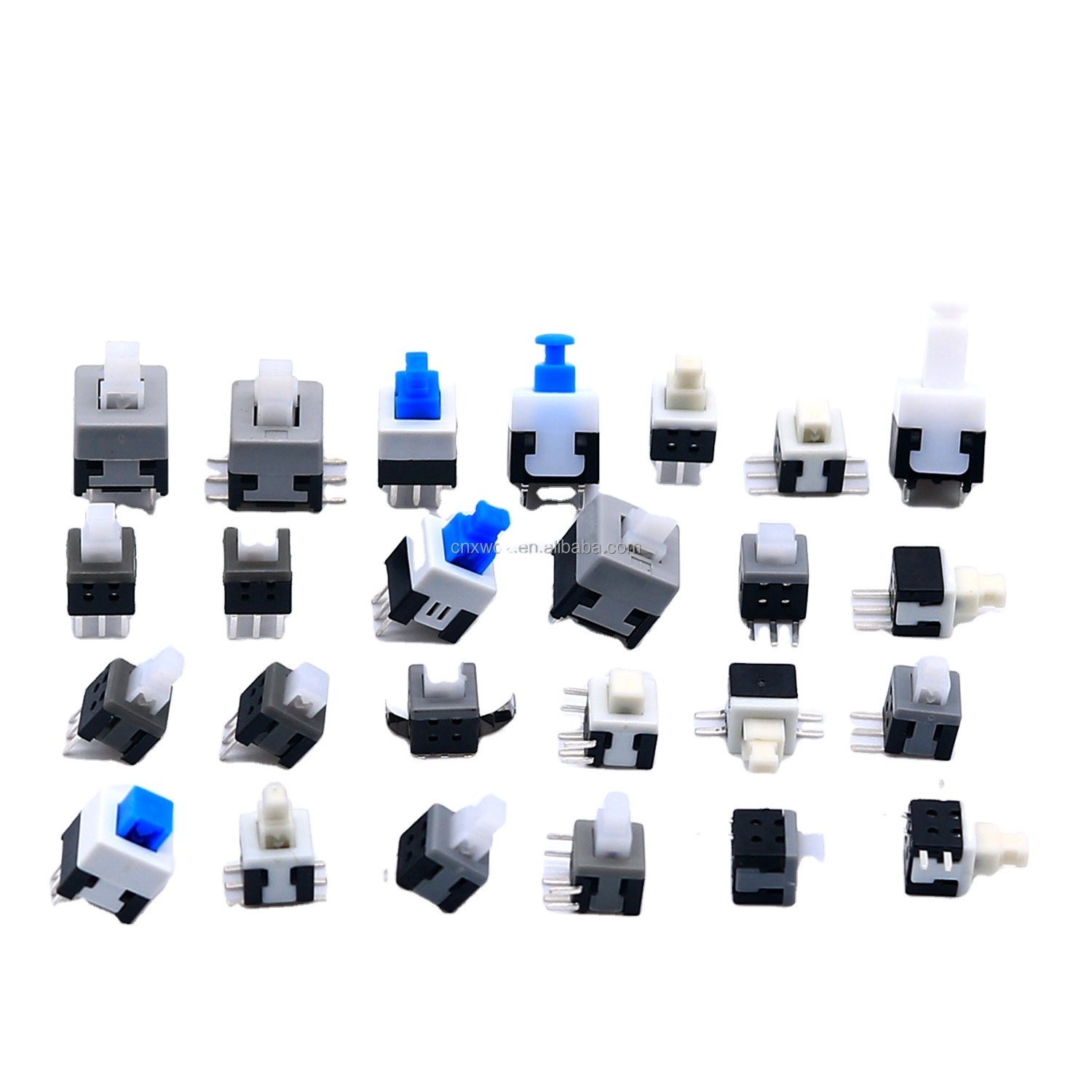

Product name:
-
Push Button Switch
-
Operation type:
-
Self-locking Momentory
-
Material:
-
Nickel Plated Brass
-
Function:
-
Momentary 1NO1NC
-
Mounting Hole Size:
-
5.8x5.8 7x7 8x8 8.5x8.5
-
Type:
-
SMD
-
Application:
-
Industrial Control
-
Product type:
-
Push Button Swicth
-
Size:
-
5.8x5.8 7x7 8x8 8.5x8.5
-
Terminal:
-
SMD Terminal
-
Certification:
-
CE CCC
Quick Details
-
Protection Level:
-
IP54 IK09
-
Max. Current:
-
3A
-
Max. Voltage:
-
250V
-
Place of Origin:
-
ZHE
-
Brand Name:
-
XXW
-
Model Number:
-
PCB or SMD
-
Product name:
-
Push Button Switch
-
Operation type:
-
Self-locking Momentory
-
Material:
-
Nickel Plated Brass
-
Function:
-
Momentary 1NO1NC
-
Mounting Hole Size:
-
5.8x5.8 7x7 8x8 8.5x8.5
-
Type:
-
SMD
-
Application:
-
Industrial Control
-
Product type:
-
Push Button Swicth
-
Size:
-
5.8x5.8 7x7 8x8 8.5x8.5
-
Terminal:
-
SMD Terminal
-
Certification:
-
CE CCC
|
Items
|
Standard
|
|
Operating temperature range
|
-30℃~~~~+85℃
|
|
Rating
|
10mA.30VDC
|
|
Insulation resistance
|
100MΩ min.500VDC
|
|
Dielectric Strength |
1000VAC, 50/60 Hz for 1 minute between terminals of the same polarity
|
|
|
1500VAC, 50/60 Hz for 1 minute between current-carrying and non-current-carrying metal parts
|
|
|
1500VAC, 50/60 Hz for 1 minute between each terminal and ground
|
|
Ambient temperature
|
Using: -20~+80℃ (With no icing)
|
|
Electrical Life
|
500,000 operations above
|
Q1: Are you a factory or trading company?
We are factory and produce all the products by our self. Welcome to our company for factory inspection.
Q2: What products does your factory mainly manufacture?
Our factory mainly produces rocker switch, push button switch, micro switch, tact switch, toggle switch, coding switch, self
locking&unlocked switch, ac&dc socket and etc.
Q3: How to guarantee our products?
we solemnly promise If there are any quality problems we will be 100% responsible for rectification.
Q4: Is it possible to customize the product according to our requirements?
You can provide us with your specific product requirements, we will manufacture the products you need individually for you.
Q5: Can you provide samples ? Are the samples free?
Yes, we can provide samples. Normally, we provide free samples for test or quality checking.
Q6: About the sample what is the cost of transportation?
The freight depends on weight, packing size and your country or province region, etc.
You can confirm goods by photo and video to save this money, If you become our old customer.
Q7: How to order?
Please contact us.
