Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZ CAD
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
OV LASER
-
Weight (KG):
-
68 KG
-
Core Components:
-
Laser source
-
Product Name:
-

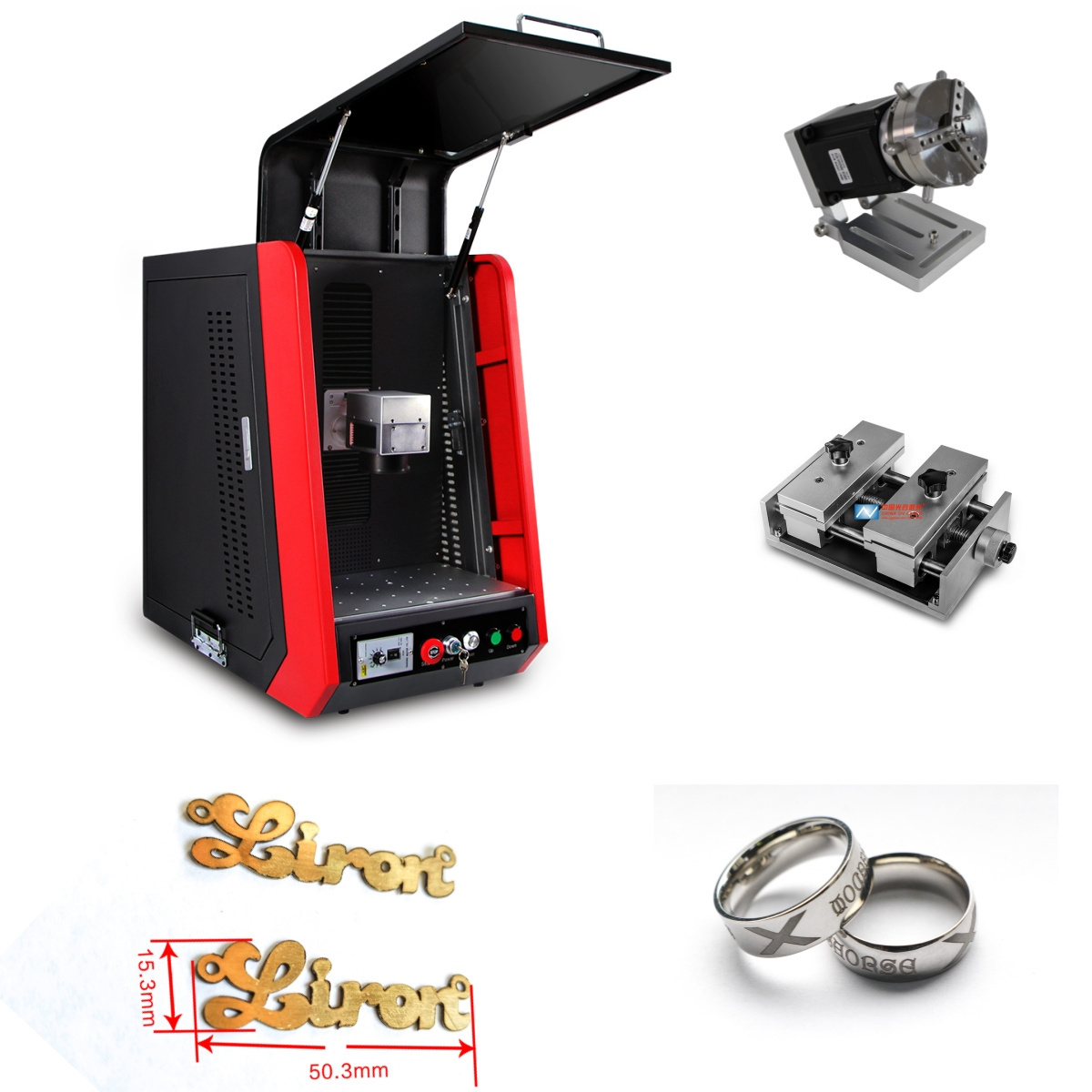

Fiber laser marking machine
-
Laser source:
-
JPT/Raycus/IPG
-
Laser head:
-
Sino-galvo Galvanometer
-
Marking Speed:
-
0-7000mm/s
-
Windows System:
-
Win XP / 7 / 8 / 10 (32 bit , 64 bit)
-
Fiber laser source lifespan:
-
80000 hours - 100,000 hours
-
Power Supply:
-
AC220V/110V +10% / 50HZ or 60HZ
-
After-sales Service Provided:
-
Online support
Quick Details
-
Working Accuracy:
-
0.001mm
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZ CAD
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
OV LASER
-
Weight (KG):
-
68 KG
-
Core Components:
-
Laser source
-
Product Name:
-
Fiber laser marking machine
-
Laser source:
-
JPT/Raycus/IPG
-
Laser head:
-
Sino-galvo Galvanometer
-
Marking Speed:
-
0-7000mm/s
-
Windows System:
-
Win XP / 7 / 8 / 10 (32 bit , 64 bit)
-
Fiber laser source lifespan:
-
80000 hours - 100,000 hours
-
Power Supply:
-
AC220V/110V +10% / 50HZ or 60HZ
-
After-sales Service Provided:
-
Online support
led bulb laser printing machine vin number marking machine zippo lighter metal engraving machine
Specification
Function Introduction:
1) Marking logo, text, time, serial and part number, QR code, barcode, 2D code, bitmap, pictures and images.
2) Fiber laser marking all kinds of metal and some kinds of nonmetal.
3) Fiber laser marking machine can deep engraving and cutting gold silver brass jewelry for names, rings, bracelets, necklaces, pendants, tags.
4) Mopa fiber laser can mark colors on stainless steel and titanium. Mark balck on anodized aluminum and plastic.
1) Marking logo, text, time, serial and part number, QR code, barcode, 2D code, bitmap, pictures and images.
2) Fiber laser marking all kinds of metal and some kinds of nonmetal.
3) Fiber laser marking machine can deep engraving and cutting gold silver brass jewelry for names, rings, bracelets, necklaces, pendants, tags.
4) Mopa fiber laser can mark colors on stainless steel and titanium. Mark balck on anodized aluminum and plastic.
5) The 2.5D and 3D fiber laser marking machine can relief engrave 3D mould on metal, and mark on curved surface for both metal and plastic.
(We can provide customized services according to your special needs)
Technical Parameters:
(We can provide customized services according to your special needs)
Technical Parameters:
|
Fiber Laser Marking Engraving and Cutting Machine Specifications
|
|
|
|
|||
|
Model
|
OV SF-20/30/50/100
|
Cooling Mode
|
Air Cooling
|
|||
|
Power
|
20W/30W/50W/100W
|
Marking Speed
|
7000mm/s
|
|||
|
Laser Source
|
Raycus/ IPG/ JPT/MAX
|
Minumum Line Width
|
0.015mm
|
|||
|
Pulse Frequency
|
20Khz-60Khz/50-100Khz
/1-4000Khz
|
Minumum Character
|
0.2mm
|
|||
|
Field Lens Brand
|
Singapore Wavelength
|
Laser Wavelength
|
1064μm
|
|||
|
Marking Area
|
110mm*110mm, optional 70mmx70mm, 175mm×175mm 300*300mm or more
|
Operating Environment
|
5℃-45℃, clean or dust-free
|
|||
|
Control Card
|
JCZ Brand EZCAD
|
Power Supply
|
AC220V or 110V plug
|
|||
|
Operating System
|
Win XP /7/ 8/ 10 (32 bit, 64bit)
|
Warranty
|
3 years
|
|||
Product Description
Sample show
|
Application & Samples
|
|
|
|
Jewelry & Acessories:
|
Rings, Pendant, Bracelet, Necklace, Sunglasses, Watches etc.
|
|
|
Electronic Components:
|
Phone, IPAD, Resistors, Capacitors, Chips, Printed Circuit Boards, etc.
|
|
|
Mechanical Parts:
|
Bearings, Gears, Standard Parts, Motor, etc.
|
|
|
Electronics:
|
Iphone, IPAD, Ipod, Keyboard and more standard parts.
|
|
|
Instrument:
|
Panel Board, Nameplates, Precision equipment, etc.
|
|
|
Hardware Tools:
|
Knives, Tools, Measuring Tools, Cutting Tools, etc.
|
|
|
Automobile Parts:
|
Pistons&Rings, Gears, Shafts, Bearings, Clutch,Lights
|
|
|
Handicrafts:
|
Zipper, Lighter, Key Holder, Souvenir,etc.
|
|
Mopa laser marking colors
Mopa fiber laser machine can mark colors on stainless steel and titanium
Laser marking curve surface
2D and 3D fiber laser mark curve surface on brass gold silver spoons
Laser marking steel knife
Fiber laser mark white black and also deep engraving logo on knives.
Fiber laser mark black white logo on large size steel aluminum copper.
Engrave bitmap, images, names on tungstan name tag, rings, bracelets.
Fiber laser marker can both engrave and cut gold silver jewelry 1mm thick.
Deep engraving on brass gold silver and hard steel for gun, jewelry, watch, metal crafts and tools.
Fiber laser marking security seal lock with 300x300mm printing size. Conveyor table can be customized.
Fiber laser mark both metal and plastic pen, straw or similar pipes.
Plastic marking samples
MOPA color marking sample
2.5D & 3D Samples
The newest 2.5D machine is composed by the motorized Z axis and EZCAD 3.0 software, mainly used for coin relief engraving, metal mould deep engraving, metal sheet engraving and cutting etc., but cheaper than the 3D machine.
2.5D laser for jewelry & coin relief engraving, necklace cutting etc.
2.5D laser for jewelry & coin relief engraving, necklace cutting etc.
2.5D laser for gun, knife, metal relief engraving
Lastest 3D galvo laser machine for curved surface marking for choice
