Quick Details
-
Power (kW):
-
1
-
Range of Spindle Speed(r.p.m):
-
1 - 5 r.p.m
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Lith
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
Customized
-
Weight (KG):
-
35 KG
-
Marketing Type:
-
Hot Product
Quick Details
-
Output (kg/h):
-
0.2 - 1 kg/h
-
Feeding Size (mm):
-
0 - 1 mm
-
Output Size (mesh):
-
0 - 12500 mesh
-
Power (kW):
-
1
-
Range of Spindle Speed(r.p.m):
-
1 - 5 r.p.m
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Lith
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
Customized
-
Weight (KG):
-
35 KG
-
Marketing Type:
-
Hot Product

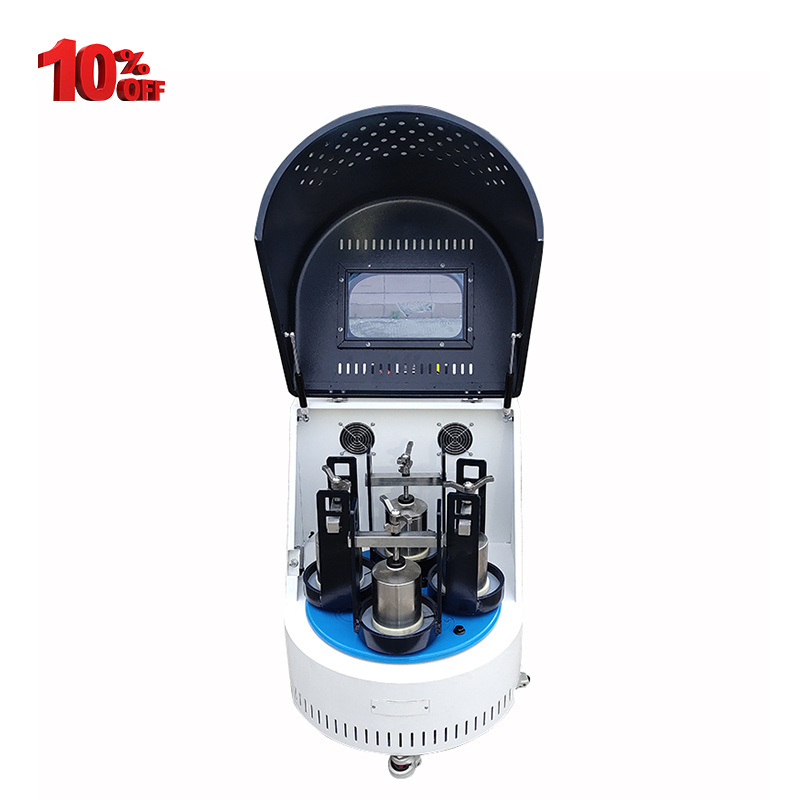

Laboratory Small Planetary Ball Mill Vertical Ball Grinder with An Optional 50ml or 80ml Jar
|
Overview |
JT-80 high-speed vibrating ball mill is a high-efficiency small-scale instrument used for laboratory sample (small and trace) preparation. |
|
Working principle |
The instrument has rotational oscillation and vibration three-dimensional motion during grinding,and the collision energy is higher than other types of ball mills. |
|
Advantage |
The instrument is small in size, light in weight, high in efficiency and cheap in price. |
|
Scope of application |
High-speed vibrating ball mill can use dry and wet methods to ball mill or mix various solids, suspensions and pastes with different particle sizes and materials. It can be used for material grinding, mixing and mechanical alloying. |
Schematic diagram of high-speed vibrating ball mill
1. Compression spring 2. Motor 3. Bearing seat 4. Ball mill jar 5. Pressure plate 6. Swing head 7. V-belt
Parameter
|
Model |
JT-80 |
|
Specification |
50ml,80ml |
|
Technical indicators |
Maximum filling volume per tank: one third of the volume of the ball mill tank |
|
Feed particle size |
<1mm |
|
Discharge particle size |
Minimum to 0.1um |
|
Swing frequency |
1200 weeks/min |
|
Timing range |
0~9999 seconds and normally open |
|
Motor Specifications |
Single phase 220v 180W |
|
Motor frequency |
50Hz |
|
Dimensions |
405×365×260 (mm) |
|
Features |
The high-speed vibrating ball mill has an eccentric pendulum shaft. When the motor runs at a high speed, the tank body swings eccentrically; it drives the entire bracket to vibrate up and down, so that the grinding process is completed in a three-dimensional space of high-speed swing and vibration. Greatly improve the speed and efficiency of grinding. |
Standard Configuration
|
Ball mill jar material type |
Picture |
|
80ml stainless steel(1Cr18NiTi) |
|
|
50ml agate jar |
|
|
50ml ceramic jar |
|
|
50ml nylon jar |
|
Optional
|
50ml teflon tank |
|
|
50ml zirconia tank |
|
|
80ml stainless steel vacuum tank |
|
|
Stainless steel ordinary jacket |
|
|
Vacuum stainless steel jacket |
|
|
Standard number of grinding balls per jar |
Φ10 20 pcs, Φ20 4 pcs |
Product Image
