Pipe jacking machines XDN1800-S made in jiangsu china and pipe jacking machine auxiliary material with optional accessories

Pipe jacking machines XDN1800-S made in jiangsu china and pipe jacking machine auxiliary material with optional accessories

FOB Reference Price: Get Latest Price

≥4 Cubic meter

US $30000

≥10 Cubic meter

US $25000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight:: 50000 kg

Main jacking cylinder:: 2000kN (S=3500mm)

Main jacking pump station:: 1500L

Mud pump:: 30KW

Electric cable:: 120mm²

Pipe Clamp:: 5"

Elbows for mud systems:: 5"

Elbow:: 1"

Opening waterstop-ring:: DN1800

Laser transmitter:: 200m

Mixing drum:: GAT2

Quick Details

Marketing Type:: New Product

Place of Origin:: Jiangsu, China

Brand Name:: Chinese Top Brand

Weight:: 50000 kg

Main jacking cylinder:: 2000kN (S=3500mm)

Main jacking pump station:: 1500L

Mud pump:: 30KW

Electric cable:: 120mm²

Pipe Clamp:: 5"

Elbows for mud systems:: 5"

Elbow:: 1"

Opening waterstop-ring:: DN1800

Laser transmitter:: 200m

Mixing drum:: GAT2

PRODUCT DISCRIPTION

XDN1800-S

1. The electric-driven flat pipe jacking machine is mainly suitable for ordinary soil layers and sand layers, and has high construction efficiency especially in silt and quicksand strata.

2. The excavation surface has good support effect, small ground settlement, and controllable surface deformation.

3. The cutter head speed, jacking speed, and mud flow rate can be adjusted
steplessly, and the equipment has good controllability.

4. Human-computer interactive console dynamically displays the operating parameters and working status of each component.

CONTACT

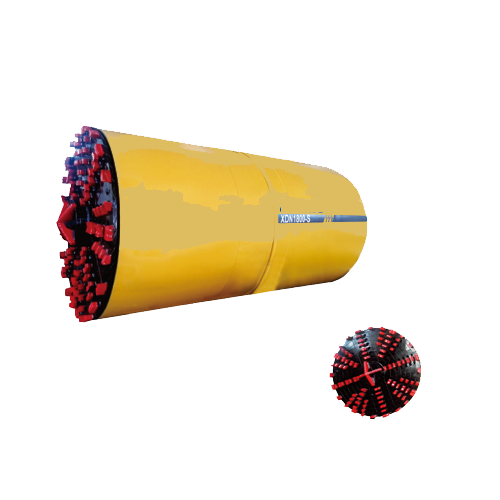

PRODUCT PICTURE

PRODUCT PARAMETER

Model	Cutterhead power (kW)	Maximum speed of cutterhead ( r/min)	Cutterhead power(t)	Mud inlet and discharge pipe diameter(mm)	Outer diameter × length (mm）
XDN800-S	30×1	5.7	63×3	100	φ980×3000
XDN1000-S	30×1	5.7	63×3	100	φ1220×3000
XDN1200-S	22×2	4.4	63×4	100	φ1460×4150
XDN1350-S	22×2	4.4	63×4	100	φ1640×4150
XDN1400-S	22×2	4.4	63×4	100	φ1700×4150
XDN1500-S	30×2	4.2	80×4	125	φ1820×4570
XDN1600-S	30×2	4.2	80×4	125	φ1940×4520
XDN1650-S	30×2	4.2	80×4	125	φ2000×4520
XDN1800-S	30×3	4.2	100×4	125	φ2180×4520
XDN2000-S	30×3	4.2	120×4	125	φ2420×4520
XDN2200-S	30×4	3.2	150×4	150	φ2670×4935
XDN2400-S	30×4	3.2	150×4	150	φ2910×4935
XDN2600-S	30×5	3.2	200×4	150	φ3150×4935
XDN2800-S	30×5	3.2	200×4	150	φ3390×4935
XDN3000-S	37×6	2.8	200×4	150	φ3630×4735
XDN3200-S	37×6	2.8	155×8	150	φ3860×4735
XDN3500-S	37×6	2.6	200×8	150	φ4130×4900
XDN4000-S	37×8	2.6	200×8	150	φ4830×4900
