- Product Details
- {{item.text}}
Quick Details
-
Brick size:
-
390x190x190, 390x240x190, 390x150x190, 390x115x190
-
Processing:
-
Vibrate up and down
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
QT
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
900X800X1260mm
-
Marketing Type:
-
New Product 2022
-
Core Components:
-
Other
-
Weight (KG):
-
200 kg
-
type:
-
brick machinery
-
Custom processing:
-
Yes
-
transfer method:
-
vibration
-
Excitation frequency:
-
2500 (times/min)
-
molding cycle:
-
30 seconds
-
greatest pressure:
-
5 (KN)
-
vibration frequency:
-
50 (hz)
-
working pressure:
-
20 (Mpa)
-
Installed capacity:
-
2.2 (kw)
-
main vibration form:
-
Vibrate up and down
Quick Details
-
Type:
-
Hollow Block Making Machine
-
Brick Raw Material:
-
Sand, gravel, cement, etc.
-
Production Capacity (Pieces/8 hours):
-
1000 pcs/8hours
-
Brick size:
-
390x190x190, 390x240x190, 390x150x190, 390x115x190
-
Processing:
-
Vibrate up and down
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
QT
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
900X800X1260mm
-
Marketing Type:
-
New Product 2022
-
Core Components:
-
Other
-
Weight (KG):
-
200 kg
-
type:
-
brick machinery
-
Custom processing:
-
Yes
-
transfer method:
-
vibration
-
Excitation frequency:
-
2500 (times/min)
-
molding cycle:
-
30 seconds
-
greatest pressure:
-
5 (KN)
-
vibration frequency:
-
50 (hz)
-
working pressure:
-
20 (Mpa)
-
Installed capacity:
-
2.2 (kw)
-
main vibration form:
-
Vibrate up and down
Product Description
Features

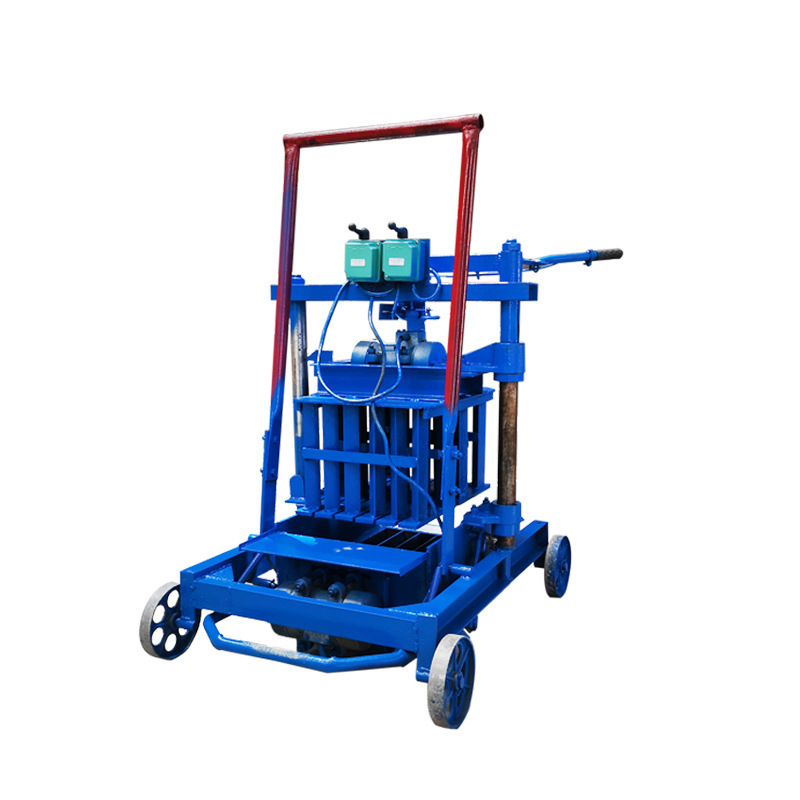

This small mobile brick making machine is a new simple and easy-to-use push-pull cement-free burning block machine developed by our company according to the needs of the backward market. The ideal device to make you rich.
The small mobile cement-free brick making machine can produce standard bricks, hollow (hollow) bricks, (the mold model can be changed to triangle, hexagonal and other special-shaped molds). It can be operated by one person, and the produced bricks have smooth surface, high strength, firmness and good heat insulation.
Due to the simple structure, easy operation and convenient maintenance of the small mobile cement-free brick making machine, this model has a good development space.
Features and advantages:
1. The body is all welded with strong square steel, which is strong and resistant to vibration and has stable performance.
2. The mold box adopts column sliding, with compact coordination, synchronous and stable lifting, and the block forming rate is greatly improved.
3. The pressing head can slide and shift, which is convenient for mould box cloth and greatly improves the efficiency.
4. It is installed on the lifting part of the mold box to prevent the press head from damaging the machine in action.
5. When the vibration is applied, the vibration is excited at the same time, so that the four walls of the mold box are equally stressed, so as to achieve the forming effect, and ensure that the block density is high, and the edges and corners are neat and beautiful.
Applicable raw materials
Sand, gravel and cement can be used, and various industrial wastes such as fly ash, slag, steel slag, coal gangue, ceramsite and perlite can be added in large quantities.
Application field
Various exterior wall blocks, interior wall blocks, flower wall blocks, floor blocks, berm blocks, interlocking pavement blocks and curbstone blocks can also be produced. Scope of application: Widely used in construction, roads, squares, hydraulic works, gardens and other constructions
Specification
|
Block size (mm)
|
Number of blocks per mold
|
Remark
|
|
390x190x190
|
2
|
Single, double and triple rows of holes
|
|
390x240x190
|
1
|
Single, double and triple rows of holes
|
|
390x150x190
|
2
|
Through hole, blind hole
|
|
390x115x190
|
3
|
Through hole, blind hole
|
|
240x115x53
|
12
|
SS
|
Packing & Delivery
1. When the goods are transported by wooden box packaging, our goods are well protected.
2. It is convenient to count the goods.
3. The wooden box is assembled by some materials, and the packing items are very tight, which can ensure the safety of the goods.
