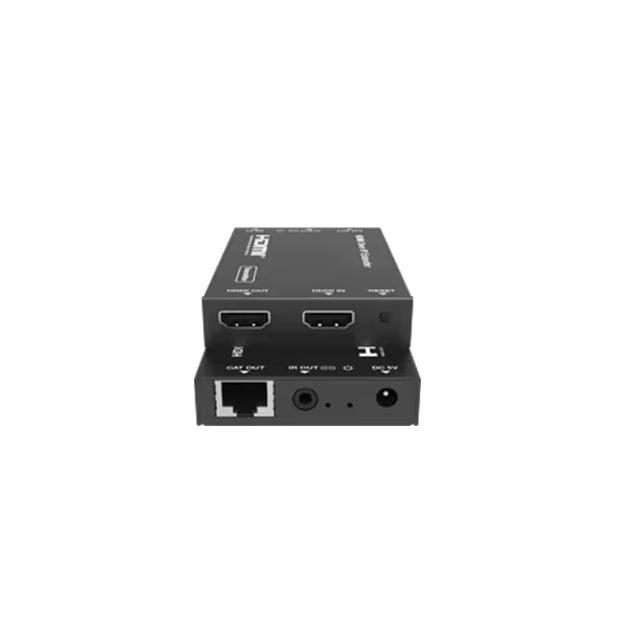

Hdmi extender over ethernet network switch 1080P support many to many 100m video wall function WEB GUI
Hdmi extender over ethernet network switch 1080P support many to many 100m video wall function WEB GUI
Hdmi extender over ethernet network switch 1080P support many to many 100m video wall function WEB GUI
Hdmi extender over ethernet network switch 1080P support many to many 100m video wall function WEB GUI
Hdmi extender over ethernet network switch 1080P support many to many 100m video wall function WEB GUI
Hdmi extender over ethernet network switch 1080P support many to many 100m video wall function WEB GUI
Hdmi extender over ethernet network switch 1080P support many to many 100m video wall function WEB GUI
Hdmi extender over ethernet network switch 1080P support many to many 100m video wall function WEB GUI

Hdmi extender over ethernet network switch 1080P support many to many 100m video wall function WEB GUI

FOB Reference Price: Get Latest Price
≥1 Sets
US $120
≥10 Sets
US $110
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Product name:
IP extender
Transmission distance:
328ft / 100m via CATE5E/6/6A/7
Resolution:
1920x1200@60Hz 4:4:4
Video Bandwidth:
4.95Gbps
point-to-point:
yes
audio:
LPCM 2.0CH (32/44.1/48KHz) audio format
POE:
Yes
Video wall:
yes (max 9x9 )
Many to many:
yes
Web:
yes

Quick Details

Brand Name:
KEQINX
Model Number:
IP205V
Place of Origin:
SHENZHEN
Product name:
IP extender
Transmission distance:
328ft / 100m via CATE5E/6/6A/7
Resolution:
1920x1200@60Hz 4:4:4
Video Bandwidth:
4.95Gbps
point-to-point:
yes
audio:
LPCM 2.0CH (32/44.1/48KHz) audio format
POE:
Yes
Video wall:
yes (max 9x9 )
Many to many:
yes
Web:
yes
Product Description

Product Name :

hdmi extender over ethernet network switch 1080P support many  to many 100m video wall function WEB GUI

Introduction :

The AV over IP product distributes multiple HD contents to multiple HD display
devices over a 100M/1G Network Switch. It offers configurable high quality,
low-bandwidth H.265/H.264 configurable compression video and supports
resolution up to 1920x1200@60Hz 4:4:4. Signal transmission distance can be
extended up to 328ft / 100m via CATE5E/6/6A/7 cable. The product supports
analog audio embedding and extracting. It also supports RS-232 control
(pass-through & Guest mode) and single-machine control (without a Controller
Box, matrix switching can be realized with panel buttons or RS-232 control) .

Features :

HDMI 1.3 and HDCP 1.4 compliant
Video resolution up to 1920x1200@60Hz 4:4:4
Support 4.95Gbps video bandwidth
Signal transmission distance can be extended up to 328ft / 100m via
CATE/6/6A/7 cable
Support point-to-point signal extension
Support signal distribution, multicast mode, distributed matrix and video
wall ( up to 9 x 9 ) functions over a 1G Network Switch
Intelligent video wall management makes it achievable of novel layout of
wall configurations
Support LPCM 2.0CH (32/44.1/48KHz) audio format
Support audio embedding and extracting
Support RS-232 control (pass-through & Guest mode)
Support main stream and sub stream encoding modes
Stream parameters can be configured via Web GUI or Controller Box
Controlled via panel buttons, RS-232, TCP/IP, Web GUI and Controller Box
Support POE function (802.3af Class 3, PD mode)
Smart networking design for easy and flexible installation

Packing List :

Encoder

1x 1080P over IP 100M/1GbE

Encoder
2x 3-pin Phoenix Connector
(3.81mm, male)
4x Machine Screw (KM3, 4mm)
2x Mounting Ear
1x 12V/1A Locking Power Adapter
1x User Manual

Decoder

1x 1080P over IP 100M/1GbE

Decoder
2x 3-pin Phoenix Connector
(3.81mm, male)
4x Machine Screw (KM3, 4mm)
2x Mounting Ear
1x 12V/1A Locking Power Adapter
1x User Manual

Specifications :

Use Diagram :

Web GUI user guide

You can use the built-in Web GUI to configure all products through a Switch.
The operation method is shown as below.
Step 2: Connect the PC and IP products you need to configure to a Switch.
Step 3: Press and hold the (CH SELECT) UP button on the front panel of the
Encoder/Decoder for 5 seconds to check the IP address. (Please refer to
Chapter 5 for details.)
Step 4: Set the PC’s IP address to be in the same network segment with the
Encoder/Decoder, for instance, set the IP address to be 169.254.3.150 and
Subnet mask to be 255.255.0.0.
Step 5: Input the IP address of the Encoder/Decoder into the browser on PC to
enter the Web GUI login interface.
Step 6: Input the default User “admin” and the default Password “admin”,
and then click “Log In” to enter the Web GUI interface.
