Quick Details
-
Customized support:
-
Online technical support, Customized logo, OEM, ODM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ELP
-
Model Number:
-
ELP-USB500W05G-SFV(5-50)
-
Video Compression Format:
-
MJPEG/YUY2
-
Lens:
-
5-50MM CS lens
-
Support PC system:
-
Android Linux , windows
-
housing size:
-
41*41mm
-
Max resolution:
-
2592 (H) x 1944 (V) pixels
-
video out:
-
Mjpeg YUY2
-
Shutter Type:
-
Electronic rolling shutter / Frame exposure
-
Free Drive Protocol:
-
USB Video Class(UVC)
-
Adjustable parameters:
-
Brightness, Contrast, Saturation, Sharpness, White balance, Exposure
-
power supply:
-
DC 5V USB BUS POWER 4P-2.0mm socket
-
Channels:
-
1
Quick Details
-
Special Features:
-
Vari focal lens usb camera
-
Network:
-
SDK
-
Function:
-
Manually zoom & focus
-
Customized support:
-
Online technical support, Customized logo, OEM, ODM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ELP
-
Model Number:
-
ELP-USB500W05G-SFV(5-50)
-
Video Compression Format:
-
MJPEG/YUY2
-
Lens:
-
5-50MM CS lens
-
Support PC system:
-
Android Linux , windows
-
housing size:
-
41*41mm
-
Max resolution:
-
2592 (H) x 1944 (V) pixels
-
video out:
-
Mjpeg YUY2
-
Shutter Type:
-
Electronic rolling shutter / Frame exposure
-
Free Drive Protocol:
-
USB Video Class(UVC)
-
Adjustable parameters:
-
Brightness, Contrast, Saturation, Sharpness, White balance, Exposure
-
power supply:
-
DC 5V USB BUS POWER 4P-2.0mm socket
-
Channels:
-
1

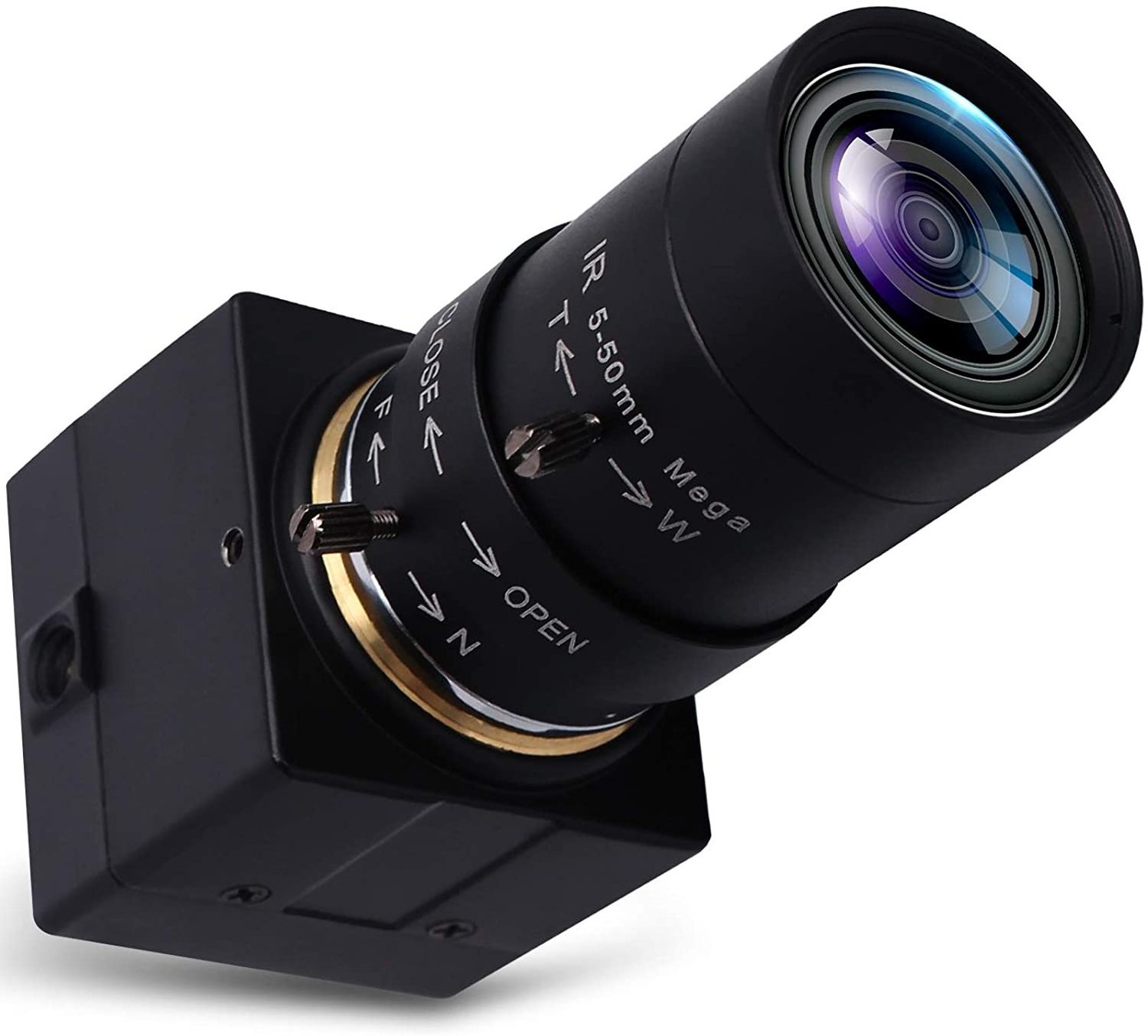

Free driver 5mp Aptina sensor 5-50mm varifocal lens zoom USB Camera for android parking system
Features:
* 5MP Aptina Sensor 5-50MM CS lens Mini USB Camera
* 1/2.5 ” Aptina MI5100 CMOS sensor for high quality image
* With HD 5-50MM CS lens
* Metal mini box camera housing for embedded application
* MJPEG/YUY2 dual video format optional
* High speed USB 2.0 plug&play port - suitable for any PC with USB 2.0 interface
* Low power consumption - ideal for portable equipment.
* UVC compliant - support Windows, Linux, Android system with UVC
* Support USB2.0 OTG Protocol - Can be external camera for mobile phone, Tablet and other device which support OTG
Specification:
| Model | ELP-USB500W05G-SFV(5-50) |
| Sensor | Aptina MI5100 |
| Lens Size | 1/2.5 inch(4:3) |
| Pixel Size | 2.2um |
| image area | 5.7mm x 4.28mm |
| Max. Resolution | 2592(H) X 1944(V) |
| Compression format | MJPEG / YUV2(YUYV) |
| Resolution & frame |
2592x1944 @ 15fps MJPEG / 2048x1536 @ 15fps MJPEG
1600x1200 @ 15fps MJPEG / 1280x1024 @ 15fps MJPEG 1920x1080 @ 30fps MJPEG / 1280x720 @ 30fps MJPEG 800x600 @ 30fps MJPEG / 640x480 @ 30fps MJPEG |
| S/N Ratio | 38dB |
| Dynamic Range | 70dB |
| Sensitivity | 1.4V/lux-sec@550nm |
| Mini illumination | 0. 1lux |
| Shutter Type | Electronic rolling shutter / Frame exposure |
| Connecting Port type | USB2.0 High Speed |
| Free Drive Protocol | USB Video Class(UVC) |
| Support OTG Protocol | USB2.0 OTG |
| AEC | Support |
| AEB | Support |
| AGC | Support |
| Adjustable parameters |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White balance, Backlight Contrast, Exposure |
| Lens Parameter | 5-50MM CS lens |
| LED board control interface | Support 2P-1.25mm socket |
| LED board power connector | Support 2P-2.0mm socket |
| Power supply | USB BUS POWER 4P-2.0mm socket |
| Operating Voltage | DC5V |
| Working current | 150mA~200mA |
| Working temperature | -10~70℃ |
| Storage temperature | -20~85℃ |
| Board size /Weight | 38X38mm(Compatible 32X32mm)/ about 30g |
| Cable | Standard 1M / 2M,3M,5M optional |
| Operating system request |
WinXP/Vista/Win7/Win8
Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC |
