Quick Details
-
Gear:
-
-1,0,1,2
-
Tillage deepth/width(mm):
-
150-300/1050
-
Product Name:
-
DIESEL MOTOCULTOR
-
Productivity (hm2/h):
-
>=0.06
-
Weight(KG):
-
108
-
Engine Model:
-
KM178F
-
The output power kw(HP)/rpm:
-
6(4.0)/3600
-
Fuel tank capacity(L):
-
3.5
Quick Details
-
Place of Origin:
-
Chongqing, China
-
The transmission way:
-
Direct gear transmission
-
Clutch way:
-
Wet friction plate
-
Gear:
-
-1,0,1,2
-
Tillage deepth/width(mm):
-
150-300/1050
-
Product Name:
-
DIESEL MOTOCULTOR
-
Productivity (hm2/h):
-
>=0.06
-
Weight(KG):
-
108
-
Engine Model:
-
KM178F
-
The output power kw(HP)/rpm:
-
6(4.0)/3600
-
Fuel tank capacity(L):
-
3.5

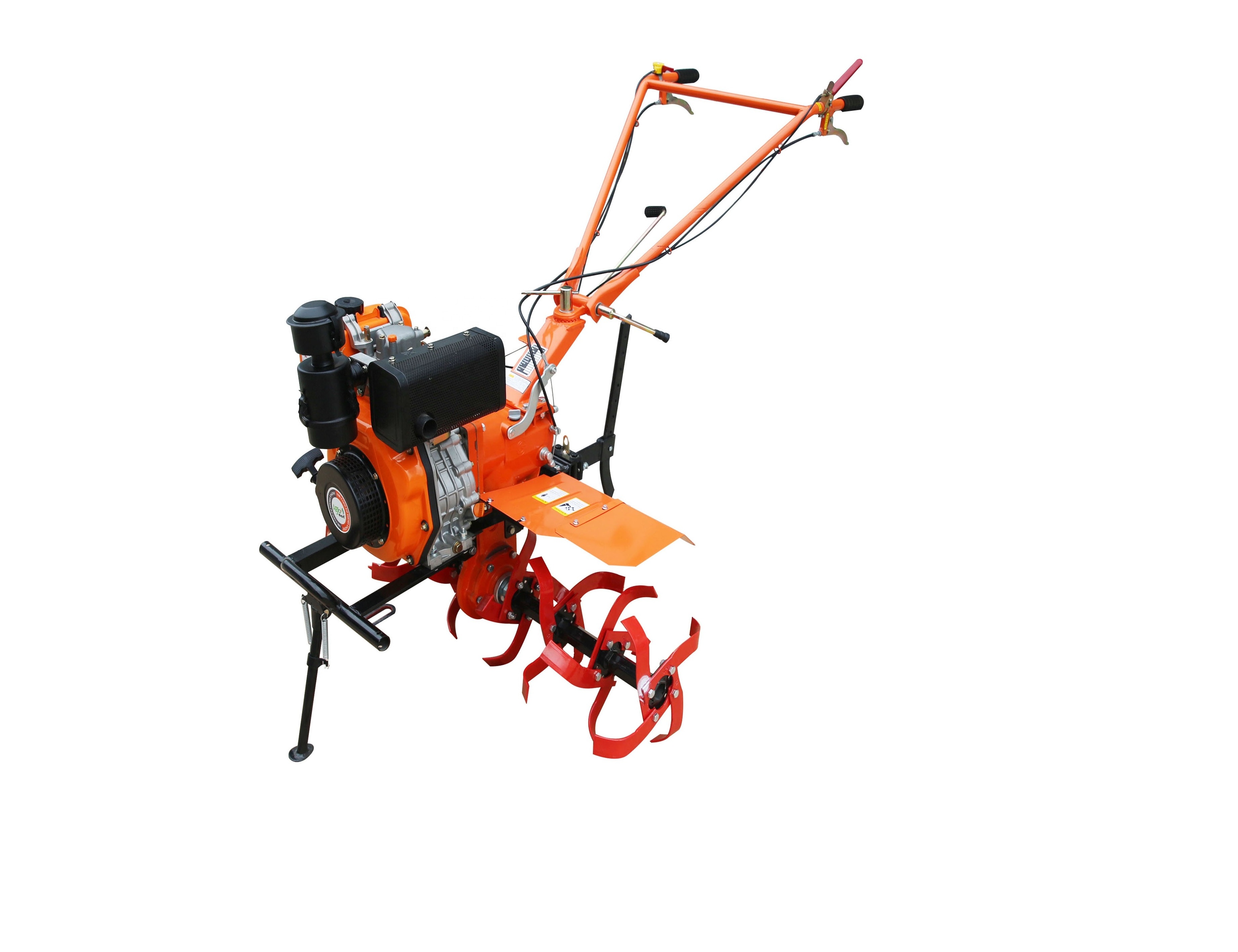

DIESEL MOTOCULTOR
| Tiller type: Diesel power tiller | ||
| Tiller | MODEL | GT1050DC |
| Transmission | gear transmission | |
| Clutch way | Wet Friction Plate | |
| Gear box | Cast iron gearbox | |
| Gear shifting | -1,0,1,2 | |
| Tillage deepth | 150-300mm | |
| Tillage width | 1050mm | |
| Productivity (hm2/h) | 0.04 | |
| Wheel | 400-8 | |
| Blades | 4pcs4group,32blades | |
| N.W/G.W | 110/120KG | |
| Engine | Engine model | 178FC |
| Engine Type | Diesel engine,single cylinder,4 stroke, air cool | |
| Displacement | 296cc | |
| Bore&stroke | 78*62mm | |
| rated max power | 4.KW (7HP)/3600rpm | |
| Fuel tank capacity | 3.5L | |
| Oil capacity | 0.6L | |
| starting | Recoil Start(hand start) | |
| Other | Packing | carton case /wooden case |
| Dimenstion | 1080x520x790MM | |
| 20GP Container | 68Sets | |
| 40HQ container | 144Sets | |
1. Handrail frame 2.Type T lock handle 3.Diesel engine 4.Bumper 5.Drive box
6. Drive shaft 7 .Gear shift lever 8.Handrail pedestal 9.Gear shift arm
10. Deep furrowing drag strut 11.Fender 12.Connecting frame 13.Tow-bar
14. Tyre/Blade
Detailed description
1.Type T lock handle :The handrail ’ s direction can be adjusted at 360 degrees
2.Original KAMA engine: The best diesel engine made in China, a real 9HP diesel engine. Reliable and
powerful.
3.Bumper:The engine can be effectively protected
4.Gear shift lever: This machine has 3 gears,2 forward gears and a reverse gear.You can adjust the different gear
by this lever.
5.Deep furrowing drag strut:You can adjust this to adjust the depth of the tillage.
6.Fender:The fender uses waterproof paint.the double fender ’ s width can be adjusted according the blades
length.
7.Tow-bar:It can be connected with trailer,furrow,etc.
8.Tyre/Blade: Tyre 3.50-6, 4.00-8, 5.00-12 are optional. Blade It can be equipped with dry land blade,paddy
wheel and anti-wrap blade,etc.
The Main Features
Suitable for the plains, mountains, hilly area of paddy field, dry and vegetable greenhouses, especially suitable
for mountain terraces, Small piece of farmland and deep mud field operations. It can be completed to do farm
works of rotary tillage, weeding, deep plough ing , ridging, ditching, sowing, fertilizing, spraying ch e micals etc.
equipped with reference supporting facilities.
Mini tiller cultivator uses small diesel or gasoline engine as its power, has the advantages of light weight,
small volume, simple structure etc. With the corresponding equipment it could not only pump, power generation
and spray operations, but also tow the trailer for short-distance transport.
Our Competitive Advantages
1) As a manufacturer, we can provide you good quality and low price products immediately instead of purchase
from distributors.
2) We are manufacturer and we have our own export right.
3) We have professional technical engineers, so we can solve all the problems you meet. We manufacture it,
we know it.
4)Most kinds of engine models, advanced technology, long performance life.
5) We have transportation for ourselves to the FOB port for saving delivery time and the safe of goods.
