Quick Details
-
Power (kW):
-
2.2
-
Weight (KG):
-
500 KG
-
Applicable Industries:
-
Nail making machine
-
Name:
-
screw nail making machine
-
color:
-
green, blue...
-
Length of nail max:
-
150MM
-
Length of nail min:
-
9MM
-
Keyword:
-
nail production line
-
Voltage:
-
380V 50Hz 3Phase/Customized
-
Application:
-
Nail Making
-
Raw material:
-
Low Carbon Steel Wire
-
Final product:
-
Stainless Nails
-
Advantage:
-
High Speed Low Noise
Quick Details
-
Production Capacity:
-
500pcs/minute
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HS
-
Power (kW):
-
2.2
-
Weight (KG):
-
500 KG
-
Applicable Industries:
-
Nail making machine
-
Name:
-
screw nail making machine
-
color:
-
green, blue...
-
Length of nail max:
-
150MM
-
Length of nail min:
-
9MM
-
Keyword:
-
nail production line
-
Voltage:
-
380V 50Hz 3Phase/Customized
-
Application:
-
Nail Making
-
Raw material:
-
Low Carbon Steel Wire
-
Final product:
-
Stainless Nails
-
Advantage:
-
High Speed Low Noise
Product Overview
Wire nail maker machine
1 .Both of the scrap iron wire and the new steel rod can be used to make nails by the machine to make steel nails .
2 .The machine to make steel nails can feed the materials automatically.
3 .The machine to make steel nails has the features of high speed, low noise, less impact and good continuity.
4. All the main components of the machine to make steel nails are made of quality steel, such as shaft, cams and gear.
5.The complete wire nail production line is included wire drawing machine,nail making machine,wire polishing machine.
6.We can customized the nail size according to the request.The nail diameter is adjusted by changing mould,the nail length is adjustable.
PRODUCT SPECIFICATIONS
|
Model
|
HS-ZD711
|
HS-ZD712
|
HS-ZD713
|
HS-ZD714
|
|
Power
|
1.5kw
|
2.2kw
|
3kw
|
4kw
|
|
Max nail dia
|
1.6mm
|
2.8mm
|
3.5mm
|
5mm
|
|
Max nail length
|
25mm
|
50mm
|
70mm
|
110mm
|
|
Min nail length
|
9mm
|
16mm
|
25mm
|
40mm
|
|
Capacity (pcs/min)
|
500
|
350
|
300
|
250
|
|
Weight (kg)
|
400
|
950
|
1100
|
1900
|
|
Dimension (mm)
|
1150*840*900
|
1500*1300*1200
|
1900*1200*1200
|
2300*1390*1345
|
Detailed pictures

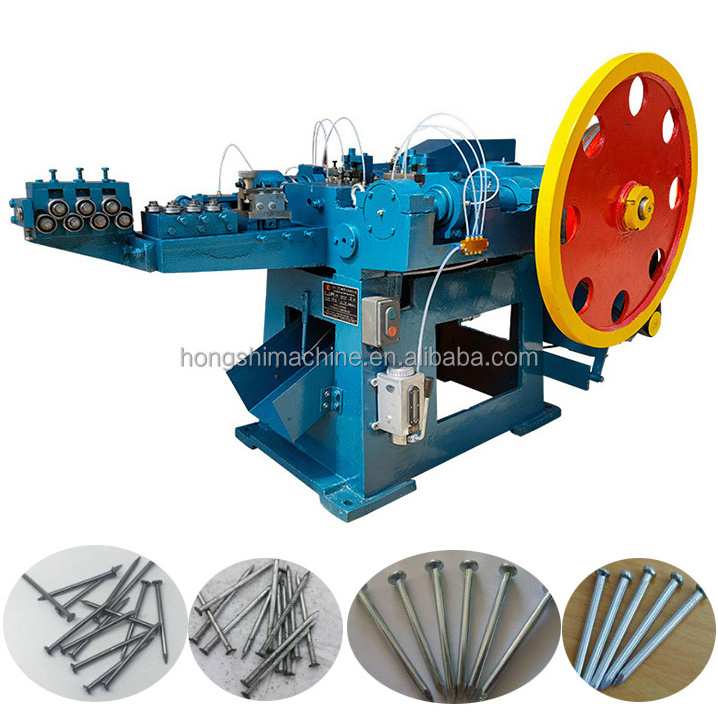

Screw nail making machine
Wire drawing machine
Nail polishing machine
Complete wire screw nail production line
Finished nails
