Quick Details
-
Brand Name:
-
REHE
-
Model Number:
-
RH-AV61
-
Operating Temperature:
-
-10℃~+55℃
-
Dimensions:
-
72*72mm
-
Color of Voltmeter:
-
white/black
-
Model number of Voltmeter:
-
RH-AV61
-
Accuracy of Voltmeter:
-
0.5 class
-
Display of Voltmeter:
-
Digital Only
-
Range:
-
AC10-500V
-
Warranty of Voltmeter:
-
Three years
-
Frame size of Voltmeter:
-
72*72 mm
-
Material of Voltmeter:
-
ABS
-
Item Name of Voltmeter:
-
empedans test millivoltmeter
-
Measurement Range of Voltmeter:
-
0-9999
Quick Details
-
Measuring Range:
-
0-9999
-
Accuracy Class:
-
0.5
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
REHE
-
Model Number:
-
RH-AV61
-
Operating Temperature:
-
-10℃~+55℃
-
Dimensions:
-
72*72mm
-
Color of Voltmeter:
-
white/black
-
Model number of Voltmeter:
-
RH-AV61
-
Accuracy of Voltmeter:
-
0.5 class
-
Display of Voltmeter:
-
Digital Only
-
Range:
-
AC10-500V
-
Warranty of Voltmeter:
-
Three years
-
Frame size of Voltmeter:
-
72*72 mm
-
Material of Voltmeter:
-
ABS
-
Item Name of Voltmeter:
-
empedans test millivoltmeter
-
Measurement Range of Voltmeter:
-
0-9999

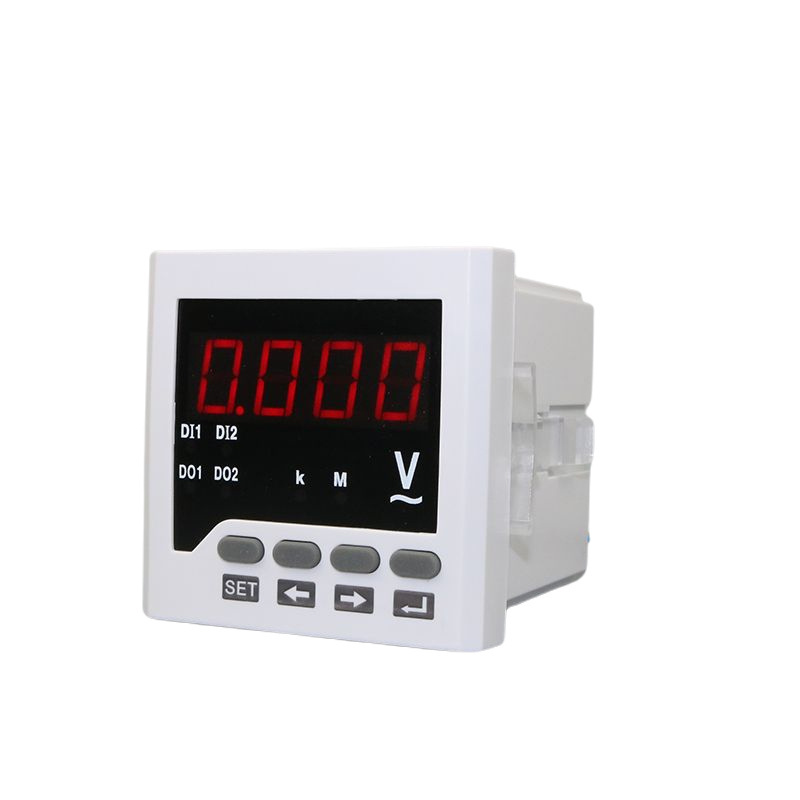

DIGITAL METER
DIGITAL METER
DETAILED INFORMATION OF PRODUCTS
Performance Characteristics
1.High precision measurement measurement of single phase AC voltage or DC voltage
1.High precision measurement measurement of single phase AC voltage or DC voltage
2.Provide the digital tube display, local data query
3.Programmable voltage ratio
4.Support for RS-485 communication, Modbus-RTU protocol
5.Auxiliary power supply:AC/DC 80V~270V, AC220V, AC380V, AC100V, DC48V, DC 24V
6.A variety of shapes, to meet the different requirements of the cabinet body electric circuit
Technical Index
Accuracy of measurement
♦voltage level 0.5
Signal input
♦Connection mode of single phase
♦Rated voltage of AC 57.7V, AC 100V, AC 220V, AC 380V, DC 2V, DC 20V, DC 200V, DC ♦600V,DC600V
♦Over load 1.2 times ( Continued ), 2 times / second ( instantaneous )
♦Power <1VA/ phase
♦Impedance >300KΩ
♦The frequency of 45~65Hz or DC
Auxiliary power supply
♦Working range of AC/DC 80V~270V, AC220V, AC380V, AC100V, DC48V, DC 24V
♦Power consumption <4VA
Function module
♦Communication interface 1 way RS-485 communication, Modbus-RTU protocol
♦Baud rate: 1200~9600bps, the default 2400bps
♦Switch input support 2 stem node input
♦The switch output support 2 relay output, capacity: AC 250V/5A, DC 30V/5A
♦Transmission output support 1 analog output: 0/4~20mA or 0~5/10V
Section of Specification
3.Programmable voltage ratio
4.Support for RS-485 communication, Modbus-RTU protocol
5.Auxiliary power supply:AC/DC 80V~270V, AC220V, AC380V, AC100V, DC48V, DC 24V
6.A variety of shapes, to meet the different requirements of the cabinet body electric circuit
Technical Index
Accuracy of measurement
♦voltage level 0.5
Signal input
♦Connection mode of single phase
♦Rated voltage of AC 57.7V, AC 100V, AC 220V, AC 380V, DC 2V, DC 20V, DC 200V, DC ♦600V,DC600V
♦Over load 1.2 times ( Continued ), 2 times / second ( instantaneous )
♦Power <1VA/ phase
♦Impedance >300KΩ
♦The frequency of 45~65Hz or DC
Auxiliary power supply
♦Working range of AC/DC 80V~270V, AC220V, AC380V, AC100V, DC48V, DC 24V
♦Power consumption <4VA
Function module
♦Communication interface 1 way RS-485 communication, Modbus-RTU protocol
♦Baud rate: 1200~9600bps, the default 2400bps
♦Switch input support 2 stem node input
♦The switch output support 2 relay output, capacity: AC 250V/5A, DC 30V/5A
♦Transmission output support 1 analog output: 0/4~20mA or 0~5/10V
Section of Specification
DIAGRAM OF DIGITAL METER
