Quick Details
-
Wattage:
-
12w 20w 24w 28w 30 w 40w 50w
-
Size:
-
2x2 / 2x4 foot
-
CCT:
-
customized 3000-6000k
-
Input Voltage:
-
100-277v
-
Light Source:
-
LED
-
Material:
-
steel
-
CRI:
-
80Ra
-
Warranty:
-
5 years
Quick Details
-
Type:
-
comercial light industry light
-
Product name:
-
ARK led troffer retrofit kit
-
Luminous Efficiency:
-
130lm/w
-
Wattage:
-
12w 20w 24w 28w 30 w 40w 50w
-
Size:
-
2x2 / 2x4 foot
-
CCT:
-
customized 3000-6000k
-
Input Voltage:
-
100-277v
-
Light Source:
-
LED
-
Material:
-
steel
-
CRI:
-
80Ra
-
Warranty:
-
5 years

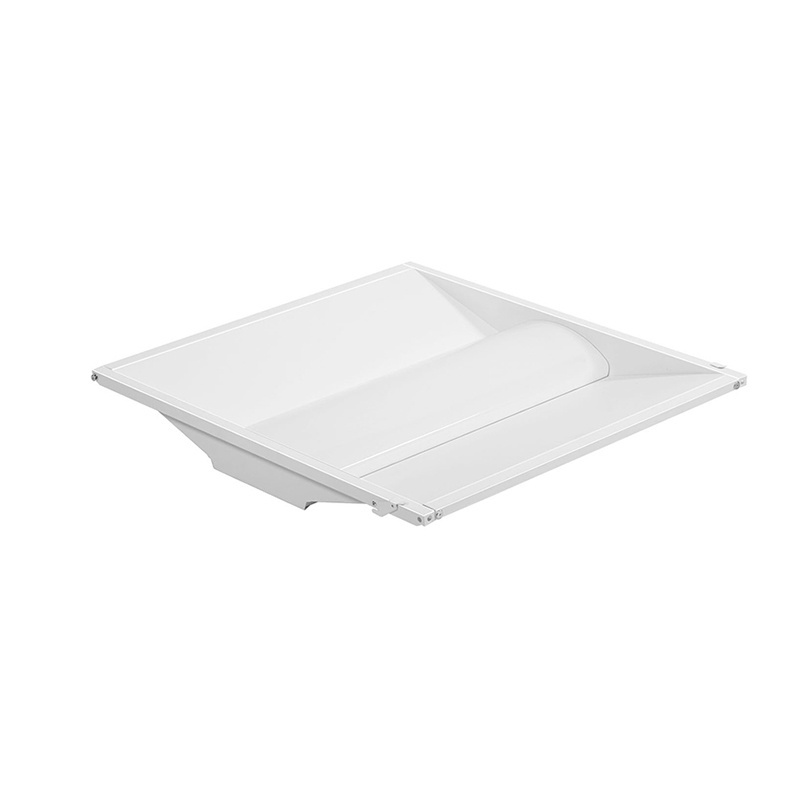

Recessed LED troffer retrofit light 2x2 / 2x4ft 0-10v dimming American led panel light 12w 20w 24w 28w 30 w 40w 50w
Specification of Recessed LED troffer retrofit light 2x2 / 2x4ft 0-10v dimming American led panel light 12w 20w 24w 28w 30 w 40w 50w
|
Tech Data |
|
|
|
Model |
ARK**R12DN130 |
|
|
LED Type |
Epistar SMD 2835 LEDS |
|
|
LED Power |
12w 20w 24w 28w 30 w 40w 50w | |
|
LED Color |
3000K-6500K |
|
|
Input Voltage |
AC 100-277V |
|
|
Frequency Range |
50Hz – 60Hz |
|
|
Power Factor |
>95% |
|
|
Luminous Efficiency |
130LM/W |
|
|
Color Temperature |
WW |
2700-3500K |
|
PW |
4000-5500K |
|
|
CW |
6000-7000K |
|
|
CRI |
WW |
Ra>80 |
|
PW / CW |
Ra>83 |
|
|
Lumens Output |
WW |
140-160lm/w |
|
PW |
140-160lm /w |
|
|
CW |
140-160lm/w |
|
|
Beam Angle |
>120° |
|
|
PC Housing |
Frosted/clear |
|
|
Working Temperature |
-20°C ~ +40°C |
|
|
Storage Temperature |
-25°C ~ +65°C(25°Cbest) |
|
|
Life span |
35000~50000hrs |
|
|
Certification |
UL DLC FCC |
|
|
Net Weight |
3.7KG/ |
|
|
Package |
156*21*21cm (25pcs/box) 17.0kgs |
|
Advantages of Recessed LED troffer retrofit light 2x2 / 2x4ft 0-10v dimming American led panel light 12w 20w 24w 28w 30 w 40w 50w :
1, 0-10V dimming
2, Easy to install
3, Wide rage of wattage availble
4,Highly energy efficiency, meet the requirement of ERP and DLC.
5,High-tech optical design.
7,UL DLC certification.
1.
By Express
: such as DHL, UPS, TNT, FEDEX etc. The dispatch time is about 3-5 days.
2.
Air Freight
: when your order more than 100kgs which will be more economical than express.
3.
Sea Freight
: we will update sea freight once we know your sea port where goods will be delivered.
4.
Agent designated by client
: please tell us the contact detail of your shipping agent and we will arrange
to deliver the items.
1. Provide solutions and high quality products with reasonable price
2. Streamline the buying and paying processes
3. Deliver the goods to our customers all over the world with speed and precision
4. Protection of your sale area, ideas of design and all your private information
5. Warranty: 5 years
