Quick Details
-
Brand Name:
-
CHICCA
-
Charging Capacity:
-
160L
-
Reclaiming capacity:
-
130L
-
Speed of Mixing Drum:
-
25RPM
-
Water Supply Mode:
-
manual operation
-
Working Cycle Period:
-
3 minute
-
Discharge Way:
-
manual operation
-
Outline Dimension:
-
2645x1090x1336mm
-
Weight (KG):
-
220 kg
-
Drum Mouth:
-
450mm
-
Drum Max Dia:
-
700mm
-
Drum Height:
-
687mm
-
Lower Drum Thickness:
-
4mm
-
Upper Drum Thickness:
-
3mm
-
Power type:
-
Diesel or Gasoline or Electric
-
Ring Gear:
-
Gast Iron
-
Certificate:
-
CE ISI9001
-
Color:
-
Yellow / Orange
Quick Details
-
Mixing Power:
-
1.5KW
-
Productivity:
-
1-2M³/H
-
Place of Origin:
-
China
-
Brand Name:
-
CHICCA
-
Charging Capacity:
-
160L
-
Reclaiming capacity:
-
130L
-
Speed of Mixing Drum:
-
25RPM
-
Water Supply Mode:
-
manual operation
-
Working Cycle Period:
-
3 minute
-
Discharge Way:
-
manual operation
-
Outline Dimension:
-
2645x1090x1336mm
-
Weight (KG):
-
220 kg
-
Drum Mouth:
-
450mm
-
Drum Max Dia:
-
700mm
-
Drum Height:
-
687mm
-
Lower Drum Thickness:
-
4mm
-
Upper Drum Thickness:
-
3mm
-
Power type:
-
Diesel or Gasoline or Electric
-
Ring Gear:
-
Gast Iron
-
Certificate:
-
CE ISI9001
-
Color:
-
Yellow / Orange

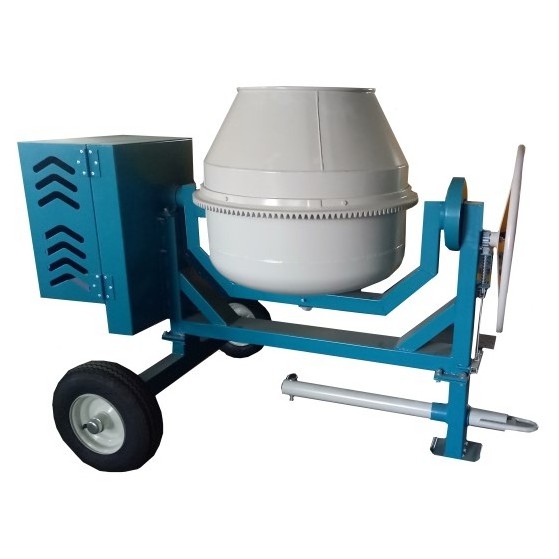

Portable mobile Concrete mortar mixer
Brief Introduce:
The small cement mixer mixer is used for mixing dry-hard ,semi-hard,plastic and various proportions of the concrete ,and can meet different requirements of the construction projects.
Concrete Mixer has three models differed by driven style:Gasoline/Diesel/Moter .It is suitable for mixing mortar,concert,with merits of small volume,easy for transport,high-eficiency and outstanding quality.
2.Large wheels, It's easy to move the Mini Concrete Mixer to anywhere.
3.Diesel/gasoline/electric motor,optional as customers' requirement. Mini Concrete Mixer is powerful.
4. Cast iron gear for Mini Concrete Mixer steady and silent working.
5.Spray painted surface,colour as your request. Mini Concrete Mixer is rust- proof.
6.EPA certificated wheels,wheels size:520mm.
7.Guarantee time:six months warranty
8.water supply mode:direct input
9.Discharging:semi-automatic
Specification
| Model | Capacity | NW | RPM of Drum | Productivity | Engine | QTY(set) | |||||
| L | KG | m³/H | RPM | Diesel | Gasoline | Electric Motor | 40"HP | 20"GP | Dimension(electric)(others length+60mm) | ||
| FC260 | 260 | 250 | 18 | 6-10 | 1800 | 4HP | 4.5HP | 1.5KW | 52 | 24 | 2465*1090*1335 |
| FC300 | 300 | 270 | 20 | 8-12 | 1800 | 4HP | 4.5HP | 1.5KW | 52 | 24 | 2465*1090*1425 |
| FC350 | 350 | 290 | 20 | 10-14 | 1800 | 6HP | 6.5HP | 2.2KW | 52 | 22 | 2600*1090*1442 |
| FC400 | 400 | 330 | 20 | 12-16 | 1800 | 6HP | 6.5HP | 2.2KW | 44/50 | 22 | 2600*1090*1527 |
| FC450 | 450 | 340 | 20 | 14-18 | 1800 | 6HP | 6.5HP | 2.2KW | 44/50 | 12 | 2600*1090*1622 |
| FC500 | 500 | 350 | 17 | 16-20 | 1800 | 9HP | 9HP | 3KW | 36 | 10 | 2700*1090*1635 |
| FC600 | 600 | 370 | 17 | 20-24 | 1800 | 9HP | 9HP | 3KW | 20 | 10 | 2700*1090*1750 |
| FC700 | 700 | 460 | 17 | 24-28 | 1800 | 9HP | 9HP | 3KW | 12 | 6 | 2800-1260*1783 |
| FC800 | 800 | 480 | 17 | 28-32 | 1800 | 9HP | 9HP | 3KW | 12 | 6 | 2800*1260*1925 |
Products Photos
Engine Details
| Engine type | Brand we use | Power | RPM of engine | Capacity used to | ||||||
| Electric engine | 1.5kw-5kw | 1800 | 260L-600L | |||||||
| Gasoline engine | Lifan,Loncin | 3HP-9HP | 1800 | 260L-600L | ||||||
| air-cooled diesel engine | lifan,Kipor | 3.5HP-9HP | 1800 | 260L-600L | ||||||
| Water -cooled diesel engine | Jiangdong etc. | 8HP | 1800 | 260L-600L | ||||||
Engine Photos
Packaging Detail:
1.Standard expot packing or according to customer`s requirements
2.use crane/forklist to load the machines into the container
3.use the wire to fasten the machines in order to keep them stable
4.use the cork wood forbid collision
5.Steel frame package
Delivery Detail:
Delivery Detail:Swift delivery,within 15-30 days after receiving the deposit
1.Guarantee time:6 months warranty
2.Provide OEM and ODM services.
3.Afer sale sevice:
