Quick Details
-
Certificate:
-
ROHS
-
Metal Material:
-
PC+Copper
-
Warranty:
-
1 Year
-
Use:
-
Eletrical Products
-
Operating Temperature:
-
-25℃~+85℃
-
Insulation Resistance:
-
Over 1000mΩ/min
-
Dielectric Intensity:
-
Over 1500V AV/Min
-
Insert and Extract Force:
-
5-30N
-
Style:
-
Double Row 2P2T Slide Switch
Quick Details
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Guangdong, China
-
Color:
-
Silver
-
Certificate:
-
ROHS
-
Metal Material:
-
PC+Copper
-
Warranty:
-
1 Year
-
Use:
-
Eletrical Products
-
Operating Temperature:
-
-25℃~+85℃
-
Insulation Resistance:
-
Over 1000mΩ/min
-
Dielectric Intensity:
-
Over 1500V AV/Min
-
Insert and Extract Force:
-
5-30N
-
Style:
-
Double Row 2P2T Slide Switch

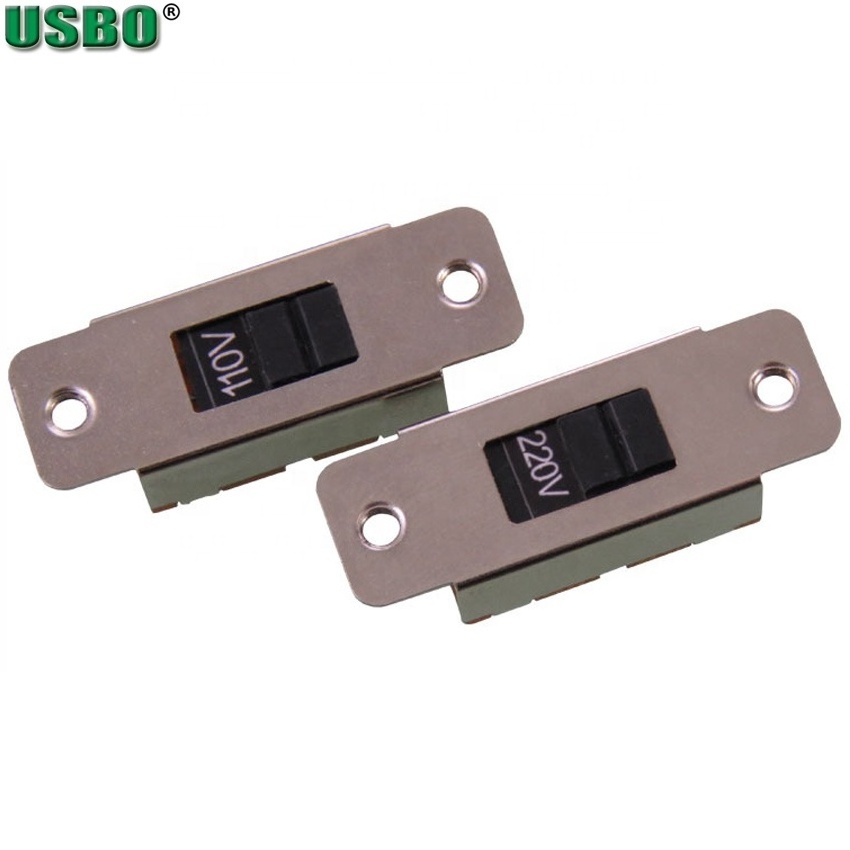

Wholesale 110V To 220V Voltage Selector 2 Way 6Pins Double Row 2P2T Slide Switch
Product Description
| Rating | 3A 250V |
| Mechanical Life | Over 1000000 times |
| Electrical Life | Over 800000 times |
| Contact Resistance | Less 50M ohm |
| Insulation Resistance | Over 100M ohm |
| Withstand Voltage | 1000V 50/60hz last for 1min |
| Base Material | PC+Copper |
| Ambient Temperature | -25 -+80 Celsius |
| Vibration | 10-55hz 1.5mm Double amplitude |
| Operating Force | Less 6N |
| Wiring | Soldering and wire |
| Installation Way | Bushing mount |
| Diamension | see picture |
| Waterproof grade | NO |
| Application | Household appliances,Beauty equipment, small boats, lighting, medical equipment, communications and networking equipment, instrumentation,TV camera vedio speaker computer or mobile phone charger |
| Certification | CE Rohs |
100pcs one plastics bag
5000pcs one carton
