Quick Details
-
Power:
-
0.75kw-3kw
-
Min. Lifting Height:
-
320mm
-
Table Size:
-
CUSTOMIZED SIZE
-
Overall Dimensions:
-
CUSTOMIZED SIZE
-
Weight:
-
1000 kg
-
Product name:
-
Hydraulic Scissor Lifting Stage Revolving Stage
-
After-sales Service Provided:
-
Online support
-
Keywords:
-
Rotating Lifting Stage
-
Usage:
-
Container Loading/Lift Workers
-
Color:
-
Customers' Requirements
-
Feature:
-
Low Noise,Easy Operation Safety Convenience
-
Type:
-
Scissor Hydraulic Lift
-
Name:
-
Lifting Equipment Electric Scissor Lift
-
Warranty period:
-
1 year
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZHONGXIANG
-
Power:
-
0.75kw-3kw
-
Min. Lifting Height:
-
320mm
-
Table Size:
-
CUSTOMIZED SIZE
-
Overall Dimensions:
-
CUSTOMIZED SIZE
-
Weight:
-
1000 kg
-
Product name:
-
Hydraulic Scissor Lifting Stage Revolving Stage
-
After-sales Service Provided:
-
Online support
-
Keywords:
-
Rotating Lifting Stage
-
Usage:
-
Container Loading/Lift Workers
-
Color:
-
Customers' Requirements
-
Feature:
-
Low Noise,Easy Operation Safety Convenience
-
Type:
-
Scissor Hydraulic Lift
-
Name:
-
Lifting Equipment Electric Scissor Lift
-
Warranty period:
-
1 year

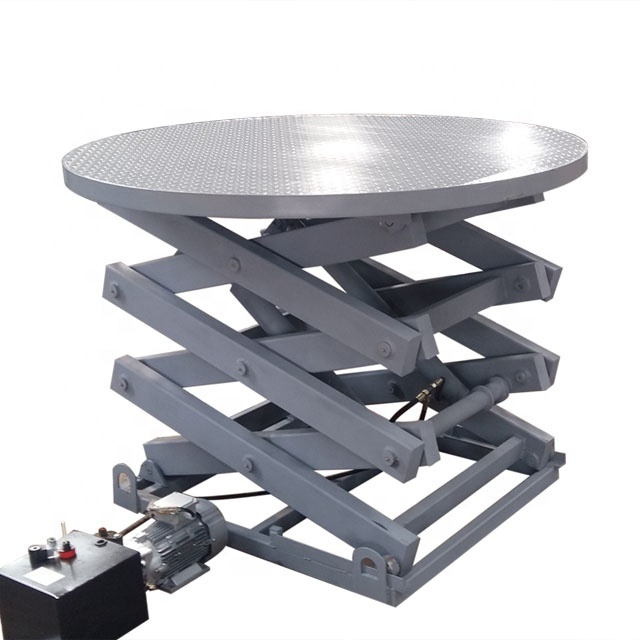

Hydraulic Scissor Lifting Stage Revolving Stage
The scissor lifting stage is the most commonly used product. It’s mainly function is used for scenery and actors moved up and down when the scene transitions. In addition, in order to highlight the main actors, stage will rise slowly; dancers can produce the ups and downs on the stage. At the same time, the process of lifting stage movement also can increase the performance effect.
Hydraulic Scissor Lifting Stage Revolving StageHydraulic Scissor Lifting Stage Revolving Stage Hydraulic Scissor Lifting Stage Revolving StageHydraulic Scissor Lifting Stage Revolving StageHydraulic Scissor Lifting Stage Revolving Stage
1.Technical Parameters:
| model |
rated loading (kg) |
min height H1 (mm) |
max height H2 (mm) |
diameter L*W (mm) |
lifting time (s) |
votage (V) |
power (Kw) |
| double shear lift platform | |||||||
| SJG1-0.5 | 500 | 350 | 1550 | 1000 | 16 | optional | 1.1 |
| SJG1.7-1 | 1000 | 400 | 2100 | 1500 | 28 | optional | 1.5 |
| SJG1.6-2 | 2000 | 600 | 2200 | 1800 | 41 | optional | 2.2 |
| SJG1.5-5 | 5000 | 650 | 2150 | 1800 | 40 | optional | 4 |
| duplex lift platform | |||||||
| SJG1-0.8 | 500 | 250 | 1050 | 1000 | 8 | optional | 1.1 |
| SJG1-1 | 1000 | 300 | 900 | 1500 | 15 | optional | 1.5 |
| SJG0.7-3 | 3000 | 400 | 1100 | 2000 | 25 | optional | 3 |
| SJG1.7-5 | 5000 | 800 | 2200 | 2000 | 60 | optional | 4 |
| customization | optional | ||||||
Package & shipping-- standard export packing
Production cycle: about 15~25 working days.
