Quick Details
-
Voltage:
-
380V / As client's demand
-
Dimension(L*W*H):
-
1000*3000mm
-
Weight:
-
50 KG
-
Product name:
-
Small sand drum sieve screen / gold trommel sieve
-
Keyword:
-
trommel sieve
-
Function:
-
Screening\separation\sorting\sieving
-
Material:
-
Carbon Steel / Stainless Steel
-
Layer(s):
-
Customized as mesh size
-
Cleaning system:
-
Brush Etc
-
Customized:
-
Acceptable
-
Color:
-
Customers' Request
-
Surface treatment:
-
Painting / Mirror polishing
-
Installation:
-
Engineer Guide
Quick Details
-
Type:
-
Circular
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
CY-MACH
-
Voltage:
-
380V / As client's demand
-
Dimension(L*W*H):
-
1000*3000mm
-
Weight:
-
50 KG
-
Product name:
-
Small sand drum sieve screen / gold trommel sieve
-
Keyword:
-
trommel sieve
-
Function:
-
Screening\separation\sorting\sieving
-
Material:
-
Carbon Steel / Stainless Steel
-
Layer(s):
-
Customized as mesh size
-
Cleaning system:
-
Brush Etc
-
Customized:
-
Acceptable
-
Color:
-
Customers' Request
-
Surface treatment:
-
Painting / Mirror polishing
-
Installation:
-
Engineer Guide

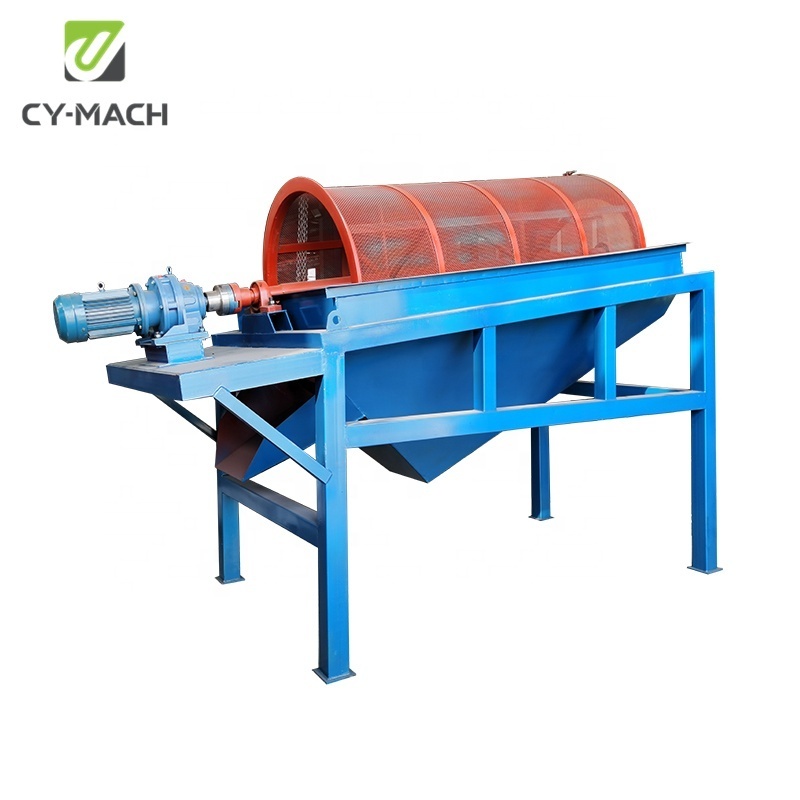

Small sand drum sieve screen / gold trommel sieve with ordinary motor
Mining gold trommel screen is mainly composed of motor, reducer, roller device, frame, sealing cover, inlet and outlet.
The roller device is installed on the machine frame.
The motor is connected with the roller device through a coupling through a speed reducer, and the driving roller device rotates around the axis.
When the material enters the cylinder device, due to tilting and rotating drum device, so that the screen material turn over and rolling, the qualified materials (sieve products) by a cylindrical screen discharge, the unqualified materials (sieve products) by the end of the discharge.
Because the material inside the drum turning, rolling, so that the material stuck in the sieve can be ejected, prevent clogging.
|
Model |
Diameter(mm) |
Length of Screen (mm) |
Discharge Size (mm) |
Capacity(m³/h) |
Power(kw) |
|
CYT-620 |
600 |
2000 |
0~100 |
1-5 |
0.75 |
|
CYT-825 |
800 |
2500 |
2-10 |
1.1 |
|
|
CYT-1030 |
1000 |
3000 |
10-30 |
2.2 |
|
|
CYT-1235 |
1200 |
3500 |
20-50 |
4 |
|
|
CYT-1540 |
1500 |
4000 |
40-80 |
5.5 |
|
|
CYT-1850 |
1800 |
5000 |
80-150 |
7.5 |
|
|
CYT18100 |
1800 |
10000 |
200-250 |
15 |
|
|
CYT-2280 |
2000 |
8000 |
250-300 |
22 |
2. Coal Industry: suitable for screening and classifying lump coal, coal dust, coal washing, etc.
3. Chemical,: fertilizer industry etc.
4. Mineral-selecting Industry: suitable for grading and classifying lump, powder substance, etc.
5. Metallurgy, construction, building materials, abrasives, and other industries.
