MSD300 original Novastar led sending card for outdoor led video wall panels

MSD300 original Novastar led sending card for outdoor led video wall panels

FOB Reference Price: Get Latest Price

≥1 Sets

US $119

≥10 Sets

US $113

≥20 Sets

US $110

≥50 Sets

US $107

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: MSD300

Pixel Pitch:: any

Specification:: led sending card

Display Function:: Video

Input Resolution:: 1280*1024@60Hz

Life span:: 100000 Hours

Supply Voltage:: 5-12V

Video Interface:: DVI

Output Interface:: 2 Ethernet ports

Audio Interface:: 3.5mm

Warranty:: 1 Years

Product Type:: Sending card

Name:: Novastar MSD300 LED display decoder

Quick Details

Application:: Indoor, Outdoor

Brand Name:: Nova

Place of Origin:: Guangdong, China

Model Number:: MSD300

Pixel Pitch:: any

Specification:: led sending card

Display Function:: Video

Input Resolution:: 1280*1024@60Hz

Life span:: 100000 Hours

Supply Voltage:: 5-12V

Video Interface:: DVI

Output Interface:: 2 Ethernet ports

Audio Interface:: 3.5mm

Warranty:: 1 Years

Product Type:: Sending card

Name:: Novastar MSD300 LED display decoder

Product Description

MSD300 Nova novastar sending card For LED Display Screen

Specification

Full Color Synchronous Novastar MSD300 Sending Card For LED Display Screen

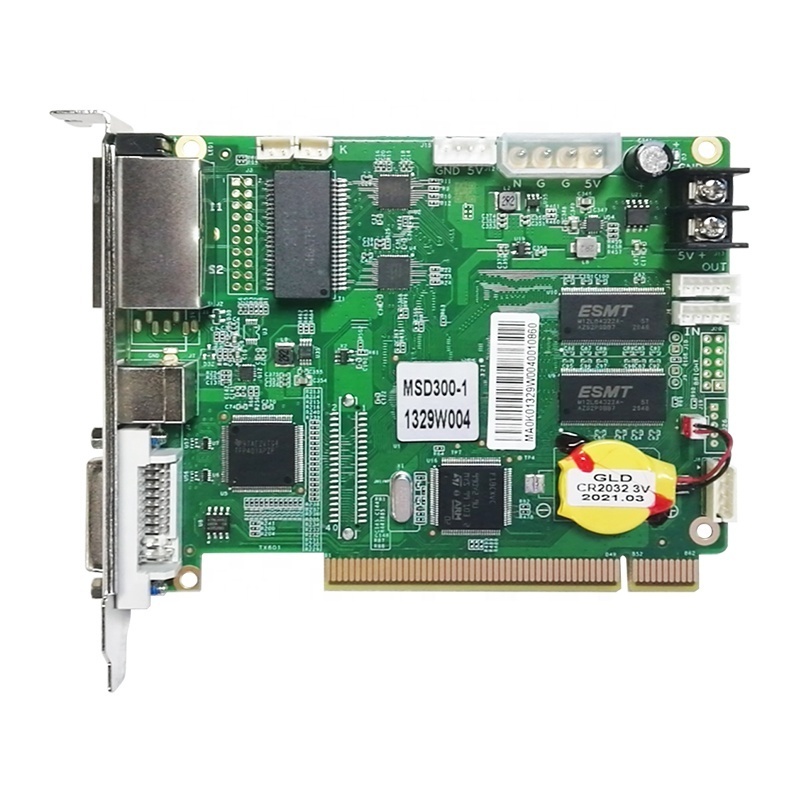

The MSD300 is an M3 series sending card from NovaStar. This sending card supports video

and audio inputs, and can decode and process them before sending them to the LED screen

via Ethernet port. A single MSD300 supports resolutions up to 1920×1200@60Hz.

It communicates with the computer via USB port and is very convenient to use. The MSD300

can be used for rental and fixed applications, such as live events, monitoring centers and

various sports centers. XI'AN NOVASTAR TEC

1 × DVI video input and 1 × audio input

2 × Gigabit Ethernet output 1 × light sensor connector Supports the new generation of pixel

level calibration technology from

NovaStar to provide a fast and efficient calibration process

Connector	Connector Name	Description
input	DVI x1	Single-link DVI input connector
	Input		Supported maximum resolution: 1920×1200@60Hz, downward
			Resolution customizable Maximum width: 3840 pixels Maximum height: 1920 pixels
		AUDIO	Audio input connector
Output	RJ45 ×2	2 Gigabit Ethernet ports
				Maximum loading capacity of a single port: 650,000 pixels
				Supports redundancy between Ethernet ports.
Function	LIGHT SENSOR	Connect to light sensor to monitor ambient brightness to realize automatic screen brightness adjustment.
Control	USB	USB control port for connecting to PC
		UART IN	Input / Outdoor Connector for cascading devices
		UART OUT	Output port for cascading devices.
Power	DC3.3-5.5V

Packing Information	Each controller is provided with a carrying case, accessory box and packing box. The controller and accessory box (containing controller related wires and accessories) is packed in the carrying case and the carrying case is packed in the packing box.
	Packing Information	Carrying case	335 mm × 190 mm × 62 mm, craft paper box printed with NOVASTAR
		Accessory box	402 mm× 347 mm × 65 mm, craft paper box 1 × power cord1 × USB cable 1 × DVI cable
		Packing box	400 mm × 365 mm × 355 mm, craft paper box printed with NOVASTAR
