Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MILIMIKE
-
Model Number:
-
MK-CX09A-8-20SK85
-
Application:
-
Indoor & Outdoor, Install on the fluted shaft
-
Product Name:
-

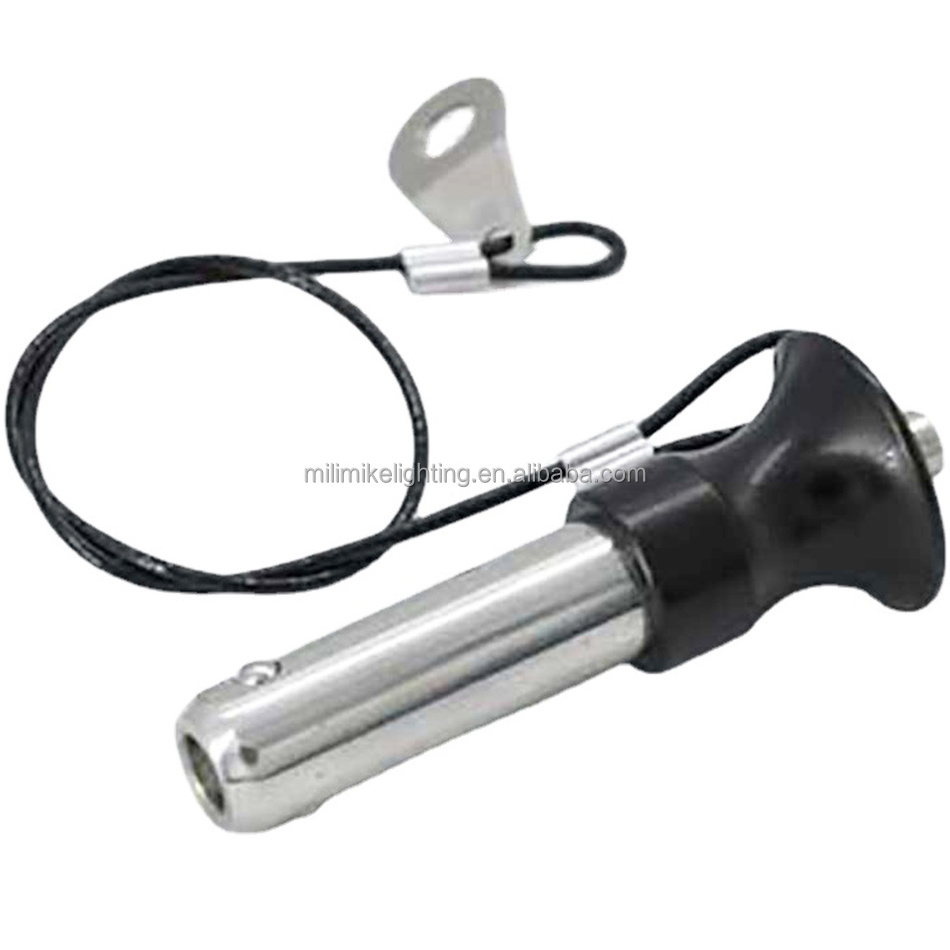

Handle Quick Release Ball Lock Pin with a tether
-
Size:
-
Dia:8mm x Dia.19.7mm x H49mm
-
Single gross weight:
-
28 grams
-
Surface Treatment:
-
polish/anodizing/plated/natural
-
Effect:
-
fasten, locate, and align, adjust or remove
-
Feature:
-
high precision,antiwear
-
Handle Type:
-
B type, T type, Cup type, L type
Quick Details
-
Material:
-
Stainless steel
-
Finish:
-
polishing+plating
-
Type:
-
Push Button Ball Lock Pin, Safety Pins, Snap Button Pins, Quick-Release Pins
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MILIMIKE
-
Model Number:
-
MK-CX09A-8-20SK85
-
Application:
-
Indoor & Outdoor, Install on the fluted shaft
-
Product Name:
-
Handle Quick Release Ball Lock Pin with a tether
-
Size:
-
Dia:8mm x Dia.19.7mm x H49mm
-
Single gross weight:
-
28 grams
-
Surface Treatment:
-
polish/anodizing/plated/natural
-
Effect:
-
fasten, locate, and align, adjust or remove
-
Feature:
-
high precision,antiwear
-
Handle Type:
-
B type, T type, Cup type, L type
20mm grip length detent safe locking spring loaded ball Quick Release Detent Pin With Ball End Push Pull Pins Detent Pin
Specification
|
Model Number
|
MK-CX09A-8-20SK85
|
|
Product Name
|
Flat Head Quick Release Detent Clevis Pin with a Lanyard
|
|
Size
|
Ø8*Ø19.7*H78mm(0.31" x 0.78"*3.07")or Customized, grip length:31mm
|
|
Material
|
Stainless steel(304,316,410),carbon steel(4,8,10,12), aluminum, brass
|
|
Surface Treatment
|
polishing+plating
|
|
Used
|
line array speaker system, Install on the fluted shaft etc.
|
|
|
1.A wide range of uses in fastening, locating, and alignment application
|
|
|
2.The pins will not release until the button on the handle is depressed;
|
|
|
3.It can be Auto-defense,once the button is depressed, the balls retract into the shank
allowing the pin to be inserted or removed into or out of a hole; When you release the
button, the ball will pop-up , quick release pin will can't be pull-out. four ball options is
available
|
|
|
4.The shanks are made from 304 or 17-4PH stainless steel;
|
|
|
5.High precision, The tolerance of diameter and grip length are very strict;
|
|
|
6.The handles for the pins are made from aluminum alloy and anodized black;
|
|
|
7.The pins are supplied with stainless steel split ring for attaching a cable assembly
|
|
Application
|
Home theater speaker system, electrical and electronics industry, power devices system, electrical instruments, table & chairs furniture, machinery and equipment
|
