Quick Details
-
Brand Name:
-
Melinsunergy
-
Model Number:
-
MT515-10A
-
Work Time (h):
-
24 Hours
-
Max PV Power:
-
360W
-
Max PV Voltage:
-
50V
-
Certificate:
-
EMC LVD
-
Warranty:
-
2 Years
-
Product name:
-
10A Solar Charge Controller
-
SIZE:
-
130x102x27mm
-
Max. Solar input Voltage:
-
50V
-
Battery type:
-
6Type of battery
-
Charge mode:
-
5 Stage Charging
-
Display:
-

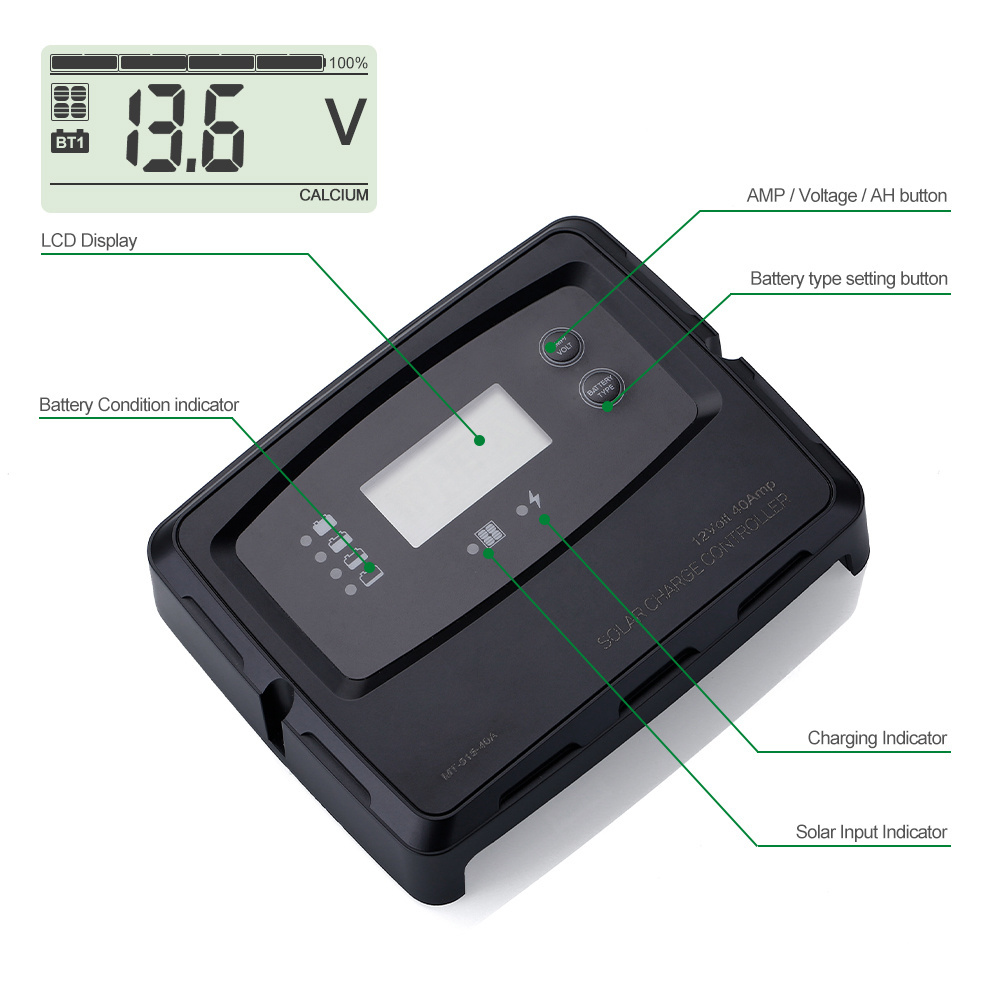

Large LCD + LED
-
System voltage:
-
12/24VDC Auto
-
Warranty::
-
2 Years
Quick Details
-
Type:
-
PWM
-
Application:
-
Charger Controller, Solar Working Station, Voltage Controller, Solar System Controller
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Melinsunergy
-
Model Number:
-
MT515-10A
-
Work Time (h):
-
24 Hours
-
Max PV Power:
-
360W
-
Max PV Voltage:
-
50V
-
Certificate:
-
EMC LVD
-
Warranty:
-
2 Years
-
Product name:
-
10A Solar Charge Controller
-
SIZE:
-
130x102x27mm
-
Max. Solar input Voltage:
-
50V
-
Battery type:
-
6Type of battery
-
Charge mode:
-
5 Stage Charging
-
Display:
-
Large LCD + LED
-
System voltage:
-
12/24VDC Auto
-
Warranty::
-
2 Years
|
Item No.
|
MT515-10A
|
MT515-15A
|
MT515-20A
|
MT515-30A
|
MT515-40A
|
||||
|
Rated Amps
|
10A
|
15A
|
20A
|
30A
|
40A
|
||||
|
Nominal Solar input
|
15--22V DC
|
|
|
|
|
||||
|
Max. Solar Input Voc
|
25V DC
|
|
|
|
|
||||
|
Lowest operating voltage
|
8V DC
|
|
|
|
|
||||
|
Battery types
|
AGM , GEL ,WET , CAICLIUM , LiFePO4 , LTO
|
|
|
|
|
||||
|
Charging Stages
|
5 stages charging ( Soft Start , Bulk , Absorption , Equalization ,Float )
|
|
|
|
|
||||
|
Temperature Compensation coefficient
|
-24 mV/°C
|
|
|
|
|
||||
|
Temperature Compensation Range
|
-20 ~ +50 °C
|
|
|
|
|
||||
|
Size
|
130X102.6X35mm
|
|
|
156X122X38mm
|
|
||||
|
Weight
|
0.2Kg
|
|
|
0.25Kg
|
|
||||
|
Operating temperature
|
-25 ~ 50℃
|
|
|
|
|
||||
|
Storage temperature
|
-40 ~ 85℃
|
|
|
|
|
||||
|
Operating Humidity range
|
100% no condensation
|
|
|
|
|
||||
|
Protection
|
Input / Output Reverse polarity , input over voltage , output short circuit ,Battery over voltage , over temperature
|
|
|
|
|
||||
