Quick Details
-
Surface Roughness(μm):
-
0.32 μm
-
Table Size(mm):
-
200*508
-
Place of Origin:
-
Jiangsu, China
-
Voltage:
-
220V/380V 50Hz
-
Dimension(L*W*H):
-
2200*2000*2150mm
-
Weight (KG):
-
1900
-
Power (kW):
-
2.2
-
T slot(W*Q):
-
14*3mm
-
Max.loading capacity(include chuck):
-
200kg
-
X axis Feed speed:
-
0.02-18/CNC-3(5-25/CNC-2)mm/min
-
X axis Micro feed rate:
-
0.005/CNC-3(---/CNC-2)mm
-
Grinding Wheel Size:
-
200*20*31.75mm
-
Spindle rotating speed:
-
2850 (50HZ) 3450 (60HZ)r/min
-
Oil pump Motor:
-
0.75kw
-
Coolant pump Motor:
-
0.04kw
-
Function:
-
Grinding Material
-
Application:
-
Stainless Steel
Quick Details
-
Grinding Length(mm):
-
700
-
Table Travel (X) (mm):
-
200
-
Table Travel (Y) (mm):
-
508
-
Surface Roughness(μm):
-
0.32 μm
-
Table Size(mm):
-
200*508
-
Place of Origin:
-
Jiangsu, China
-
Voltage:
-
220V/380V 50Hz
-
Dimension(L*W*H):
-
2200*2000*2150mm
-
Weight (KG):
-
1900
-
Power (kW):
-
2.2
-
T slot(W*Q):
-
14*3mm
-
Max.loading capacity(include chuck):
-
200kg
-
X axis Feed speed:
-
0.02-18/CNC-3(5-25/CNC-2)mm/min
-
X axis Micro feed rate:
-
0.005/CNC-3(---/CNC-2)mm
-
Grinding Wheel Size:
-
200*20*31.75mm
-
Spindle rotating speed:
-
2850 (50HZ) 3450 (60HZ)r/min
-
Oil pump Motor:
-
0.75kw
-
Coolant pump Motor:
-
0.04kw
-
Function:
-
Grinding Material
-
Application:
-
Stainless Steel
Product Description
|
Operating manual
|
Wheel extractor
|
|
Working lamp
|
Coolant tank
|
|
Tools and tool box
|
Magnetic chuck
|
|
Table closed guard
|
wheel flange
|
|
standard grind wheel
|
wheel dresser（not include diamond pen）
|
|
Leveling wedge
MPG |
Balancing arbor
Balancing stand |
|
Item
|
|
Unit
|

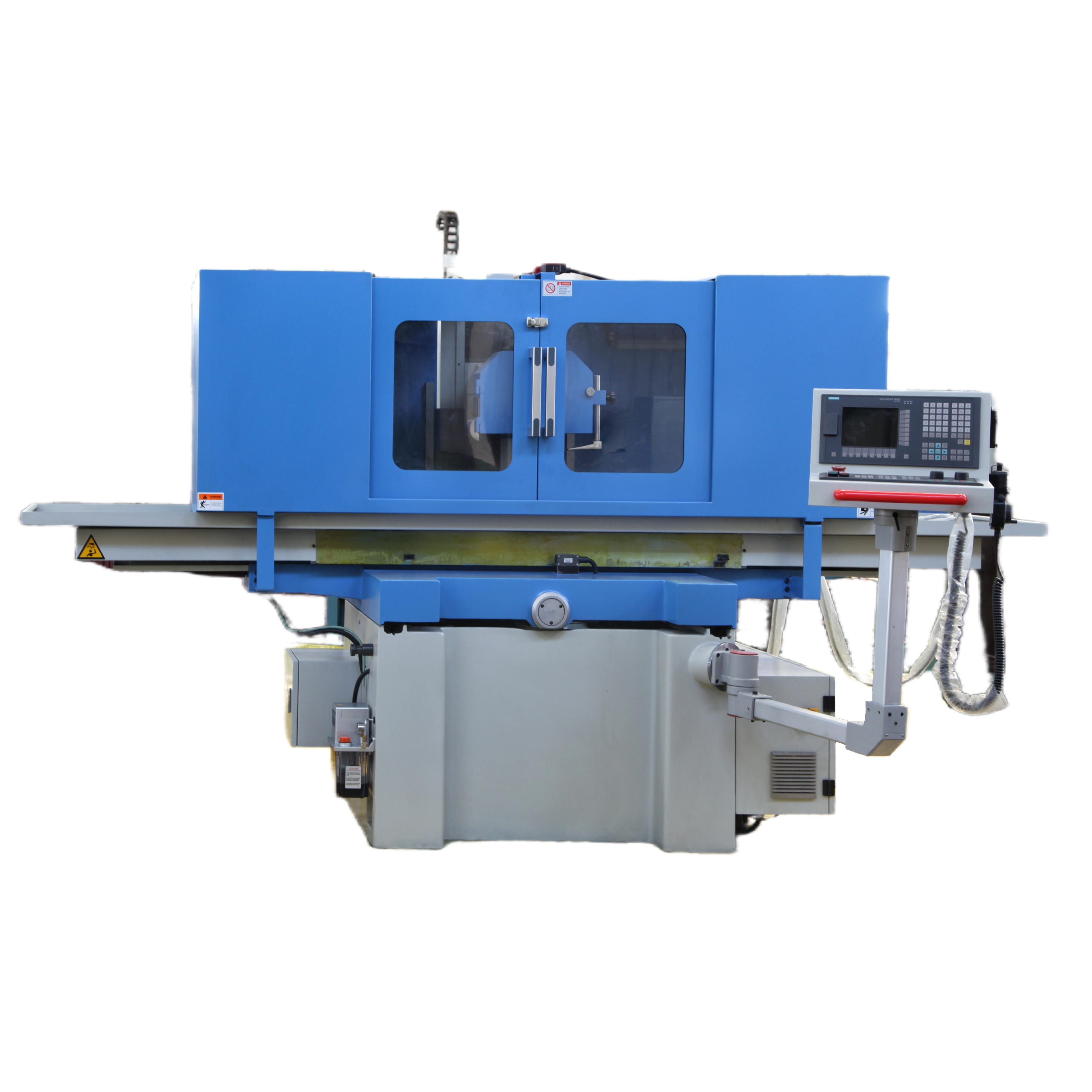

FSG2050CNC
|
|
|
Table size (W×L)
|
|
mm
|
200×508
|
|
|
T slot（W×Q）
|
|
mm
|
14×3
|
|
|
Max.distance from spindle center to table
|
|
mm
|
450
|
|
|
Max.loading capacity（include chuck）
|
|
kg
|
200
|
|
|
X axis feed
|
Feed speed
|
mm/min
|
0.02-18/CNC-3(5-25/CNC-2)
|
|
|
|
Micro feed rate
|
mm
|
0.005/CNC-3(---/CNC-2)
|
|
|
Table cross moving(Y axis feed)
|
Feed speed
|
mm/min
|
0.1-1000/CNC-3
|
|
|
|
Micro feed rate
|
mm
|
0.005/CNC-3
|
|
|
Z axis feed
|
Feed speed
|
mm/min
|
0.1-1000
|
|
|
|
Micro feed rate
|
mm
|
0.005
|
|
|
Grinding wheel
|
size (OD×TH×ID)
|
mm
|
200×20×31.75
|
|
|
|
Spindle rotating speed
|
r/min
|
2850 (50HZ) 3450 (60HZ)
|
|
|
Motor
|
Spindle motor power
|
kw
|
2.2
|
|
|
|
Oil pump
|
kw
|
0.75
|
|
|
|
Coolant pump
|
kw
|
0.04
|
|
|
|
Elevating servo motor
|
kw
|
0.5
|
|
|
|
Cross servo motor
|
kw
|
0.5
|
|
|
Gross weight
|
|
kg
|
1900
|
|
|
Floor space (L×W×H)
|
|
mm
|
2200×2000×2150
|
|
