Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Aochi Paper die cutting machine
-
Voltage:
-
380V/50hz,3phase
-
Dimension(L*W*H):
-
1260*1400*1280mm
-
Weight:
-
1900kgs
-
Warranty:
-
one Year
-
Marketing Type:
-
Hot Product 2020
-
PLC Brand:
-
None
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Die Cutting Machine:
-
Paper die cutting machine
-
Color:
-
Gray
-
package:
-
wooden case
-
shipping:
-
by sea
-
OEM:
-
accept
-
Paper die cutting machine:
-
semi-automatic
-
Certification:
-
CE
Quick Details
-
Type:
-
Die-cutting Machine
-
Production Capacity:
-
100 m/min
-
Max. workable width:
-
1100mm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Aochi Paper die cutting machine
-
Voltage:
-
380V/50hz,3phase
-
Dimension(L*W*H):
-
1260*1400*1280mm
-
Weight:
-
1900kgs
-
Warranty:
-
one Year
-
Marketing Type:
-
Hot Product 2020
-
PLC Brand:
-
None
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Die Cutting Machine:
-
Paper die cutting machine
-
Color:
-
Gray
-
package:
-
wooden case
-
shipping:
-
by sea
-
OEM:
-
accept
-
Paper die cutting machine:
-
semi-automatic
-
Certification:
-
CE
Application

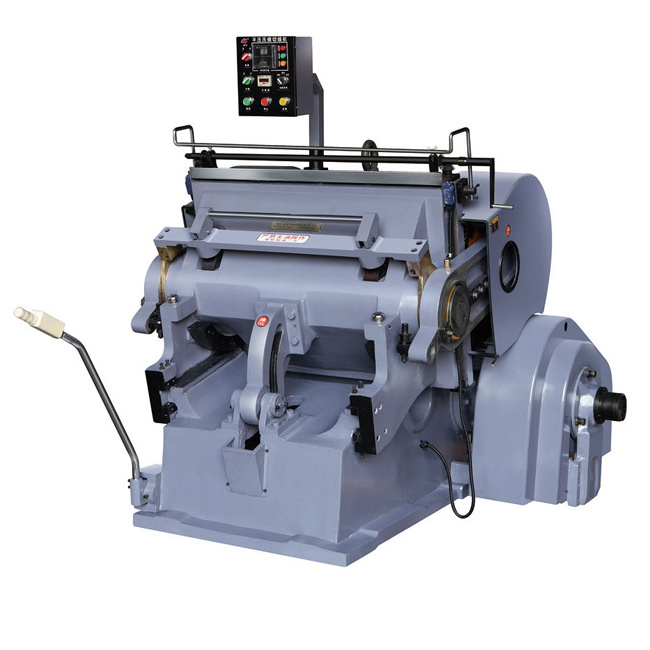

The die cutting machines special equipments of diecutting and creasing a wide range of materials,such as cardboard,corrugated board,plastic and leather.They are applicable to the fields of printing,packaging,decoration and plastic industries.The machines have been acceptable for the customers from home and abroad,due to their outstanding features,high quality and good service.
| * Sliding bearings are made of high quality alloy cooper,thus to get effect of anti-frietion and shake reducing. |
| * Flywheel is with big moment of force and large pressure. |
| * High strength due to one piece casting by using top-ranking material for machine body. |
| * Single plate electromagnetic clutch is sensitive and reliable. |
| * With functions of single,continuous and opening dweel operation,dwell range is adjustable. |
| * Operating position is reasonably arranged,moving-bed can be opened to its optimum. |
| * Central lubrication system guarantees fine lubrication and reduce friction. * Safety system is reliable. |
Technical Parameters:
|
Model |
Max.Rule Area |
Working speed |
Max Rule Length |
Motor power |
Weight |
Overall Dimension |
|
ML-930 |
930*670MM |
20±2 (strokes/min) |
<25m |
4kw |
3000kg |
1680*1680*1640mm |
|
ML750 |
750*520MM |
25±2 (strokes/min) |
<15m |
5.5kw |
1900kg |
1260*1400*1280mm |
|
ML1040 |
1040*720mm |
23±2 (strokes/min) |
< 30 m |
4Kw |
3500kg |
1760×2000×1750mm |
|
ML1100 |
1100*800MM |
20±2 (strokes/min) |
<3 5 m |
5.5 kw |
4500kg |
202 0*2 01 0*1 90 0mm |
|
ML1200 |
1200*800MM |
18±2 (strokes/min) |
<3 5 m |
4 kw |
50 00kg |
205 0* 21 50*19 0 0mm |
|
ML1300 |
1300*920 mm |
15±2 (strokes/min) |
<40m |
7.5 |
6200kg |
2 600*21 00*1950mm |
|
ML1 40 0 |
1 40 0* 100 0MM |
15 ±2 (strokes/min) |
< 45 m |
7.5 kw |
6 500kg |
260 0*2 1 00*1 9 50mm |
|
ML1500 |
1500*1 05 0MM |
1 4 ±2 (strokes/min) |
<4 5 m |
7.5 kw |
70 00kg |
2 65 0*2 10 0* 200 0mm |
|
ML1600 |
1600*1250MM |
16±2 (strokes/min) |
<43m |
11kw |
11800kg |
2170*2560*2080mm |
|
ML1800 |
1800*1280MM |
1 3 ±2 (strokes/min) |
< 6 0m |
1 1 kw |
14 0 00kg |
2 98 0*2 30 0*2 5 00mm |
