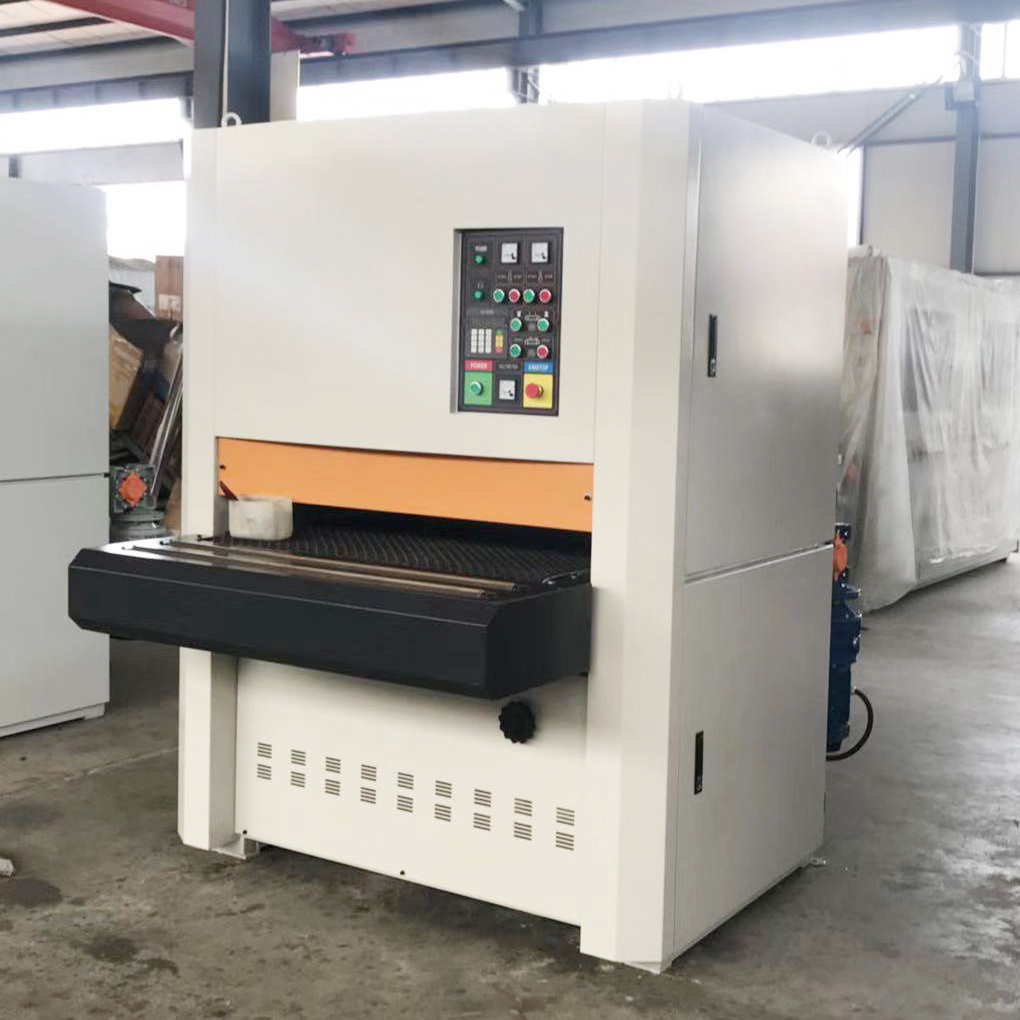

Heavy Duty Automatic Sanding Machine Belt Sander Machine For Wood

R-RP1000 Automatic Woodworking Sanding Machine board sander machine .
This machine can be used to do strong thickness sanding and polishing on various boards such as solid wood doors, veneer board, shaving board, cement board, fibre board, laminated board, frames etc. The machine consists of frame, feeding device, lifting device, electrical device and automatic control device. It has two thickness rollers and one sanding pad. The sanding pad can work independently, making the surface much fine.

Model

R-RP1000

Max.working wideh

1000mm

Min.processing length

500mm

Processing thickness

3-110mm

Converyor speed

6-30/min

Total power

35.37kw

Motor for first unit

18.5kw

Motor for second unit

15kw

Feeding motor

1.5kw

Lifting motor

0.37kw

Diameter for first roller

190mm

Diameter for second roller

190mm

Sand belt size

1020×2000mm

Working pressure

0.6Mpa

Dust collecting

8000m³/h

Outline dimension

1900*1600*2100mm

Weight

2000kg

1. The machine adopts welded steel, after quenching, good stability. Imported conveyor bel, good reliability, durability.

2. The series uses the beam barrel and the beam seat structure, good stability, convenient maintenance.

3. Belt tensioning cylinder adopts cast iron processing, tensile strength is great, good stability.

4. Conveyor belt adjusting cylinder adopts 63*20 cylinder, large power, good stability.

5. Active roll stigmas are bold, and after quenching, ensure the stability and durability of the driving roller.

6. Thickness displaying table using photoelectric sensing head, high precision, good stability under complex environment.

Q: How to get the most suitable machine and best price?
A: Please tell us the material you want to working on? How to work on it Engraving Cutting Or other? What's the MAX size of these material ? length? Width Thickness?

Q: If we donot know how to use the machine, can you teach us?
A: Yes, we will, if you come to China. we will offer you free training until you can use machine freely. And if you are busy we will have the special engineer to your country, but you need tobear some fee like tickets, hotel and meal.

Q: Can you promise to deliver the machine in time?
A: Yes, we can.

Q: How about your guarantee period?
A: Once you have any questions during this time, we will solve it for free.
