Quick Details
-
Cooling Mode:
-
Air-cooling
-
Control Software:
-
EZ CAD
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
OV LASER
-
Marking Head Brand:
-
OV LASER
-
Weight (KG):
-
50 KG
-
Marking Area:
-
110mm*110mm-300*300mm
-
Core Components:
-
laser source
-
Configuration:
-
High configuration
-
Product name:
-
Fiber laser marking machine
-
Laser source:
-
Raycus/JPT/IPG
-
Laser Power:
-
20W/30W/50W/60W/80W/100W(OPTIONAL)
-
Marking Depth:
-
0.015-1mm
-
Marking Speed:
-
≤7000mm/s
-
Working area:
-
110*110mm/150*150mm/175*175mm/200*200mm~300*300mm
-
Marking material:
-
Metal Non-metal
-
Lifespan of laser device:
-
100000hours
-
Cooling system:
-
air cooling
Quick Details
-
Working Accuracy:
-
≤0.001mm
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air-cooling
-
Control Software:
-
EZ CAD
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
OV LASER
-
Marking Head Brand:
-
OV LASER
-
Weight (KG):
-
50 KG
-
Marking Area:
-
110mm*110mm-300*300mm
-
Core Components:
-
laser source
-
Configuration:
-
High configuration
-
Product name:
-
Fiber laser marking machine
-
Laser source:
-
Raycus/JPT/IPG
-
Laser Power:
-
20W/30W/50W/60W/80W/100W(OPTIONAL)
-
Marking Depth:
-
0.015-1mm
-
Marking Speed:
-
≤7000mm/s
-
Working area:
-
110*110mm/150*150mm/175*175mm/200*200mm~300*300mm
-
Marking material:
-
Metal Non-metal
-
Lifespan of laser device:
-
100000hours
-
Cooling system:
-
air cooling

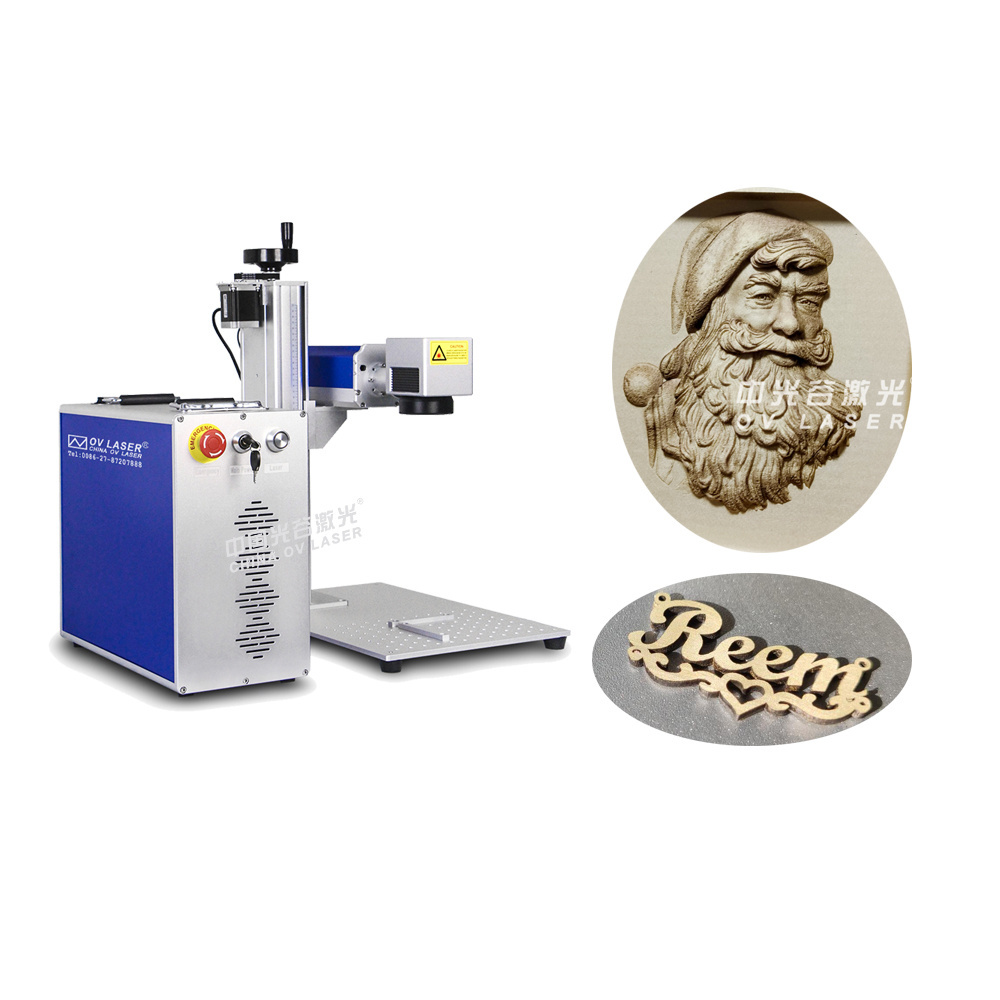

2.5D JPT 60w fiber mopa laser marking machine for metal relief engraving gold silver brass cutting
Welcome to contact Wendy for latest discounts and technical support!
Contact Person: Wendy
WhatsApp: +86 13307107836
Email: sales2(@)86ovlaser.com
Product Description
What is 2.5D and 3D Fiber Laser Marking Engraving Machine?
1)
2.5D fiber laser marking engraving cutting machine
is the upgrading system based on 2D laser. It comes with motorized Z-axis auto focus function and EZCAD 3.0 software for 3D relief engraving function. It is much more economic than 3D
machine.
machine.
2)
3D fiber laser marking engraving cutting machine
adopts 3D dynamic focusing scan head and 3D software. Comparing to ordinary 2D laser machine, ordinary 2D scan head only has two mirrors, but 3D scan head has three mirrors. The third mirror can move forward and backward. This is the key technology of 3D laser marking machine for marking curve surface on metal and partial of non-metal. The outstanding functions of 3D laser marking machine are large-format deep engraving metal, relief engraving coin mold and curve surface marking. 3D machine is with great advantages of high precision mold metal engraving, large size metal plate deep engraving, metal coin relief engraving.
Fiber Laser Marking Engraving Machine Main Parts:
* Laser Source: Raycus / JPT / IPG brand.
* Software: EZCAD 2/ EZCAD 3 from JCZ.
* Laser Power: 30w 50w 60w 80w 100w 120W.
* Marking Area: 70*70mm, 110*110mm, 150*150mm, 175*175mm, 200*200mm, 220*220mm, 300*300mm.
* Galvo Head: Sino-Galvo SG2206/OV8810.
* Column Stand: 50cm / 68cm / 80cm / 100cm.
* Auto Focus: Motorized Z-axis for auto focus.
* Rotary Fixture Available: 69mm, 80mm, 100mm, 125mm, 160mm, 200mm etc.
* More Optional Parts: Vision Position Camera/ Cyclops Camera/ Conveyor Table / Purifier / Electric XY Moving Table.
Fiber Laser Marking Engraving Cutting Machine - Applicable Industry:
1). Jewelry & Accessories: Rings, Pendant, Bracelet, Necklace, Sunglasses, Watches, etc.
2). Electronic Components: Phone, IPAD, Resistors, Capacitors, Chips, Printed Circuit Boards, etc.
3). Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.
4). Electronics: Iphone, IPAD, Ipod, Keyboard and More Standard Parts.
5). Instrument: Panel Board, Nameplates, Precision Equipment, etc.
6). Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.
7). Automobile Parts: Pistons & Rings, Gears, Shafts, Bearings, Clutch, Lights, etc.
8). Handicrafts: Zipper, Key Holder, Souvenir, etc.
9). 3D engraving: coin, mold, jewelry.
Fiber Laser Marking Engraving Machine Main Parts:
* Laser Source: Raycus / JPT / IPG brand.
* Software: EZCAD 2/ EZCAD 3 from JCZ.
* Laser Power: 30w 50w 60w 80w 100w 120W.
* Marking Area: 70*70mm, 110*110mm, 150*150mm, 175*175mm, 200*200mm, 220*220mm, 300*300mm.
* Galvo Head: Sino-Galvo SG2206/OV8810.
* Column Stand: 50cm / 68cm / 80cm / 100cm.
* Auto Focus: Motorized Z-axis for auto focus.
* Rotary Fixture Available: 69mm, 80mm, 100mm, 125mm, 160mm, 200mm etc.
* More Optional Parts: Vision Position Camera/ Cyclops Camera/ Conveyor Table / Purifier / Electric XY Moving Table.
Fiber Laser Marking Engraving Cutting Machine - Applicable Industry:
1). Jewelry & Accessories: Rings, Pendant, Bracelet, Necklace, Sunglasses, Watches, etc.
2). Electronic Components: Phone, IPAD, Resistors, Capacitors, Chips, Printed Circuit Boards, etc.
3). Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.
4). Electronics: Iphone, IPAD, Ipod, Keyboard and More Standard Parts.
5). Instrument: Panel Board, Nameplates, Precision Equipment, etc.
6). Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.
7). Automobile Parts: Pistons & Rings, Gears, Shafts, Bearings, Clutch, Lights, etc.
8). Handicrafts: Zipper, Key Holder, Souvenir, etc.
9). 3D engraving: coin, mold, jewelry.
Specification
|
Product Name
|
Fiber Laser Marking Machine
|
Cooling Mode
|
Air cooling
|
|
Model No.
|
OV SF-30
OV SF-50
OV SF-60
OV SF-80
OV SF-100
OV SF-120
|
Max Marking Speed
|
7000mm/s
|
|
Laser Source
|
Raycus
JPT
IPG
|
Mininum Line Width
|
0.015mm
|
|
Power
|
30W/50W
60W/80W
100W /120W
|
Mininum Character
|
0.2mm
|
|
Laser Wavelength
|
1064nm
|
Pulse Frequency
|
50kHz - 100kHz(Raycus fiber)
1kHZ-60kHz(JPT fiber)
1kHz - 4000kHz (JPT mopa)
|
|
Marking Area
|
70*70mm,
110*110mm,
150*150mm,
175*175mm,
200*200mm,
220*220mm,
300*300mm.
|
Operation Environment
|
Working temperature: 0°-40°.
Storage temperature: -10°-60°.
Humidity: 30% - 85%.
|
|
Power Supply
|
AC110V/220V+10%
50HZ or 60HZ
|
Control Card
|
EZCAD from JCZ
|
|
Operation System
|
Win XP / 7 / 8 / 10
(64 bits)
|
Lifespan
|
80,000-100,000 hours
|
