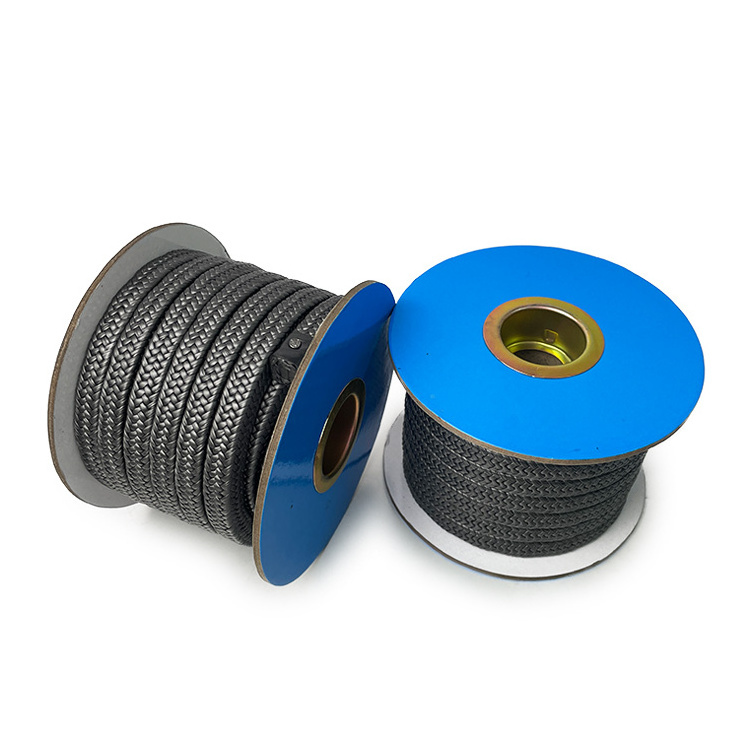

PTFE braided gland packing made of expanded PTFE yarn and graphite
PTFE braided gland packing made of expanded PTFE yarn and graphite
PTFE braided gland packing made of expanded PTFE yarn and graphite
PTFE braided gland packing made of expanded PTFE yarn and graphite
PTFE braided gland packing made of expanded PTFE yarn and graphite
PTFE braided gland packing made of expanded PTFE yarn and graphite
PTFE braided gland packing made of expanded PTFE yarn and graphite
PTFE braided gland packing made of expanded PTFE yarn and graphite

PTFE braided gland packing made of expanded PTFE yarn and graphite

FOB Reference Price: Get Latest Price
≥20 Kilograms
US $9.8
≥200 Kilograms
US $8.8
≥1000 Kilograms
US $8
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Model Number:
PTFE Gland Packing
Product name:
GFO PTFE Graphite gland packing
Material:
ptfe/graphite
Color:
White; black
Package:
PE Plastic Bags
Temperature:
-200 ~ 280℃
Usage:
Valve Sealing Packing
Sample:
Free
MOQ:
5kg
Certificate:
ISO9001
Application:
pump value seal

Quick Details

Size:
6*6~50*50 mm
Place of Origin:
Hebei, China
Brand Name:
HW
Model Number:
PTFE Gland Packing
Product name:
GFO PTFE Graphite gland packing
Material:
ptfe/graphite
Color:
White; black
Package:
PE Plastic Bags
Temperature:
-200 ~ 280℃
Usage:
Valve Sealing Packing
Sample:
Free
MOQ:
5kg
Certificate:
ISO9001
Application:
pump value seal
Detailed Description
Pure PTFE Packing
Introduction: The PTFE packing is made of pure PTFE fiber, without PTFE emulsion and lubricating grease treatment. Because it is made of solid braid and has flexibility and adjustability, it can be well matched with the shaft and stuffing box, and has excellent corrosion resistance, good self-lubrication and anti-sticking.
Size: From 6 x 6 mm to 50 x 50mm.
Packaging: In coils of 5 to 10 kg, other weight on request.
Application: It can be used in chemical, food, medicine, paper, chemical fiber, fine chemical and other fields where pollution is not allowed.
Graphite PTFE Gland Packing
Introduction: PTFE braided (impregnated) packing is made of F4 raw material tape by warp braiding (impregnated), with good chemical stability, good self-lubricating performance, unchanged strength under high temperature and humid environment, easy to load and dismantle.
Size: From 6 x 6 mm to 50 x 50mm. Packaging: In coils of 5 to 10 kg, other weight on request.
Application: It can be used in
chemical, food, medicine, paper, chemical fiber, fine chemical and other fields where pollution is not allowed.

Working temperature
-240°C~280°C
PH Range
0~14
Pressure
27.5 bar/296 bar
Speed
20 m/s
Equipment
rotating & reciprocating equipment, valves, soot blowers, expansion joints
Application Media
chemicals, solvents, corrosives, gases, water, steam, ammonia, air, oils, paper stock, liquor, condensate, boiler feed water
Recommend Products
Gland Packing Extractor Tool
23 tools gland packing extractor tools
Gland Packing Cutter
30°/60°/45° angel available
OEM&ODM
We can provide custom length and label according customer request.
Packing & Shipping
5Kg/Roll, plastic film enveloping for each roll. 4 Roll/carton or wooden case, Fill the gap with bubble paper. Ensure the safety of the long-distance transport. Sample send by DHL, TNT or FedEx etc. Order goods shipped by express, sea transport or as negotiation.
