Quick Details
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1800x 1000mm
-
Cutting Thickness:
-
0.1-20mm
-
Control Software:
-
RUIDA, RDCAM
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TH- LASER
-
Weight (KG):
-
1000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-

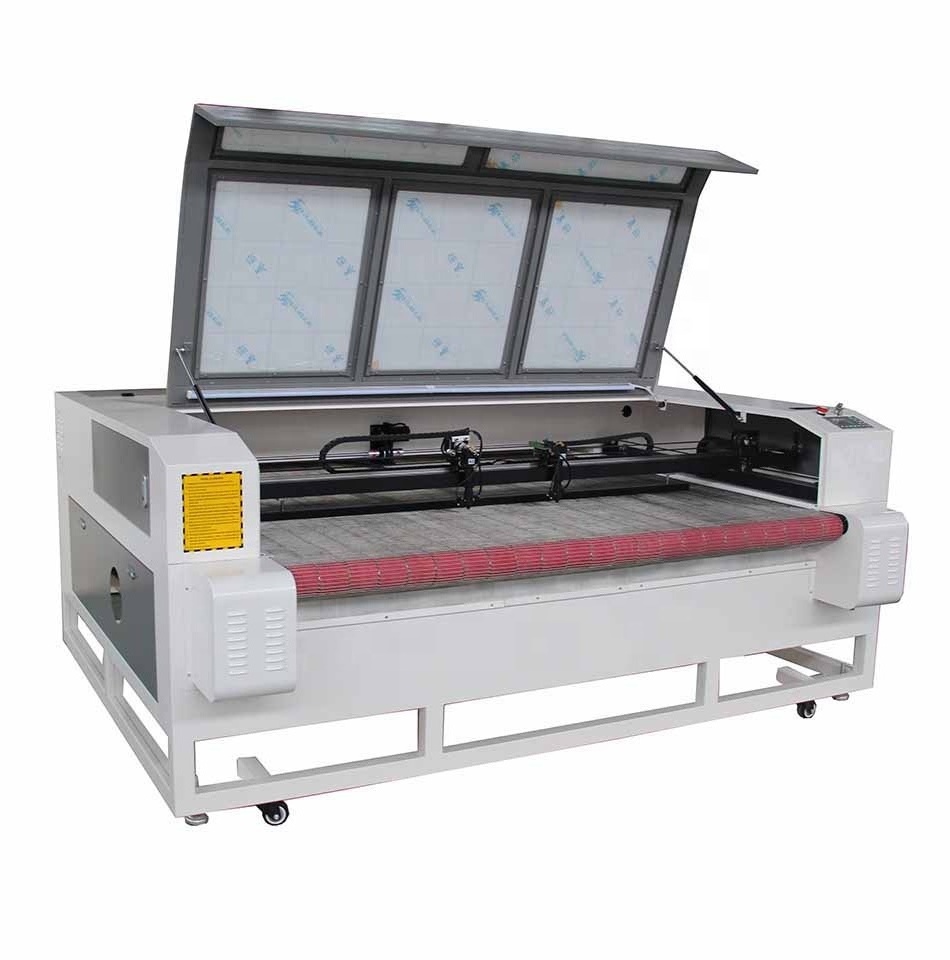

Auto feeding unit garment/cloth/textile/fabrics laser cutting machine
-
Laser power:
-
80W/100W/130W/150W/180W
-
Laser type:
-
CO2 sealed laser tube,water-cooled,10.6um
-
Laser Output:
-
1-100%software setting
-
Resetting positioning accuracy:
-
≤±0.01mm
-
Power supply:
-
AC 110 - 220V ± 10%, 50 - 60Hz
-
Operating temperature:
-
0 - 45°C
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
0-60000mm/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1800x 1000mm
-
Cutting Thickness:
-
0.1-20mm
-
Control Software:
-
RUIDA, RDCAM
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TH- LASER
-
Weight (KG):
-
1000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Auto feeding unit garment/cloth/textile/fabrics laser cutting machine
-
Laser power:
-
80W/100W/130W/150W/180W
-
Laser type:
-
CO2 sealed laser tube,water-cooled,10.6um
-
Laser Output:
-
1-100%software setting
-
Resetting positioning accuracy:
-
≤±0.01mm
-
Power supply:
-
AC 110 - 220V ± 10%, 50 - 60Hz
-
Operating temperature:
-
0 - 45°C
Welcome Everyone To Visite Our Company!!!
Address:
400m West of the Village Committee,Liugudian Village,Hehualu Street, Licheng District,Jinan City,Shandong,China
Tel:
0531-82372595
Fax:
0531-82372595
Product Description
1. Drive system with high precision linear guide and slide block, high precision, wear resistance, small resistance, high speed; arc-gear synchronous belt 3m, stable transmission, strong shock absorption ability and small noise.
2. Red Cross accurate positioning, convenient and quick in finding engraving and cutting position.
3. Three-mirrors and one focal lens path system to deliver outstanding engraving and cutting effect.
4. Equipped with manual modulation focused laser head, responsive and accurate, the machine can adjust the focus position according to engraving and cutting alternation and the material characteristics and thickness of the plank, to ensure sculpture quality.
Specification
|
Modle
|
TH-1810C
|
|
Working Area
|
1800mm*1000mm
|
|
Laser Power
|
60W/80W/100W/130W/150W
|
|
Laser Type
|
CO2 Sealed Laser Tube,10.6um
|
|
Cooling Type
|
Water Cooling
|
|
Engraving Speed
|
0-20000mm/min
|
|
Laser output Control
|
0-100% Set by Software
|
|
Min. Engraving Size
|
Chinese:2.0mm*2.0mm,English Letter:1.0mm*1.0mm
|
|
Scanning Precision
|
2500DPI
|
|
Locating Accuracy
|
-+0.01mm
|
|
Controlling Software
|
DSP Control System
|
|
Graphic Format Supported
|
DST PLT BMP DXF DWG AI LAS,ect.
|
|
Compatible Software
|
TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD,All type of AUTOCAD Software in Cloth
|
|
Color Separation
|
Yes
|
|
Drive system
|
High-precision 3-phase Stepper Motor
|
|
Auxiliary Equipment
|
Exhaust Fan and Air Exhaust Pipe
|
|
Power Supply
|
AC110V/220V,50HZ/60HZ
|
|
Working environment
|
Temperature:0-45℃,Humidity 5-95%(No Condensate Water)
|
|
Option
|
Up and Table,Honeycomb Worktable,Rotary Device,Red Dot Position System,Auto-focus Device
|
Technical Parameters
TH-1810C co2 laser engraving cutting machine on discount!!!
Working area: 1800mm*1000mm
Laser source: Reci/EFR/Yongli
Laser power: 60w 80w 100w 130w 150w
Working area: 1800mm*1000mm
Laser source: Reci/EFR/Yongli
Laser power: 60w 80w 100w 130w 150w
Control Card
Motor
Leadshine
Power
Supply
Reflector
Normal cutting head
This head only can cut and engrave nonmetals.
Multi cutting head
It can cut thin metal like steel,as well as nonmetals.
Control panel
Laser tube
Reci/EFR/Yongli
Water Chiller
CW3000/CW5000/CW5200/CW6000
Using which one depends on the power you use.
Gear
Square tube
Blade working table
Samples
Applicable materials:
Materials such as
acrylic
,
crystal
,
plastic
,
wood
planks(light planks,candle nut wood),
bamboo
ware,
double color board
,
paper
,
leather
,
shell
,
coconut
shell,
ox horn
,
resin animal grease
,
ABS board
,
ceramic
,
la
mp shade
,ect.
Packing & Delivery
Packaging & Shipping
Packing:
Shipping:
Packing:
1.Our wooden case is after fumigation treatment.
2.Needn’t timber inspection,saving shipping time.
3.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.
4.Avoiding all damages that could happen in the delivery process.
Then we’ll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
5.The out most is wooden case with fixed form work.
6.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
2.Needn’t timber inspection,saving shipping time.
3.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.
4.Avoiding all damages that could happen in the delivery process.
Then we’ll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
5.The out most is wooden case with fixed form work.
6.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
Shipping:
Courier shipping / Air shipping / Ocean shipping
Delivery detail:
Delivery detail:
With 7 days after confirmation of your order
