Quick Details
-
Brand Name:
-
LSBC/OEM IKO
-
Model Number:
-
YRT100
-
Place of Origin:
-
China
-
Material:
-
Chrome Steel GCR15
-
Keyword:
-
YRT100 Rotary Table Bearing
-
Package:
-
Standard Package
-
Service:
-
OEM Customized Services
-
Bearing type:
-
YRT100
-
Precision:
-
P5 P4 P6
-
Load direction:
-
Axial Load
-
Application:
-
robots
-
Size:
-
100*185*38mm
-
Market:
-
Global
Quick Details
-
Applicable Industries:
-
Manufacturing Plant, Machinery Repair Shops, Energy & Mining
-
Feature:
-
CROSS ROLLER
-
Seals Type:
-
rubber sealed
-
Brand Name:
-
LSBC/OEM IKO
-
Model Number:
-
YRT100
-
Place of Origin:
-
China
-
Material:
-
Chrome Steel GCR15
-
Keyword:
-
YRT100 Rotary Table Bearing
-
Package:
-
Standard Package
-
Service:
-
OEM Customized Services
-
Bearing type:
-
YRT100
-
Precision:
-
P5 P4 P6
-
Load direction:
-
Axial Load
-
Application:
-
robots
-
Size:
-
100*185*38mm
-
Market:
-
Global
Product Description
Axial Radial Bearing YRT100 (100x185x38mm) Rotary Table Bearing High rigidity slewing turntable bearing
Brand- LSBC or OEM
Model number- YRT100
Inner ring(mm)- 100
Outer ring(mm)- 185
Width(mm)- 38
Weight(Kg)- 4.1
Materials- GCR15/GCR15SiMn
Precision grade- P4/P2
Lubrication type- Grease lubrication
Rotating part- Inner ring/Outer ring
Load direction- Multi-load
Structure- Integrated Inner/Outer Ring,Mounting Hole in Inner/Outer Ring
Brand- LSBC or OEM
Model number- YRT100
Inner ring(mm)- 100
Outer ring(mm)- 185
Width(mm)- 38
Weight(Kg)- 4.1
Materials- GCR15/GCR15SiMn
Precision grade- P4/P2
Lubrication type- Grease lubrication
Rotating part- Inner ring/Outer ring
Load direction- Multi-load
Structure- Integrated Inner/Outer Ring,Mounting Hole in Inner/Outer Ring
YRT50 YRT80 YRT100 YRT120 YRT150 YRT180 YRT200 YRT260 YRT325 YRT395 YRT460 YRT580 YRT650 YRT850 YRT950 YRT1030 YRT1200 bearing
Axial radial bearings YRT are axial and radial combined cylindrical roller bearings, including two thrust needle roller bearing
sand a radial cylindrical roller bearing with the combination of axial and radial preload, For the convenience of transportation
and fixing, two or three symmetrical screws are fastened to the two rings in order to prevent rollers and rings generating
collisions which influence bearing accuracy.
sand a radial cylindrical roller bearing with the combination of axial and radial preload, For the convenience of transportation
and fixing, two or three symmetrical screws are fastened to the two rings in order to prevent rollers and rings generating
collisions which influence bearing accuracy.
|
Bearing Model
|
YRT100
|
|
Application
|
slewing turntable bearing
|
|
Type
|
Crossed Roller Bearing
|
|
Structure
|
Separable Outer Ring Cross Roller Bearing
|
|
(dxDxB)
|
100x185x38mm
|
|
Mass /
|
4.1KG
|
|
Origin
|
china
|
|
Grade
|
P2 P4 P5
|
|
Lead Time
|
Within 3 Days
|
|
WhatsApp / Webchat
|
+86 18710180456
|
|
E
|
sales1at landlionbearing.com
|
Detailed Images

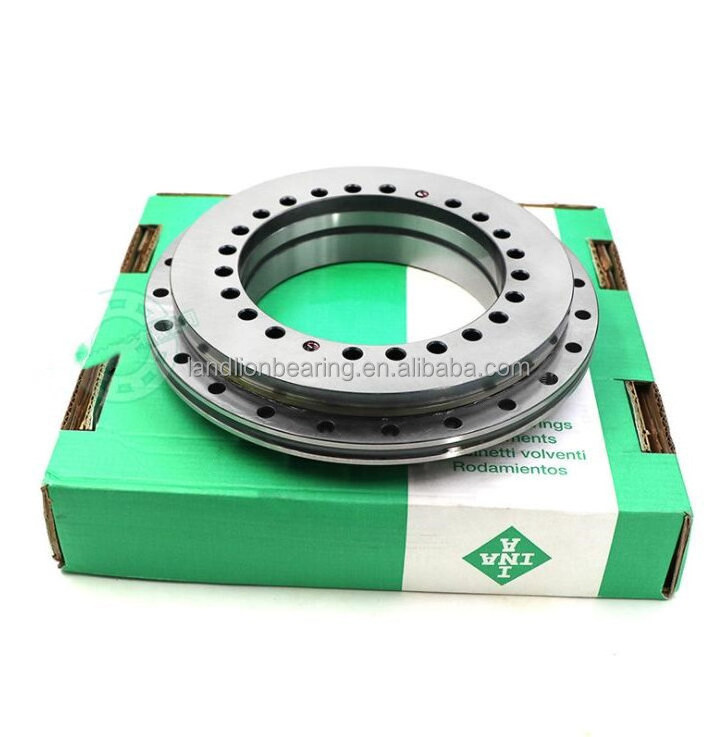

High Load 100x185x38mm Turntable Slewing Ring Bearing YRT100
the other type of crossed roller bearing
|
Bearing Type
|
Dimension
|
|
|
|
|
|
|
|
|
||||||||
|
|
d
|
D
|
H
|
H1
|
H2
|
C
|
d1
|
dn
|
dm
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
Unit：mm
|
|
|
|
|
|
|
|
|
||||||||
|
YRT50
|
50
|
126
|
30
|
20
|
10
|
10
|
105
|
63
|
116
|
||||||||
|
YRT80
|
80
|
146
|
35
|
23.35
|
11.65
|
12
|
130
|
92
|
138
|
||||||||
|
YRT100
|
100
|
185
|
38
|
25
|
13
|
12
|
160
|
112
|
170
|
||||||||
|
YRT120
|
120
|
210
|
40
|
26
|
14
|
12
|
184
|
135
|
195
|
||||||||
|
YRT150
|
150
|
240
|
40
|
26
|
14
|
12
|
214
|
165
|
225
|
||||||||
|
YRT180
|
180
|
280
|
43
|
29
|
14
|
15
|
244
|
194
|
260
|
||||||||
|
YRT200
|
200
|
300
|
45
|
30
|
15
|
15
|
274
|
215
|
285
|
||||||||
|
YRT260
|
260
|
385
|
55
|
36.5
|
18.5
|
18
|
345
|
280
|
365
|
||||||||
|
YRT325
|
325
|
450
|
60
|
40
|
20
|
20
|
415
|
342
|
430
|
||||||||
|
YRT395
|
395
|
525
|
65
|
42.5
|
22.5
|
20
|
486
|
415
|
505
|
||||||||
|
YRT460
|
460
|
600
|
70
|
46
|
24
|
22
|
560
|
482
|
580
|
||||||||
|
YRT580
|
580
|
750
|
90
|
60
|
30
|
30
|
700
|
610
|
720
|
||||||||
|
YRT650
|
650
|
870
|
122
|
78
|
44
|
34
|
800
|
680
|
830
|
||||||||
|
YRT850
|
850
|
1095
|
124
|
80.5
|
43.5
|
37
|
1018
|
690
|
1055
|
||||||||
|
YRT950
|
950
|
1200
|
132
|
86
|
46
|
40
|
1130
|
990
|
1160
|
||||||||
|
YRT1030
|
1030
|
1300
|
145
|
92.5
|
52.5
|
40
|
1215
|
1075
|
1255
|
||||||||
|
YRT1200
|
1200
|
1490
|
164
|
108
|
56
|
52
|
1410
|
1240
|
1445
|
||||||||
|
XRU21040X
|
RU297X
|
210
|
380
|
40
|
156
|
281
|
21.3
|
|
|
||||||||
|
XRU35045
|
RU445
|
350
|
540
|
45
|
222
|
473
|
35.4
|
|
|
||||||||
|
XRU35045G
|
RU445G
|
350
|
540
|
45
|
222
|
473
|
35.4
|
|
|
||||||||
|
XRU35045X
|
RU445X
|
350
|
540
|
45
|
222
|
473
|
35.4
|
|
|
||||||||
Material: GCr15
Axial/Radial runout: 3μm or 1.5μm (Higher running accuracy available upon request)
Lubrication hole: Yes (users can arrange relubrication through the oil holes on outer ring and L-section ring.)
Working temperature: 30℃ ~ +120℃.
Preload: All bearings have been fitted and fully screw mounted already, they are radially and axially clearance-free
and preloaded
Axial/Radial runout: 3μm or 1.5μm (Higher running accuracy available upon request)
Lubrication hole: Yes (users can arrange relubrication through the oil holes on outer ring and L-section ring.)
Working temperature: 30℃ ~ +120℃.
Preload: All bearings have been fitted and fully screw mounted already, they are radially and axially clearance-free
and preloaded
