Quick Details
-
Model Number:
-

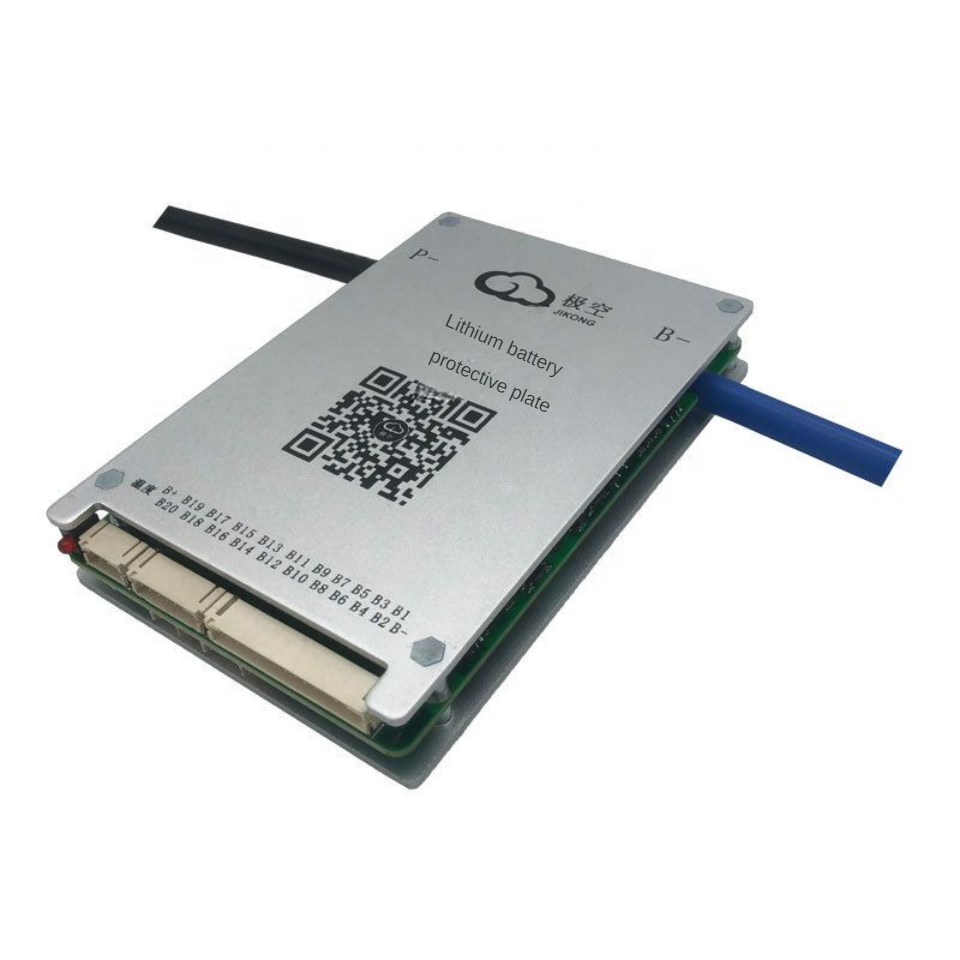

Lithium battery intelligent protection board
-
Place of Origin:
-
Sichuan, China
-
Battery type:
-
Lifepo4/NMC/
-
Usage:
-
Li Ion Lipo Battery Pack
-
Equalization:
-
Active equalization
-
Communication:
-
CAN/RS485 Optional
-
MOQ:
-
1 pcs
Quick Details
-
Brand Name:
-
JIKONG
-
Certification:
-
ISO9001, ISO 45001,ISO 14001
-
Material:
-
ISO9001, ISO 45001,ISO 14001
-
Model Number:
-
Lithium battery intelligent protection board
-
Place of Origin:
-
Sichuan, China
-
Battery type:
-
Lifepo4/NMC/
-
Usage:
-
Li Ion Lipo Battery Pack
-
Equalization:
-
Active equalization
-
Communication:
-
CAN/RS485 Optional
-
MOQ:
-
1 pcs
Installation Instructions
The wiring sequence of the lithium battery protection plate: Note that the wiring of different protection plate manufacturers is not common. Please ensure that the wiring is correct.
1, wiring front ensure that the wiring is not inserted into the protection plate.
2, the line from the black thin line connected with "B-", the second root (next to the black thin line of the red thin
line) connected with the first string of battery positive B1, followed by analogy, finally connected to the total positive battery red thin line.
line) connected with the first string of battery positive B1, followed by analogy, finally connected to the total positive battery red thin line.
3, after connecting the row line, measure the voltage of the two adjacent metal terminals on the back of the row
and plug the three mixture cell should be 3.0V-4.2V, lithium iron should be 2.0V-3.6V, lithium titanate should be 1.6V-2.75V.
and plug the three mixture cell should be 3.0V-4.2V, lithium iron should be 2.0V-3.6V, lithium titanate should be 1.6V-2.75V.
4.Insert the protection plate socket after confirming the wiring sequence and voltage.
5, the protection plate "B-"(blue thick line) is connected to the total negative of the battery,"P-" (black thick line) is connected to the charging negative and discharge
negative.
negative.
|
Specifications
|
Models
|
|
|
|
||||
|
|
JK-BD6A17S4P
|
JK-BD6A17S6P
JK-BD6A20S6P
JK-BD6A24S6P |
JK-BD6A17S8PJK-BD6A20S8P
JK-BD6A24S8P |
JK-B1A8S20P
JK-B2A8S20P |
||||
|
Number of battery strings
|
8-17
|
8-24
|
8-24
|
8
|
||||
|
Equalization
|
Active equalization
|
|
|
|
||||
|
Balance current
|
0.6A
|
|
|
1A
2A
|
||||
|
Main circuit resistance
|
1.3 mΩ
|
1.3 mΩ
|
0.3 mΩ
|
0.3 mΩ
|
||||
|
Continuous discharge current
|
40A
|
60A
|
80A
|
200A
|
||||
|
Maximum discharge current
|
60A
|
100A
|
150A
|
350A
|
||||
|
Overcurrent Protection (adjustable)
|
10～60 A
|
10～100 A
|
10-150A
|
10-350A
|
||||
|
Other interfaces (custom made)
|
RS485
|
RS485
CAN
|
RS485
CAN
|
RS485
CAN
|
||||
|
RS485 module
|
Connect to the GPS interface of the JK protection board. When using the RS485 module, the GPS module is not available.
|
|
|
|
||||
|
24 strings-2.5mm flat cable
|
L=750mm,Applicable to thesemodels:JK-BD6A20S-10P,JK-BD6A24S-10P,JK-BD6A20S-15P,JK-BD6A24S-15P,JK-BD1A20S-15P,JK-B1A24S-15P,JK-B2A24S-15P,JK-B2A24S-20P
|
|
|
|
||||
|
24 strings-2.0mm flat cable
|
L=750mm,Applicable to these models:JK-BD6A17S-6P,JK-BD6A20S-6P,JK-BD6A17S-8P,JK-BD6A20S-8P,JK-BD6A24S-8P
|
|
|
|
||||
|
Product size
(shape size)
|
110.4mm*73mm*17.6mm
|
136mm*83mm*17.6mm
|
136mm*83mm*17.6mm
|
174.77mm*107.26mm*17.6mm
|
||||
|
Package size
|
203mm*145mm*41mm
|
203mm*145mm*41mm
|
203mm*145mm*41mm
|
203mm*145mm*41mm
|
||||
|
Packaging box size
（20 pieces
per box）
|
425mm*300mm*225mm
|
425mm*300mm*225mm
|
425mm*300mm*225mm
|
425mm*300mm*225mm
|
||||
|
Charge and discharge interface： 1 portCell voltage range： 1-5v
Voltage acquisition accuracy： ±5 mV Overcharge protection voltage： 1.2～4.35 V adjustable Overcharge release voltage： 1.2～4.35 V adjustable Overcurrent release time： 2～120S adjustable Over discharge protection voltage： 1.2～4.35 V adjustable Over discharge recovery voltage： 1.2～4.35 V adjustable Number of temperature detections： 3 Temperature protection： YES Short circuit protection： YES Coulomb counter: YES Bluetooth function: Support Android, IOS system GPS (optional)： Support (select one of RS485 and GPS) |
|
|
|
|
||||
