Atex explosion proof fixed Ammonia Gas Detector For Poultry Farm

Atex explosion proof fixed Ammonia Gas Detector For Poultry Farm

FOB Reference Price: Get Latest Price

≥1 Pieces

US $200

≥20 Pieces

US $190

≥50 Pieces

US $180

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Huafan

Model Number:: HFT-NH3(LCD)

Product name:: Fixed ammonia alarm detector

Alarm Type:: Sound and light from alarm lamp(Optional)

Display:: LCD display in English

Signal output:: 4-20mA or RS485

Work voltage:: DC24V

Sensor type:: Electrochemical Method

Measure Range:: 0-200ppm

Resolution:: 1ppm

Certification:: CE,ATEX,CNEX,ISO9001

Quick Details

Type:: Fixed

Warranty:: One year, 1 Year

Place of Origin:: Shaanxi, China

Brand Name:: Huafan

Model Number:: HFT-NH3(LCD)

Product name:: Fixed ammonia alarm detector

Alarm Type:: Sound and light from alarm lamp(Optional)

Display:: LCD display in English

Signal output:: 4-20mA or RS485

Work voltage:: DC24V

Sensor type:: Electrochemical Method

Measure Range:: 0-200ppm

Resolution:: 1ppm

Certification:: CE,ATEX,CNEX,ISO9001

Product Description

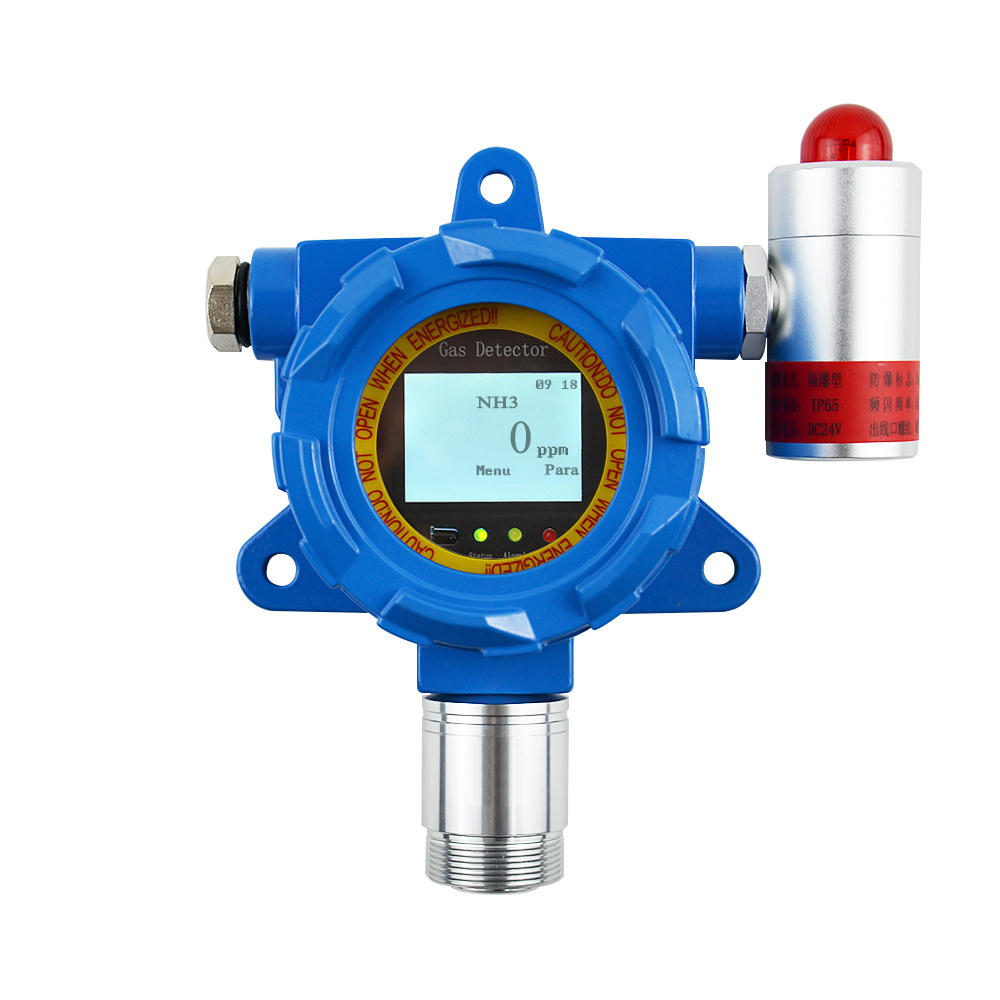

Atex explosion proof fixed Ammonia Gas Detector For Poultry Farm

This fixed ammonia detector uses e lectrochemical imported sensor,test NH3 concentration by natural diffusion model,4-20mA and RS485 two signal output are available.

Brief Introduction:

√ High precision sensor

√ 4-20mA or RS485 signal output

√ DC24V power supply

√ Continuous monitor

√ Sound and light alarm(Optional)

√ IR remote control

√ LCD display in English

√ Support external device connection

√ Modbus RTU is optional

√ Explosion proof,water and dust proof

√ CE,ATEX,CNEX certificates

√ One year warranty

Specification

Product name	Atex explosion proof fixed Ammonia Gas Detector For Poultry Farm
Size and Net weight	144* 190*91mm, about 1335g
Sensor types	Electrochemical type
Destination gas	Ammonia NH3
Measure range	0-200ppm,resolution is 1ppm
Response time	≤30s
Working pattern	continuous work
Working voltage	DC24V
Display	LCD display in English
Alarm type(Optional)	Sound and light alarm from alarm light,need extra 20$ each piece
Output signal	4-20mA or RS485 Modbus RTU, support both at the same time
Temperature &Humidity	- 20 ℃ ~ 50 ℃ 15% ~ 90% RH (No condensation)
Explosion-proof number	CE10 1084
Explosion-proof marks	Exd II CT6
Transmission distance	＜ 1000 m
Certificate	CE, ATEX, CNEX, ISO9001
Standard package	Gas detector, Instruction in English, Certificate, carton package

Installation Instructions

This fixed ammonia gas detector usually uses together with alarm light and control panel,when the gas concentration exceed the alarm points,the light and controller will send out alarms to reminder for danger.

Advantages

1. Imported high precision sensor;

2. Many measurement ranges can be chose;
3. Continuous monitor ammonia concentration in real time;
4. LCD display in English;
5. Support alarm light and gas alarm controller,default without them;
6. Support both 4-20mA and RS485 signal output;
7. MOdbus RTU communication interface is optional,default without it;
8. Support exhaust fan,solenoid valve etc external device connection ;
9. Aluminum shell material with high strength,heat resistance and corrosion resistance;
10. CE ATEX ISO9001 CNEX Explosion proof certificates approved.

Atex explosion proof fixed Ammonia Gas Detector For Poultry Farm

Quick Details

Quick Details

Atex explosion proof fixed Ammonia Gas Detector For Poultry Farm
