Quick Details
-
Production Capacity:
-
100%
-
Place of Origin:
-
China
-
Brand Name:
-
OMC
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
5800*3732*3780mm
-
Weight:
-
4500 kg
-
Product name:
-
5 axis CNC bridge saw cutting machine for granite marble quartz
-
Programming method:
-
Manual or CAD import
-
Control method:
-
CNC
-
R.P.M:
-
1500-6000
-
X axis working stroke:
-
3500mm
-
Y axis working stroke:
-
2000mm
-
Z axis working stroke:
-
400mm
-
A axis working stroke:
-
360 degree free rotation
-
B axis working stroke:
-
0-90 degree chamfer automatically
-
Cutting thickness:
-
100mm
Quick Details
-
Type:
-
Stone Cutting Machine
-
Power:
-
11kw-18.5kw
-
Cutting thickness (max):
-
100mm
-
Production Capacity:
-
100%
-
Place of Origin:
-
China
-
Brand Name:
-
OMC
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
5800*3732*3780mm
-
Weight:
-
4500 kg
-
Product name:
-
5 axis CNC bridge saw cutting machine for granite marble quartz
-
Programming method:
-
Manual or CAD import
-
Control method:
-
CNC
-
R.P.M:
-
1500-6000
-
X axis working stroke:
-
3500mm
-
Y axis working stroke:
-
2000mm
-
Z axis working stroke:
-
400mm
-
A axis working stroke:
-
360 degree free rotation
-
B axis working stroke:
-
0-90 degree chamfer automatically
-
Cutting thickness:
-
100mm

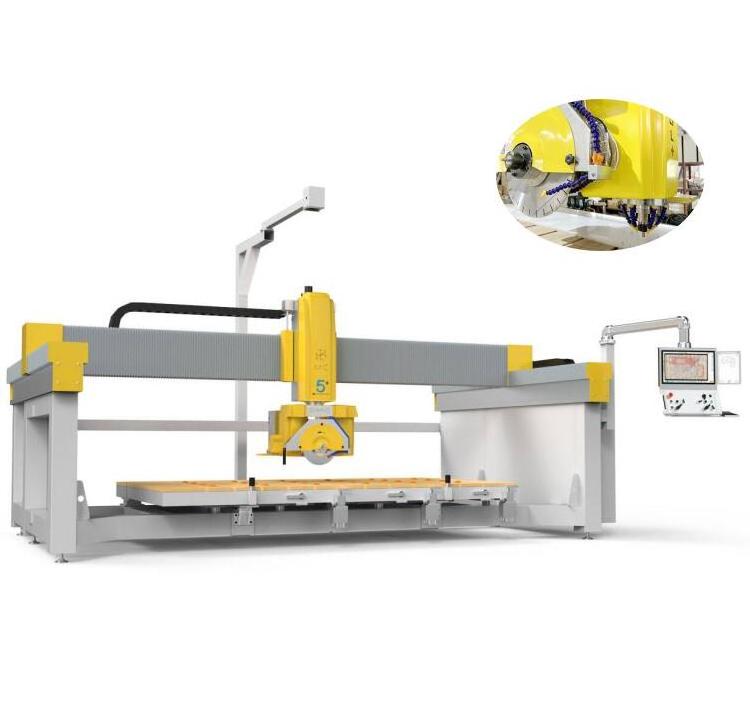

5 AXIS CNC STONE CUTTING MACHINE
TITAN PLUS 5+ is the new generation multi-function processing machine which is associated to be designed and manufactured between OMC and research institute of famous college. With pattern operation and advanced control system and synchronous CNC control system, the machine can be easily operated easily without knowing complicated CNC knowledge.This machine can be used to realize some advanced functions like : cutting line, chamfering, drilling, profiling, 3D profiling, and edge profiling, which can be used to small processing factory and countertop shops.
Characteristic:
1. Powerful 7.5 kW motor with adjustable speed.
2. Full graphic operation with photo typesetting. What you see is what you will get.
3.
Support
cutting, milling, edge grinding, pofling and laser fixed pointing drawing.
4. High processing accuracy by using precise guide rail and rack.
5. With less electricity and more efficiency, the cost is decreased much.
6. High quality accessories and electric parts are used to secure long service life and low cost.
5. With less electricity and more efficiency, the cost is decreased much.
6. High quality accessories and electric parts are used to secure long service life and low cost.
Specification
|
Model
|
TITAN PLUS 5+
|
|
Programming method
|
CAD image input & Manual programming
|
|
Control method
|
CNC
|
|
Power
|
11KW (optional 15KW / 18.5KW)
|
|
Working voltage
|
380V 3phase (customized)
|
|
R.P.M
|
1500-6000r/min
|
|
Blade size
|
400mm
|
|
X-axis working stroke
|
3500mm
|
|
Y-axis working stroke
|
2000mm
|
|
Z-axis working stroke
|
290mm
|
|
A-axis working stroke
|
360° free rotation
|
|
B-axis working stroke
|
0-90°
|
|
X/Y-axis cutting speed
|
1-2000mm/min
|
|
Z-axis cutting speed
|
1-1000mm/min
|
|
A cutting speed
|
0-7r/min
|
|
Cutting thickness
|
100mm
|
|
Processing precision
|
0.2mm
|
|
Working table size
|
3500x2000mm
|
|
Overall size
|
5770*3732*3780mm
|
|
Weight
|
4500KG
|
Product Description
Product Function
Optional Tools
Digital Templating
OMC measuring instrument is specially designed for applications that require accurate dimensional measurement of kitchen countertops, walls, stairs, etc. Compact design, easy to carry and full-featured. It can realize on-site measurement, drawing, dismantling, and quickly generate DXF, or graphics files in our company's special format for five-axis bridge saw, machining center, water jets and other equipment. Truly accurate measurement, precise processing, and dust-free installation.
Packing & Delivery
Outer packaging: Nude packing in one 20'HQ or 40'HQ
