- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Apartment
-
Type:
-
Swing gate opener
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Chisung
-
Model Number:
-
CSSGO-
-
Name:
-
Swing Gate Actuator Electric Swing gate opener
-
Model Number::
-
CSSGO-100
-
Power Supply:
-
AC220V±10V 50/60HZ,AC110V±10V, 60Hz
-
Electric motor:
-
AC220/110V
-
Current:
-
1.5A
-
Absorbeb power of motor:
-
320w
-
Max each leaf length:
-
3.5meters, it is double motors 3.5 meters x 2
-
Max each gate weight:
-
500kg, that is double motors 500kg meters x 2
-
Running time protection:
-
Adjustable
-
Rod's max travel:
-
400mm
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, NONE
-
Project Solution Capability:
-
Others
-
Application:
-
Apartment
-
Type:
-
Swing gate opener
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Chisung
-
Model Number:
-
CSSGO-
-
Name:
-
Swing Gate Actuator Electric Swing gate opener
-
Model Number::
-
CSSGO-100
-
Power Supply:
-
AC220V±10V 50/60HZ,AC110V±10V, 60Hz
-
Electric motor:
-
AC220/110V
-
Current:
-
1.5A
-
Absorbeb power of motor:
-
320w
-
Max each leaf length:
-
3.5meters, it is double motors 3.5 meters x 2
-
Max each gate weight:
-
500kg, that is double motors 500kg meters x 2
-
Running time protection:
-
Adjustable
-
Rod's max travel:
-
400mm
Product Overview
1000kg Swing Gate Actuator Electric AC Rod's Max Travel 400mm Double Arm Auto Swing Door Operator
PRODUCT SPECIFICATIONS
|
Product Name
|
Liner Arm Actuator Electric Piston Swing Gate Openers With Remote Complete Kit
|
|
Model
|
CSSGO-05-1-AC ordinary
|
|
Power Supply
|
AC220V±10V 50/60HZ,AC110V±10V, 60Hz
|
|
Electric motor
|
AC220/110V
|
|
Current
|
1.5A
|
|
Absorbeb power of motor
|
320W
|
|
Max each leaf length
|
3.5meters, it is double motors 3.5 meters x 2
|
|
Max each gate weight
|
500kg, that is double motors 500kg meters x 2
|
|
Motor speed
|
1.6cm/s
|
|
Rotational speed
|
1450RPM
|
|
Thrust
|
3200N
|
|
Running time protection
|
Adjustable
|
|
Rod's max travel
|
400mm
|
|
Auto closing delay time
|
programmable (from 0 to 99 seconds)
|
|
Gate move speed
|
12S/90degrees
|
|
Operating Temperature
|
-20°C~+70°C
|
|
Relative Humidity
|
30%
|
|
Protection class
|
IP45
|
|
Application
|
home automation
|
|
limit switch
|
No
|
|
condenser
|
8F(AC220V),25uf(AC110V)
|
|
Door opening angle
|
90°,100°,110°,120°
|
|
Packing
|
22kg, Together 1 cartons: 830*300*280mm
|
|
Pyment Term
|
Leading Time
|
Minimum Order
|
Supple Ability
|
Package
|
|
T/T; Westuinon
|
5-7 Working days
|
1 Unit
|
10000Unit
|
Paper Carton
|

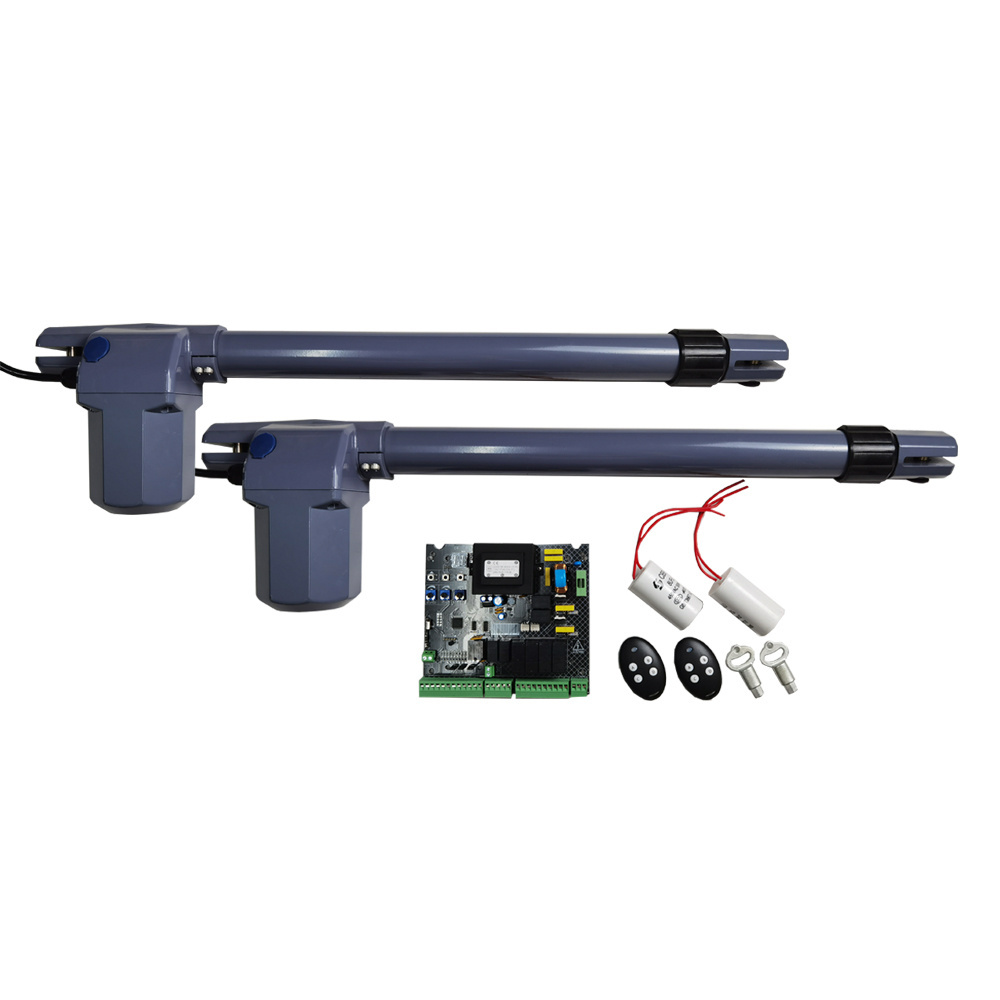

Packing List
Double Swing gate opener standart kit
2 motor + 1 control panel(board+box) + 2 remote control +2 capacitors + others mounting brackets.
Product Display
Product function & Selling points.
1.Open and close the gate by remote control and keypad
2.Soft start/close
3.Emergency release key in case of power failure
4.Dual/Single gate running mode
5.Optional master and slave gate running;
6.Adjustable opening/closing interval between master and slave gate.
7.Stop/Reverse in case of obstruction during gate opening/closing.
8.The force of the motor can be programmed
9.Optional photocell protection .
10.Built in adjustable auto-close (programmable from 0-99 sec)
11.Digital display indicates the running situation and setting menu
12.Reliable electromagnetism limit for easy to adjust.
1.Open and close the gate by remote control and keypad
2.Soft start/close
3.Emergency release key in case of power failure
4.Dual/Single gate running mode
5.Optional master and slave gate running;
6.Adjustable opening/closing interval between master and slave gate.
7.Stop/Reverse in case of obstruction during gate opening/closing.
8.The force of the motor can be programmed
9.Optional photocell protection .
10.Built in adjustable auto-close (programmable from 0-99 sec)
11.Digital display indicates the running situation and setting menu
12.Reliable electromagnetism limit for easy to adjust.
