1.leading Rack Drive, fast, high efficiency, air-speed can reach 35 m / min or more, against the wave plate is carved in
manufacturing can be up to 20 m / min above the speed equivalent to the purchase of 4 -- 5 ordinary type machines.
2. intelligent protection work table: Prevention of misoperation or software errors, and so on the surface may cause
damage.Intelligent processing of cross-border protection: preventing processing format over the layout design of mechanical collision caused the phenomenon.
3. fully in line with international standards: can use any CAD / ArtCAM software and other relief.
4. advanced DSP control handle, control automatically processing multiple levels 3 D. To carry out rapid, smooth 3D processing,carving or cutting. Offline operation can be realized.
5.the overall program structure welding tempering aging treatment, is not strong deformation. Gantry mobile, fixed working table can be arbitrary processing work table material.
6. suitable for a variety of materials processing large quantities of production.
7.Take the water cooling system for marble tool when works for marble ,granite ,stone and so on.
- Product Details
- {{item.text}}
Quick Details
-
Positioning Accuracy (mm):
-
0.01 mm
-
Number of Axes:
-
1
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Hopetool
-
Weight (KG):
-
1200
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
XYZ working area:
-
1300*2500*300mm
-
spindle power:
-
3/5.5KW
-
Spindle speed:
-
0-24000rmp
-
Max velocity:
-
8m/min
-
Operating system:
-
Ncstudio(weihong) or DSP
-
frame:
-
steel tube welded
-
Certification:
-
CE
-
Product name:
-
Marble Cutter Machine
-
Control system:
-
DSP
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
0 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.01 mm
-
Number of Axes:
-
1
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Hopetool
-
Weight (KG):
-
1200
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
XYZ working area:
-
1300*2500*300mm
-
spindle power:
-
3/5.5KW
-
Spindle speed:
-
0-24000rmp
-
Max velocity:
-
8m/min
-
Operating system:
-
Ncstudio(weihong) or DSP
-
frame:
-
steel tube welded
-
Certification:
-
CE
-
Product name:
-
Marble Cutter Machine
-
Control system:
-
DSP
Products Description

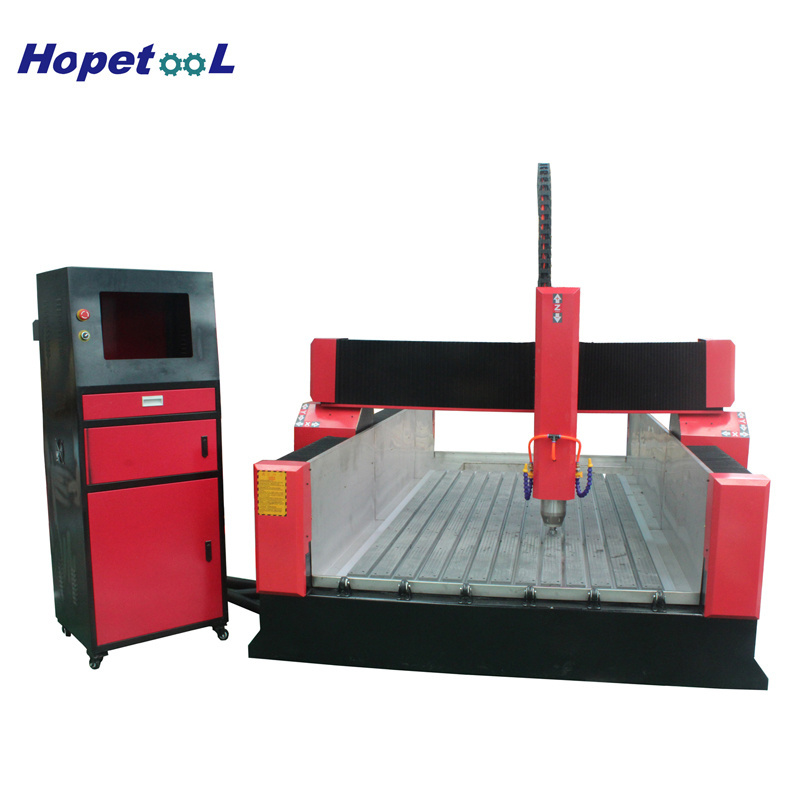

Heavy Stone cnc router granite router cutting machine marble engraving machine 1300*2500mm
Characteristic
Performance Parameter
|
number
|
Description
|
parameter
|
|
1
|
XYZ working area
|
1300*2500*300mm
|
|
2
|
Table size
|
1310*3000mm
|
|
3
|
XYZ travel positioning accuracy
|
±0.01mm
|
|
4
|
XYZ repositioning positioning accury
|
±0.01mm
|
|
5
|
Table surface
|
Aluminum T slot +PVC
|
|
6
|
grantry
|
steel
|
|
7
|
drive system X-Y axis
|
Rack
|
|
8
|
drive system Z axis
|
Ball screw
|
|
9
|
Spindle power
|
3/5.5KW
|
|
10
|
Max velocity
|
50m/min
|
|
11
|
Max working speed
|
25m/min
|
|
12
|
Spindle speed
|
0-24000rmp
|
|
13
|
work mode
|
step(optional servo)
|
|
14
|
Working voltage
|
AC220/380V
|
|
15
|
Command language
|
G code
|
|
16
|
Interface
|
USB
|
|
17
|
Operating system
|
DSP/Mach3/Ncstudio
|
|
18
|
Flash memory
|
128
|
|
19
|
X-Y resolution
|
0.025mm
|
|
20
|
Software environment
|
Wentai type3 artcam
|
|
21
|
Running environment
|
Temperature:0-45°C
|
|
22
|
Paking size
|
3300*1900*1900mm
|
|
23
|
Net weight
|
1300 kg
|
|
24
|
Gross weight
|
1500 kg
|
