Quick Details
-
Voltage:
-
220V
-
Power:
-
370W
-
Dimension(L*W*H):
-
360*310*315mm
-
Weight:
-
17kgs
-
Color:
-
cream
-
Material:
-
steel+ABS
-
Qty.:
-
1pce/ctn
-
N.W:
-
16kgs
-
Package:
-
carton
-
Roller Width:
-
150mm
-
Knife width:
-
2mm+4mm
-
Knife quantity:
-
2
-
Dough thickness:
-
1-3.5mm
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CE certificate
Quick Details
-
Production Capacity:
-
15-20kgs/h
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
(HAIOU)dough flatten machine
-
Voltage:
-
220V
-
Power:
-
370W
-
Dimension(L*W*H):
-
360*310*315mm
-
Weight:
-
17kgs
-
Color:
-
cream
-
Material:
-
steel+ABS
-
Qty.:
-
1pce/ctn
-
N.W:
-
16kgs
-
Package:
-
carton
-
Roller Width:
-
150mm
-
Knife width:
-
2mm+4mm
-
Knife quantity:
-
2
-
Dough thickness:
-
1-3.5mm
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CE certificate

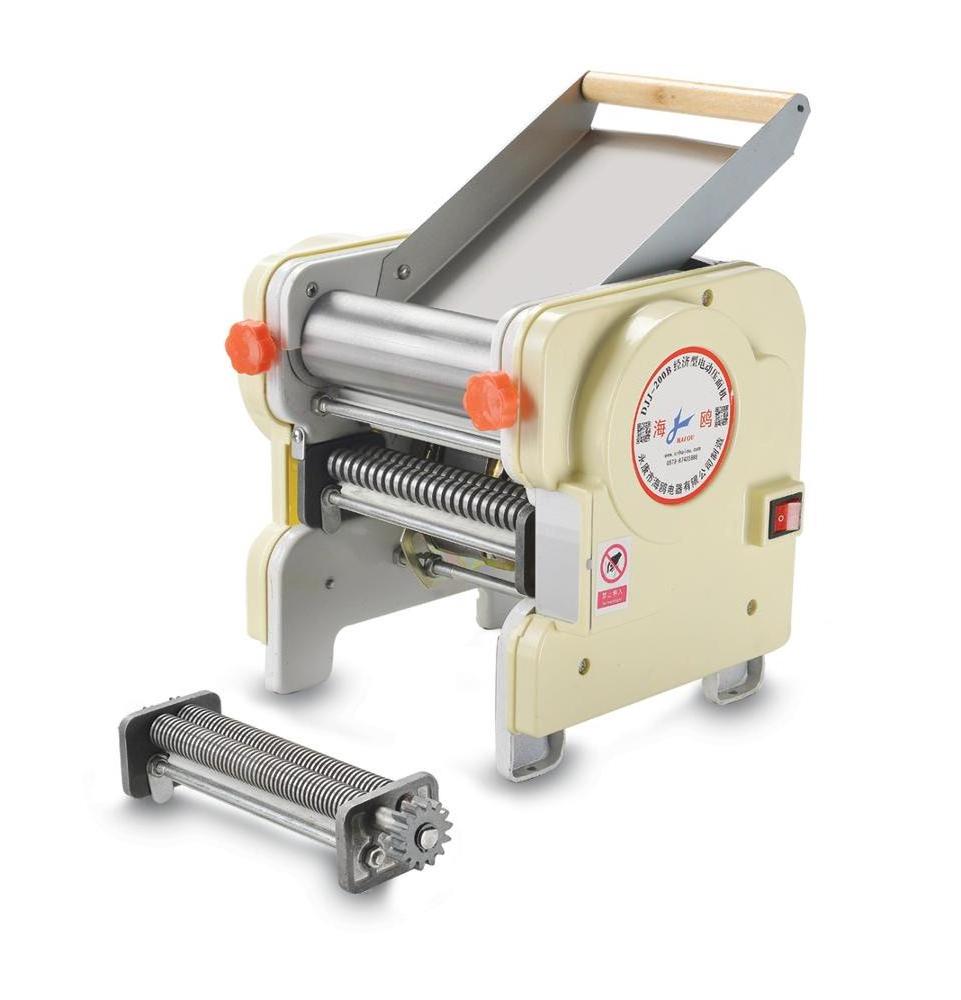

DJJ-160C commercial dough flatten machine frozen puff pastry machine
The newest noodle machine with economic style,
two knives make more choice.
Enjoy high efficiency life!
|
Item No. |
DJJ-200C of dough flatten machine |
DJJ-180C of dough flatten machine |
DJJ-160C of dough flatten machine |
|
Material of dough flatten machine |
steel +ABS |
steel +ABS |
steel +ABS |
|
Roller Material of dough flatten machine |
normal steel or stainless steel |
normal steel or stainless steel |
normal steel or stainless steel |
|
Knife Material of dough flatten machine |
normal steel or stainless steel |
normal steel or stainless steel | normal steel or stainless steel |
|
Capacity of dough flatten machine |
25-30 KGS/H |
20-25KGS/H |
15-20KGS/H |
|
Demension of dough flatten machine |
380*310*315mm |
360*310*315mm |
330*310*315mm |
|
Roller Width |
200mm |
180mm |
150mjm |
| Knife width | 2mm+4mm | 2mm+4mm | 2mm+4mm |
| Power | 370W | 370W | 370W |
|
Pcs/ctn |
1 |
1 |
1 |
|
G.W |
19kgs |
18kgs |
17kgs |
|
N.W |
18kgs |
17kgs |
16kgs |
|
Out package |
Carton |
Carton |
Carton |
|
MOQ |
50pcs |
50pcs |
50pcs |
| service | accept OEM | accept OEM | accept OEM |
Detail photos:
Our company Yongkang Haiou Electric Co.,Ltd s pe cialized in producing noodle machines,dough mixers,meat slicers,etc.
Since 1998,We have nearly 20 years experiences,
Main market :south American,southeast Asia,Africa
Address: NO.1 Tianhe South road shihou industry Area zhiying Town Yongkang city,Zhejiang Province ,China.
Advantages:
Quality is our culture!.
Factory price/OEM/High quality /Wholesale price/fast delivery.
Trade terms:
1) Payment : T/T 30% deposits before production,70% balance to be paid before shipment.
2) Production lead time: 30 days upon desposit.
3) Shipping port : NINGBO/SHANGHAI
Service:
Your kindly attention will be highly appreciated. For any detailed enquiry,
we will ensure you of our best prices, and speedy and professional services
FAQ of dough flatten machine:
|
Problem |
Reason |
Solution |
|
The machine doesn't work once turn on the machine |
1.No noise, switch is broken 2.There is noise inside machine, the electric capacity is broken |
1.Change the switch 2.Change the electric capacity |
|
The dough sheet is not smooth or twine the rollers |
1.The thickness of dough sheet is not the same 2.The dough mixture is so soft 3. Scrap of roller is loosen or out of shape |
1. Regulate the gap between rollers, make the thickness uniform 2.Add some flour and make mixture again. Add some dry flour on both side of dough sheet 3. Regulate knife scrap to make sure there is no space between roller and scrap |
|
The dough sheet is still dirty after long time use |
The scrap fix too tight to the roller |
Loose the screw of the scrap a little bit
|
|
Noise come from knife scrap |
There is space between roller and scrap. |
Fasten screw of the scrap, keep scrap close to the roller |
|
There are scratches or rust on the roller |
1.Roller is injured by hard object. 2.Machine is not used for long time or improper maintenance |
Polish roller surface with emery cloth in rotation direction after turn off the power |
|
Noodle is not made smoothly or a lot of dough stick on the knife |
1.Dough sheet too wet 2.The scrap of knife is loosened |
1.Regulate the humidity of the mixture and add some dry flour on both side of dough sheet 2. Fasten screw of scrap of knife |
WHY CHOOSE HAIOU?
Professional food machinery manufacturers with nearly 20 years history.
Environment-friendly materials and technology.
One stop sourcing on all food machinery machine.
24 hours technical supports and after sales services.
Customized services, strong OEM capability available.
Welcome to contact us!
