Quick Details
-
Name:
-
water well screen cylinder/wedge wire screen water tank filter
-
Certification:
-
ISO certification
-
Material:
-
stainless steel/carbon steel
-
Grade:
-
SS 304/316 or carbon steel
-
OD:
-
33-600mm
-
wire size:
-
1.5*2mm,2.2*3.5,3*5,3.2*4,as client require
-
Rod size:
-
2*3*22,3.8*32,3.8*42,3.8*52,as client require
-
Slot size:
-
0.2-6mm or produce as client require
-
Surface treatment:
-
galvanized or painting as client require
-
End connection:
-
STC,LTC,BTC thread/welded
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HUADONG SCREEN
-
Model Number:
-
HDZG-107C
-
Name:
-
water well screen cylinder/wedge wire screen water tank filter
-
Certification:
-
ISO certification
-
Material:
-
stainless steel/carbon steel
-
Grade:
-
SS 304/316 or carbon steel
-
OD:
-
33-600mm
-
wire size:
-
1.5*2mm,2.2*3.5,3*5,3.2*4,as client require
-
Rod size:
-
2*3*22,3.8*32,3.8*42,3.8*52,as client require
-
Slot size:
-
0.2-6mm or produce as client require
-
Surface treatment:
-
galvanized or painting as client require
-
End connection:
-
STC,LTC,BTC thread/welded
2016 new water well screen cylinder/wedge wire screen water tank filter
Proudcts speficications
|
Nominal
|
Pipe
|
Weight
[mm] |
Hole size
|
Holes per foot |
Total
|
Screen
|
Open area of screen in2/ft
|
|||
|
0.008” |
0.012” |
0.015” |
0.020” |
|||||||
|
2-3/8 |
60 |
4.6[4.83] |
3/8 |
96 |
10.60 |
2.86 |
12.68 |
17.96 |
21.56 |
26.95 |
|
2-7/8 |
73 |
6.4[5.51] |
3/8 |
108 |
11.93 |
3.38 |
14.99 |
21.23 |
25.48 |
31.85 |
|
3-1/2 |
88.9 |
9.2[6.45] |
1/2 |
108 |
21.21 |
4.06 |
18.00 |
25.50 |
30.61 |
38.26 |
|
4 |
101.6 |
9.5[5.74] |
1/2 |
120 |
23.56 |
4.55 |
20.18 |
28.58 |
34.30 |
42.88 |
|
4-1/2 |
114.3 |
11.6[6.35] |
1/2 |
144 |
28.27 |
5.08 |
15.63 |
22.53 |
27.35 |
34.82 |
|
5 |
127 |
13[6.43] |
1/2 |
156 |
30.63 |
5.62 |
17.29 |
24.92 |
30.26 |
38.52 |
|
5-1/2 |
139.7 |
15.5[6.99] |
1/2 |
168 |
32.99 |
6.08 |
18.71 |
26.96 |
32.74 |
41.67 |
|
6-5/8 |
168.3 |
24[8.94] |
1/2 |
180 |
35.34 |
7.12 |
21.91 |
31.57 |
38.34 |
48.80 |
|
7 |
177.8 |
23[8.05] |
5/8 |
136 |
42.16 |
7.58 |
23.32 |
33.61 |
40.82 |
51.95 |
|
7-5/8 |
194 |
26.4[8.33] |
5/8 |
148 |
45.88 |
8.20 |
25.23 |
36.36 |
44.16 |
56.20 |
|
8-5/8 |
219 |
32[8.94] |
5/8 |
168 |
51.08 |
9.24 |
28.43 |
40.98 |
49.76 |
63.33 |
|
9-5/8 |
244.5 |
36[8.94] |
5/8 |
188 |
58.28 |
10.18 |
31.32 |
45.15 |
54.82 |
69.77 |
|
10-3/4 |
273 |
45.5[10.16] |
5/8 |
209 |
64.79 |
11.36 |
34.95 |
50.38 |
61.18 |
77.86 |
|
13-3/8 |
339.7 |
54.5[9.65] |
5/8 |
260 |
80.60 |
14.04 |
37.80 |
54.93 |
66.87 |
85.17 |

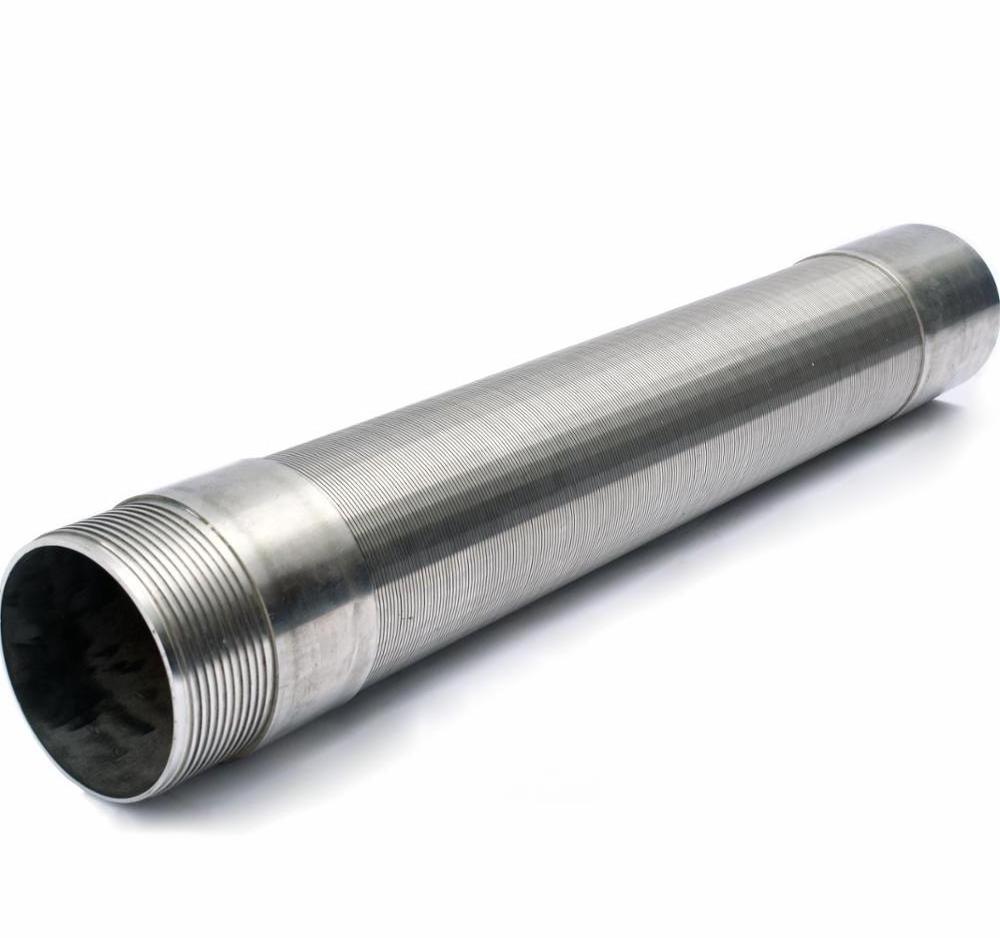

Product show
2016 new water well screen cylinder/wedge wire screen water tank filter
Packing and delivering
Single with bubble bags and then put into wooden cases(fumigation certificate). Each case is clearly marked with:
Name & identification mark of manufacturer- Huadong Brand Johnson screens
Batch number
Date of manufacture
Safe heating & application temperature
