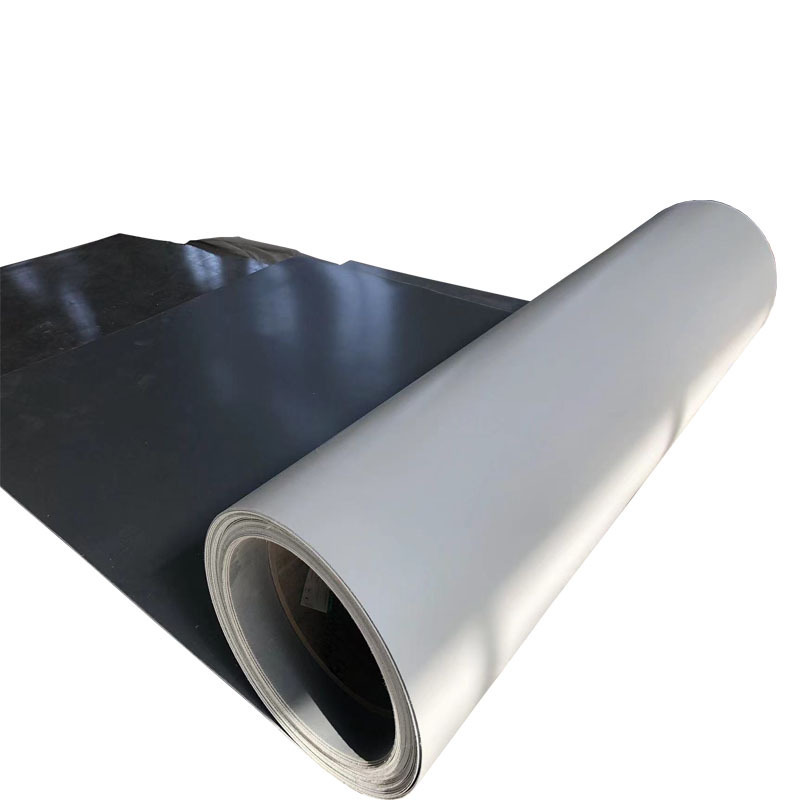

insulated frp smooth exterior wall side panel fibreglass reinforced gel coated sheet for Refrigerated box truck trailer caravan

insulated frp smooth exterior wall side panel fibreglass reinforced gel coated sheet for Refrigerated box truck trailer caravan

FOB Reference Price: Get Latest Price

≥399 Square meters

US $10.5

≥400 Square meters

US $4.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Carryman

Model Number:: CN901

Surface Treatment:: Gelcoat

Product name:: fibreglass reinforced gel coated sheet

Thickness:: 1.0-3.0mm

Length:: 120m In Roll Or Customised

Colors:: RAL-scale Or Customised

Material:: FRP Resin Fiberglass

Surface:: Glossy/ 50% Glossy/Embossing

Advantage:: Stress Corrosion Resistance Etc

MOQ::: 200㎡

packing:: with a removable plastic film

backside:: can be sanded

Quick Details

Application:: Construction

Technique:: Once-shaping machining sheet

Place of Origin:: Shandong, China

Brand Name:: Carryman

Model Number:: CN901

Surface Treatment:: Gelcoat

Product name:: fibreglass reinforced gel coated sheet

Thickness:: 1.0-3.0mm

Length:: 120m In Roll Or Customised

Colors:: RAL-scale Or Customised

Material:: FRP Resin Fiberglass

Surface:: Glossy/ 50% Glossy/Embossing

Advantage:: Stress Corrosion Resistance Etc

MOQ::: 200㎡

packing:: with a removable plastic film

backside:: can be sanded

Product Introduction

What is FRP sheet

Also known as GRP sheet, which full name is fiberglass reinforced polyester (plastic) sheet., with gel coated. As a new material, Greater than that of steel products and aluminum products in specific tenacity. Products in the ultra-low temperature or high temperature will not happen brittle fracture, deformation and to prevent heat transfer.

For that, FRP is widely used in so many industry. Such as bus/coach outer skin, Wall decorate cover, refrigerated truck body, RV/motor homes side panel, Refrigerator compartment wall etc.

FRP SHEETS

1) High mechanical strength

2) Roughness surface and easy to clean
3) Corrosion resistance, wear resistance
4) High temperature resistance5) Excellent insulation properties
Learn More

FRP (glass fiber reinforced plastic) is a composite material formed by composite processing of synthetic resin and glass fiber.

As a new type of material, FRP sheets have replaced traditional metal materials in many fields.

Information
Width:	≤3.2m
Thickness:	1.0-3.0mm
Length:	Customized
Surface:	Smooth or embossed
Color:	White, black, green, yellow, customized

* Surface (Gel-coat)

The high-quality gel coat improves the UV resistance and color durability of the material, and at the same time increases the gloss of the panel surface, so that the surface will not have problems such as pores, cracks, scratches, etc., resulting in a very beautiful and eye-catching appearance. Gelcoats are also more resistant to corrosion and can be cleaned.

* Middle (Fiberglass)

Fiberglass mat or fiberglass fabric has stronger bonding force with resin, is more soluble in styrene, and endows the product with the characteristics of high strength, light weight and good toughness. Good impact resistance properties are also well represented.

* Back Side (Resin)

The substrate surface of the FRP panel is flat, and clean, with no air hole, no crack, no scratch, and adhesion is better.

Product Application

Workshop Show

Shandong Carnyman Auto Tech Co, Ltd. approved by the Ministry of Industry and Information Technology of China since 2012, is a backbone enterprise in North China to produce various truck bodies. It is also a development and production base for refrigerated truck bodies, insulated truck bodies, van type truck bodies, drop side cargo box bodies, trailer bodies and other special vehicle bodies. The annual output is more than 50000 sets. At present, Carmyman Auto Tech has a manufacturing area of 5000 square meters, with more than 50 people, including 3 senior engineers, strong technical force, efficient R&D and production capacity, advanced production equipment, high specialization and perfect detection means. We focus on export. We have designed more professional packaging and transportation to reduce damage during transportation and realize zero welding assembly of truck bodies.

FAQ

Q1: WHAT'S THE PAYMENT TERMS?

A： 30% T/T as deposit, balanced before shippment arranged. We'll show you the photos of the products and packages before you pay the balance. T/T L/C We stem Union acceptable...other way can be negotiated

Q2 : WHAT ABOUT YOUR DELIVERY TIME? CAN WE RECEIVE THE GOODS ON TIME?
A：Usually around 3-5 weeks after order confirmed. it also depends on the total quantity of your order. During the production processa. we will report the production progress to you at any time.
Q3 : HOW CAN I GET A SAMPLE FROM YOU FOR QUALITY CHECKING ?
A ： Kindly provide us your technical details, then we will offer sample as your
specitication. another way Is to send your samples to us, we will make a counter sample for you within one week .
Q4 : DO YOU SUPPORT CUSTOMIZED PRODUCTS?
A： Yes, if you want to buy the product without any idea, we could recommend you some products according to your application, if you have your own idea, tell us, any thought acceptable, we'll try our best.
Q5 : HOW DO YOU MAKE OUR BUSINESS LONG-TERM AND GOOD RELATIONSHIP?
A： We keep good quality and competitive price to ensure our customers benefit, We respect every customer as our friend and sincerely do business and make friends with them, no matter where they come from.
