Quick Details
-
Drilling Speed:
-
0-312rpm/min
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
MRCM
-
Model Number:
-
MR-DS16
-
Voltage:
-
220V/50hz
-
Dimension(L*W*H):
-
72*66*15cm
-
Power (kW):
-
0.6
-
Weight (KG):
-
30 KG
-
Motor:
-
Servo motor
-
Driving mode:
-
Gear
-
Power:
-
600W
-
Working Radius:
-
1000mm
-
Type:
-
Electric tapping machine
-
Working direction:
-
Universal/ Vertical
-
Color:
-
Yellow and Black
-
Keyword:
-
tapping machine
-
Machine type:
-
CNC Servo Auto
-
Weight:
-
30KG
Quick Details
-
type:
-
Column Drilling Machine
-
Max. Drilling Dia. (mm):
-
16 mm
-
Range of Spindle Speed(r.p.m):
-
1 - 312 r.p.m
-
Drilling Speed:
-
0-312rpm/min
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
MRCM
-
Model Number:
-
MR-DS16
-
Voltage:
-
220V/50hz
-
Dimension(L*W*H):
-
72*66*15cm
-
Power (kW):
-
0.6
-
Weight (KG):
-
30 KG
-
Motor:
-
Servo motor
-
Driving mode:
-
Gear
-
Power:
-
600W
-
Working Radius:
-
1000mm
-
Type:
-
Electric tapping machine
-
Working direction:
-
Universal/ Vertical
-
Color:
-
Yellow and Black
-
Keyword:
-
tapping machine
-
Machine type:
-
CNC Servo Auto
-
Weight:
-
30KG
ping Machine

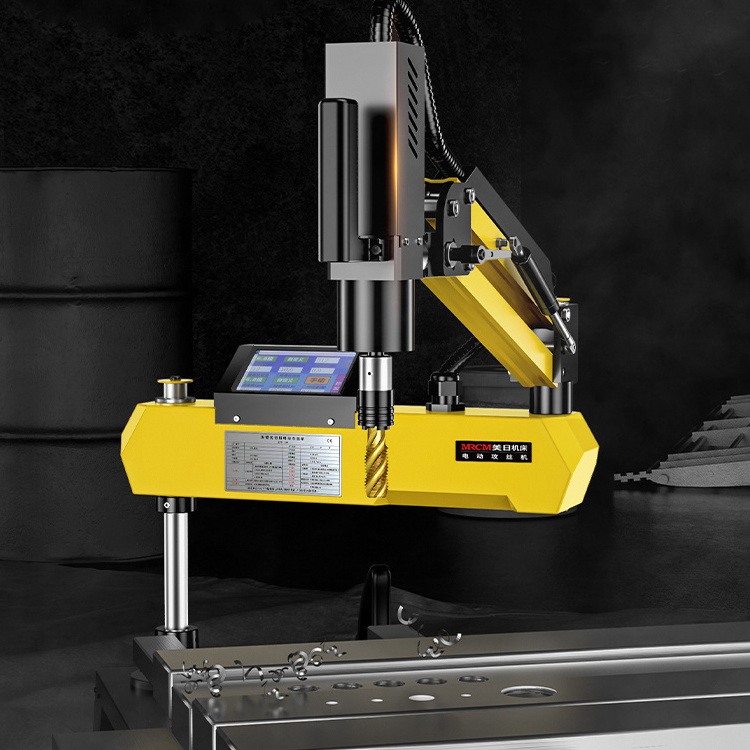

1, the machine adopts servo drive control, with intelligent torque protection, instead of the traditional lathe, drilling machine or manual tapping limitations.
2, advanced mechanical design, a variety of processes using mold castings, the overall rigidity is strong, durable, non deformation, beautiful appearance.
3. The high definition touch screen is simple and flexible. It can realize the vertical and horizontal work of complex and heavy workpiece, locate quickly, and process accurately.
4, stepless speed change, manual, automatic, linkage three modes of work, whatever you choose.
5, automatic mode can effectively control the depth of tapping, without the operation button, automatic control by depth controller.
6, repeated positioning fast, tapping speed, high production efficiency.
Specification
| Vertical(Universal) electric tapping machine | |||||||
| Modle | MR-DS12 V/U |
MR-DS16V/U
|
MR-DS20V/U | MR-DS 24 V/U | MR-DS 30 V/U | MR-DS 36 V/U | MR-DS 42 V/U |
| Tap size | M2-M12 | M3-M16 | M3-M20 | M6-M24 | M6-M30 | M6-M36 | M12-M48 |
| Power | 220V/110V | 220V/110V | 220V/110V | 220V/110V | 220V/110V | 220V/110V | 220V/110V |
| Speed | 0-1000rmp/min | 0-312rmp/min | 0-250rpm/min | 0-200rpm/min | 0-200rpm/min | 0-150rpm/min | 0-90-20 0 rpm/min |
| Voltage | 600W | 600W | 600W | 1200w | 1200W | 1200W | 1200W |
| Horizontal stretch | 1100MM | 1100MM | 1100MM | 1100MM | 1100MM | 1100MM | 1300MM |
| Vertical stretch | 380mm(adjustable) | 380mm(adjustable) | 380mm(adjustable) | 520 mm(adjustable) | 520 mm(adjustable) | 520 mm(adjustable) | 750 mm(adjustable) |
| G.W.: | 27kg | 32KG | 32KG | 50KG | 50KG | 50KG | 132KG |
Details:
Optional accessories:
| Collect | Super sucker | Table |
EXPORTING PACKAGE, SAFE AND STABLE
