Quick Details
-
Voltage:
-
DC24V/5A
-
Power:
-
120W
-
Accuracy:
-
XY Axis:0.0025mm Z Axis:0.0025mm
-
Gross Weight:
-
21kg
-
Dimension:
-
305(W)X 300(H) X 400(D)mm
-
Temperature Range:
-
0-40°
-
Spindle Speed:
-
12000+Rpm
-
Usage:
-
Auto/Residential/Commercial Keys
-
Humidity Range:
-
10-90%
Quick Details
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
KUKAI
-
Model Number:
-
Alpha Pro
-
Voltage:
-
DC24V/5A
-
Power:
-
120W
-
Accuracy:
-
XY Axis:0.0025mm Z Axis:0.0025mm
-
Gross Weight:
-
21kg
-
Dimension:
-
305(W)X 300(H) X 400(D)mm
-
Temperature Range:
-
0-40°
-
Spindle Speed:
-
12000+Rpm
-
Usage:
-
Auto/Residential/Commercial Keys
-
Humidity Range:
-
10-90%

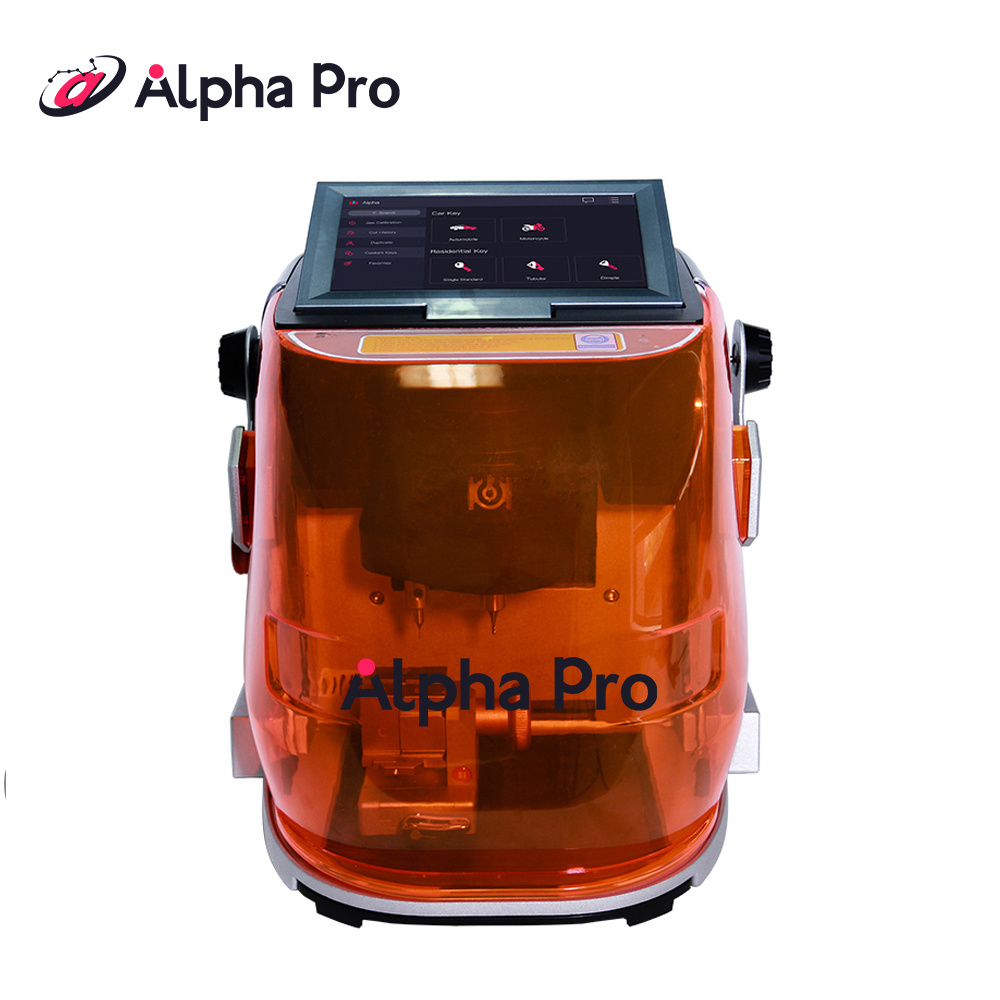

Lockpick Key Duplicating Machine Automatic Key Cutting Support To Cut Mul t Lock Keys
Alpha Pro key cutting machine specification
| Power consumption | 120W |
| Weight | 16kg |
| Resolution | X Y Axis:0.005mm, Z Axis;0.0015mm |
| Spindle Revolution | 12000+rpm |
| Temperature | 0-40c |
| Humidity | 10-90% |
| Usage | Automobile Key ,house keys,Motorcycle keys,Dimple keys,Tubular keys, blade creating keys |
| Key Cutting Types | for Both Car Keys and Home Keys |
| Warranty | 24 months |
Advantage of Alpha Pro
- New jaw and cutting system, better compatible with folding keys and smart card small keys, more convenient and versatile;
- Latest original jaw design, to support to directly cut Volkswagen Audi HU162T key and Toyota& Lexus TOY2 key, no need small jaws ;
- The first automatic key cutting machine that support to check missing teeth of ignition lock for HU162T through teeth numbers of door lock, and vice versa, greatly improving the work efficiency for locksmith;
-
Some optional jaws for your choice, including
house key jaw, FO21 key jaw, tubular key jaw and engraving jaw
;
- Graphic display of each key.
-
Blade creating function
1.) Create key head: convert regular keys into flip keys for use with the universal remotes (2.0mm cutter);
2.) Create the width and thickness of metal keys (2.0mm cutter);
3.) Create circle on key head ( optional 2.5mm cutter );
4.) Left groove (2.0mm cutter);
5.) Right groove (2.0mm cutter);
6.) Create key tip (2.0mm cutter);
7.) Toyota 80k series from 40k series key (2.0mm cutter);
8.) Create middle groove on key side ( optional 1.0mm cutter ).
-
Support to export and import data
You can select to export the data under Cut history, favorite or/and customer keys to USB disk according to your needs
You can import the exported data to the re-downloaded APP and when to you us
1.) Before delete and e-downloaded APP, such as change Android screen
2.) Share data to other persons
-
Support to cut Non-conductive keys
Take HU66-ID:909(bitting number:33431222) as an example
Note: if you don’t have bitting number, you can login the serial number and code of your Alpha Pro machine to APP and try to use” Photograph ” function to decode.
-
Engraving text or image on a key, customized personalized logo
- Decoding by photo, and get bitting number via original keys picture and cut a key directly
-
Five-star after-sales and technical support
Feature of Alpha Pro
- Support to cut automobile,Chinese car,residential,dimple & tubular keys etc.
- Adopted high-precision ballscrew for X, Y & Z axis,bringing higher repetitive positioning accuracy.
- Adopted DC brushless motor for Z axis to control cutter directly,bring higher cutting precision and lower noise.
- Portable for mobile , easy to work outside
- Equipped with tool box to place decoder, cutter, calibration block etc.
Feature of software
Support to directly cut a key by key code
Support to cut a new key when the original key is lost
Support to custome keys
Support to query out 2-3 key numbers of ignition through known key numbers of door lock
Special feature:
Support to duplicate keys without key data in database
Including single standard keys, double standard keys, single external groove keys,double external groove keys,internal groove keys & tubular keys
How to duplicate keys by Alpha Pro
