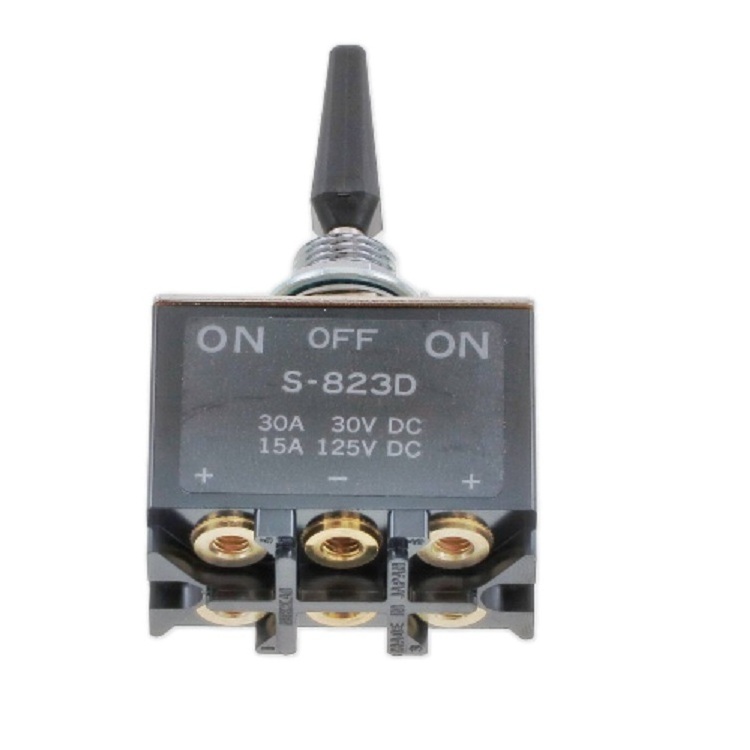

30A DC 12mm 3 position 2-way pole NKK S823D heavy duty Flatted toggle switch S-823D

30A DC 12mm 3 position 2-way pole NKK S823D heavy duty Flatted toggle switch S-823D
high capacity models with ratings ranging 30A @ 48V DC.30A @ 30V DC. 125 VDC
S833D Sturdy construction with high torque bushings and zinc plated steel covers.
The 12mm bushing is designed for panel mount applications;
mounting hardware is included with each switch.
Circuit poles : DPDT ;
Switch function : ON-OFF-ON
Contact Resistance : ≤10 mΩ
rated voltage : DC30V
rated current : 30A
Insulation Resistance : ≥ 1,000 MΩ @ 500V DC
Dielectric Strength: 2,000V AC minimum for 1 minute minimum
Mechanical Life: 50,000 operations minimum
Electrical Life: 10,000 operations minimum for S800Ds
25,000 operations minimum for S800s & S732
Materials & Finishes
Toggle: Brass with chrome plating
Bushing: Brass with chrome plating
Case: melamine phenol for S800s
Case Cover: Steel with chromate plating over zinc plating
Movable Contactor Plate: Copper with silver plating
Movable & Stationary Contacts: Silver alloy capped on copper with silver plating
Common Terminals: Brass
Contact Terminals: Brass with silver or nickel plating
Environmental Data
Operating Temp Range: -10°C ~ +70°C (+14°F through +158°F)
Installation
Mounting Torque: 2.94Nm (26 lb in) for double nut
panel cut : 12.5 mm dia
Maximum Panel Thickness : 4.5mm
Actuator Length : 27.00mm
Case of heat resistant resin meets UL 94V-0 flammability standard
provides high arc and insulation resistance.
Varied design of contact mechanisms in these models assures long life.
screw lug terminals.
Standards & Approvals : CSA,UL
Dimensions : 43 x42 x 73 mm
Available :
S-821 , S821
S-821D , S821D
S-821UL , S821/U
S-821UL , S821/U
S-822 , S822
S-822-48A , S822/328
S-822D , S822D
S-823 , S823
S-823D , S823D
S-831 , S831
S-831D , S831D
S-831-E1E , S831/UC
S-832 , S832
S-833D , S833D
S-8AW , S8AW
S-8AW/B , S8AWB
